Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> Radio, Stereo and Compact Disc >> Standard/Premium Sound

Standard/Premium Sound

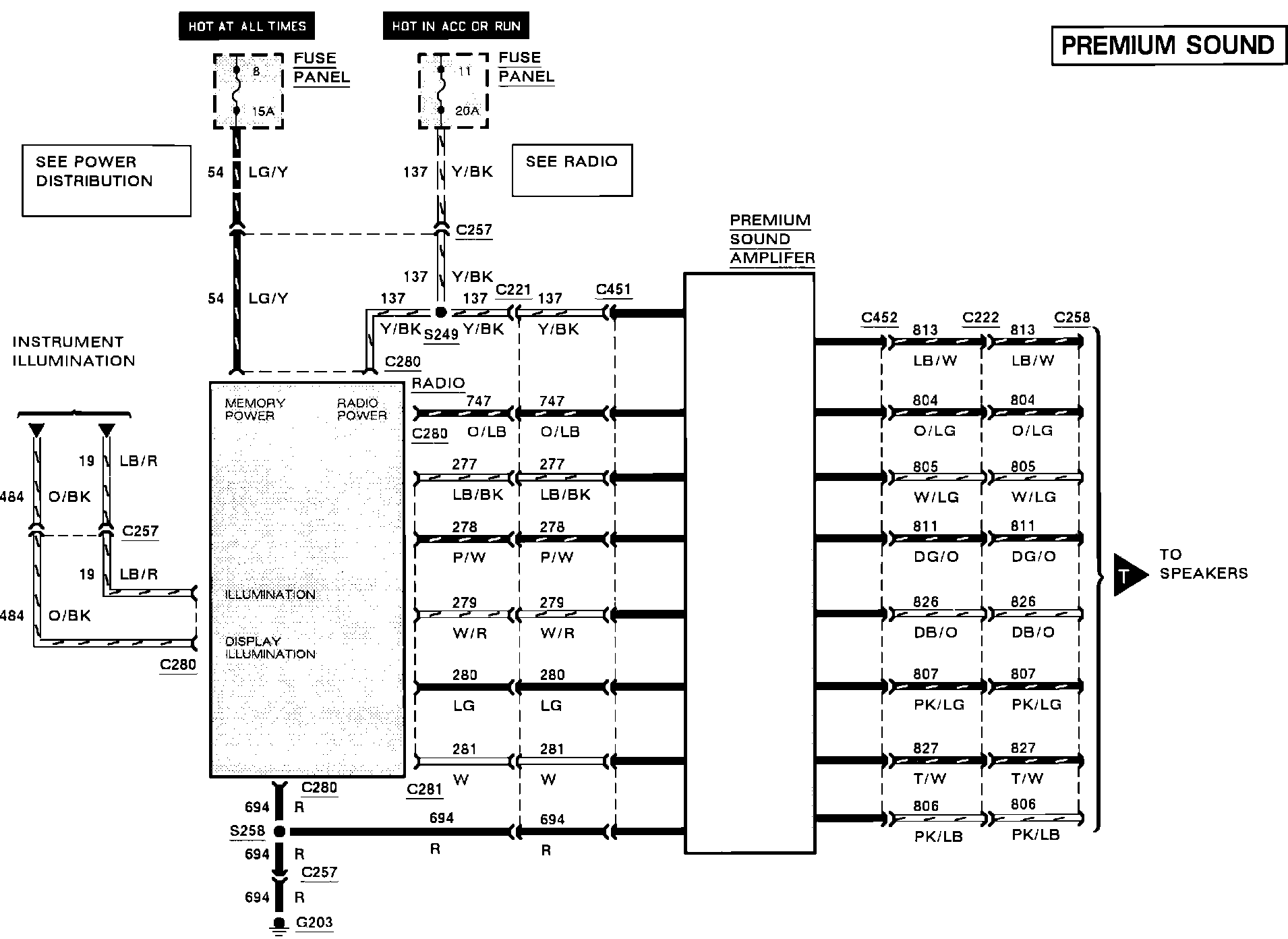

Radio (Standard/Premium Sound):

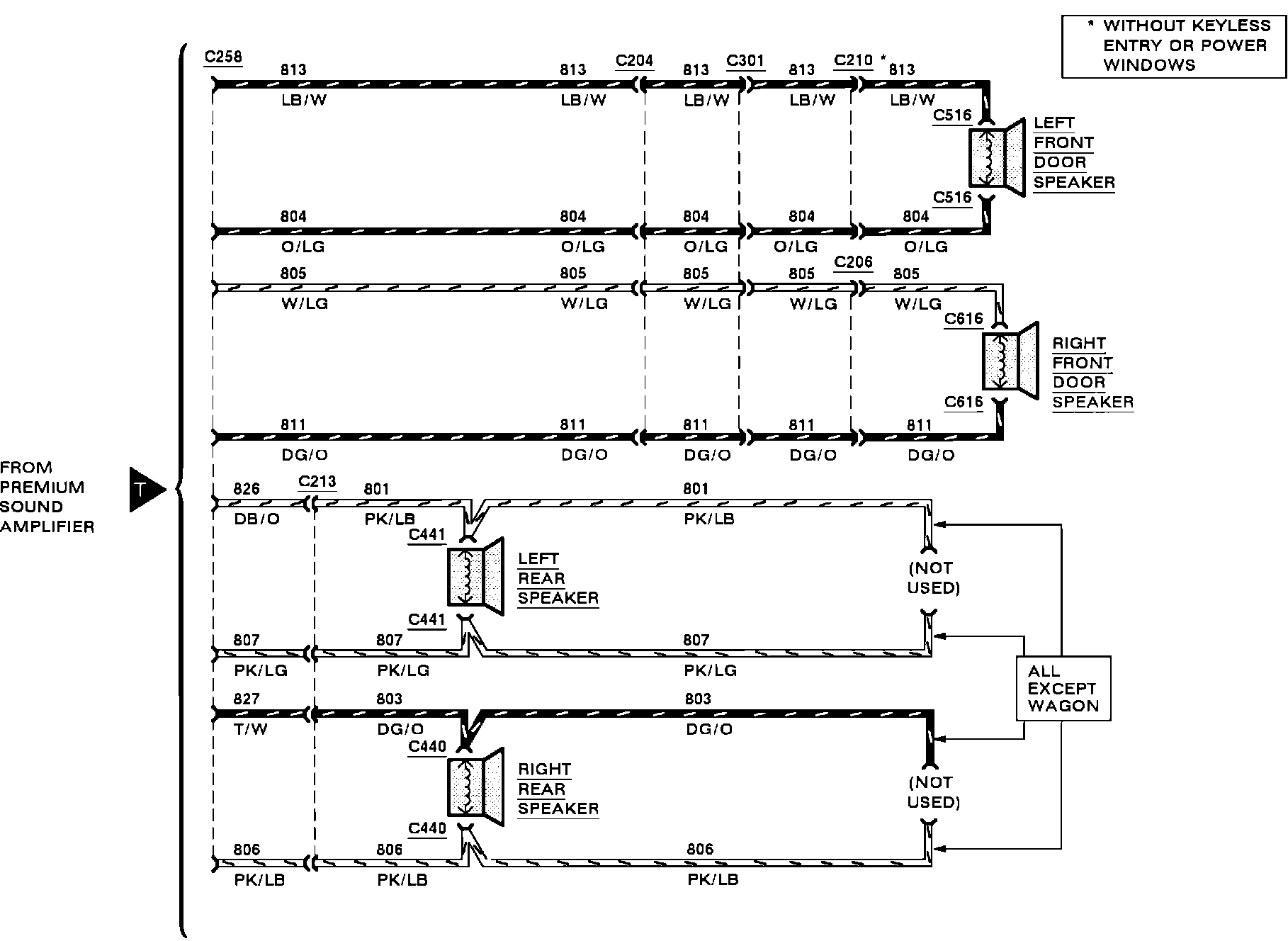

Radio (Speakers):
