Front

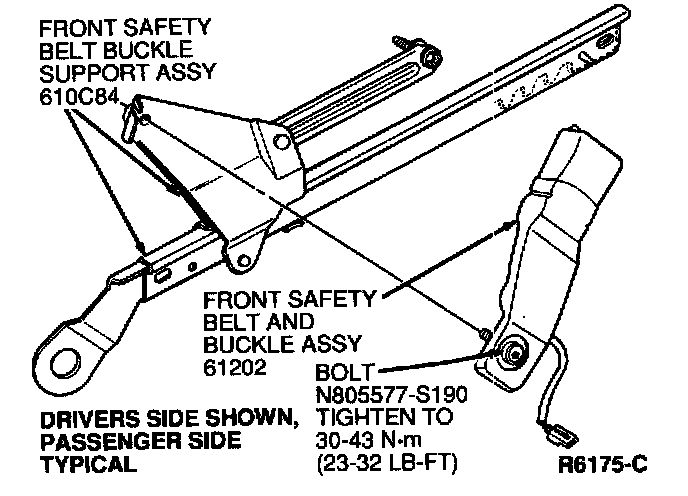

Inboard Belt And Buckle Assembly:

Seat Support Assembly:

REMOVAL
1. Remove seat and track assembly.
2. Remove inboard belt and buckle assembly.
3. Remove safety bolt from slide bar.
4. Remove inboard buckle assembly (on LH side of vehicle, disconnect chime wiring from floorpan wiring).

INSTALLATION
1. Position buckle assembly to slide bar. Tighten bolt to 30-43 Nm (23-32 lb-ft).
2. Install seat and track assembly.
3. Check restraint system for proper operation.
