H - Fuel Control
>>
H10 - Check Injector Harness Circuit For Short to Power/Ground
H10 - Check Injector Harness Circuit For Short to Power/Ground

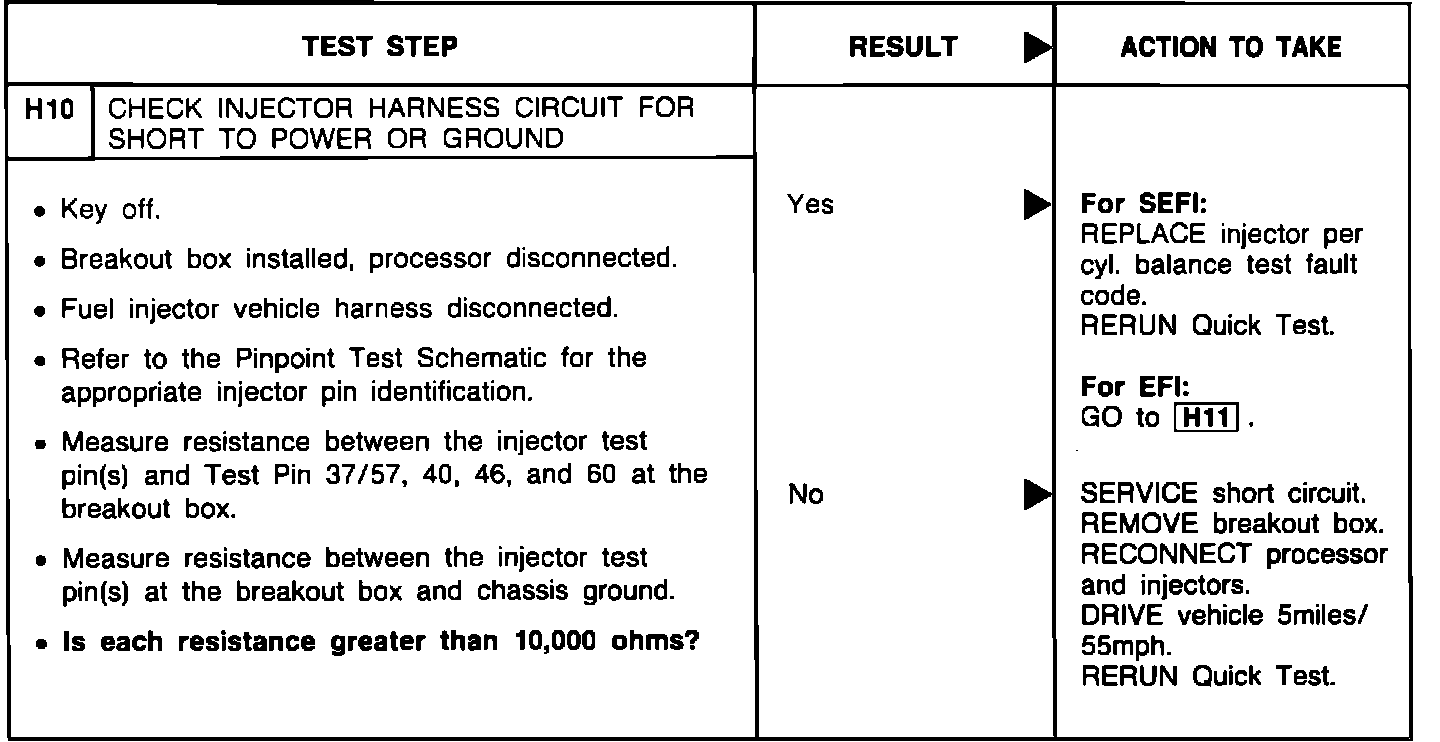

Pinpoint Test H10:
