Engine Controls

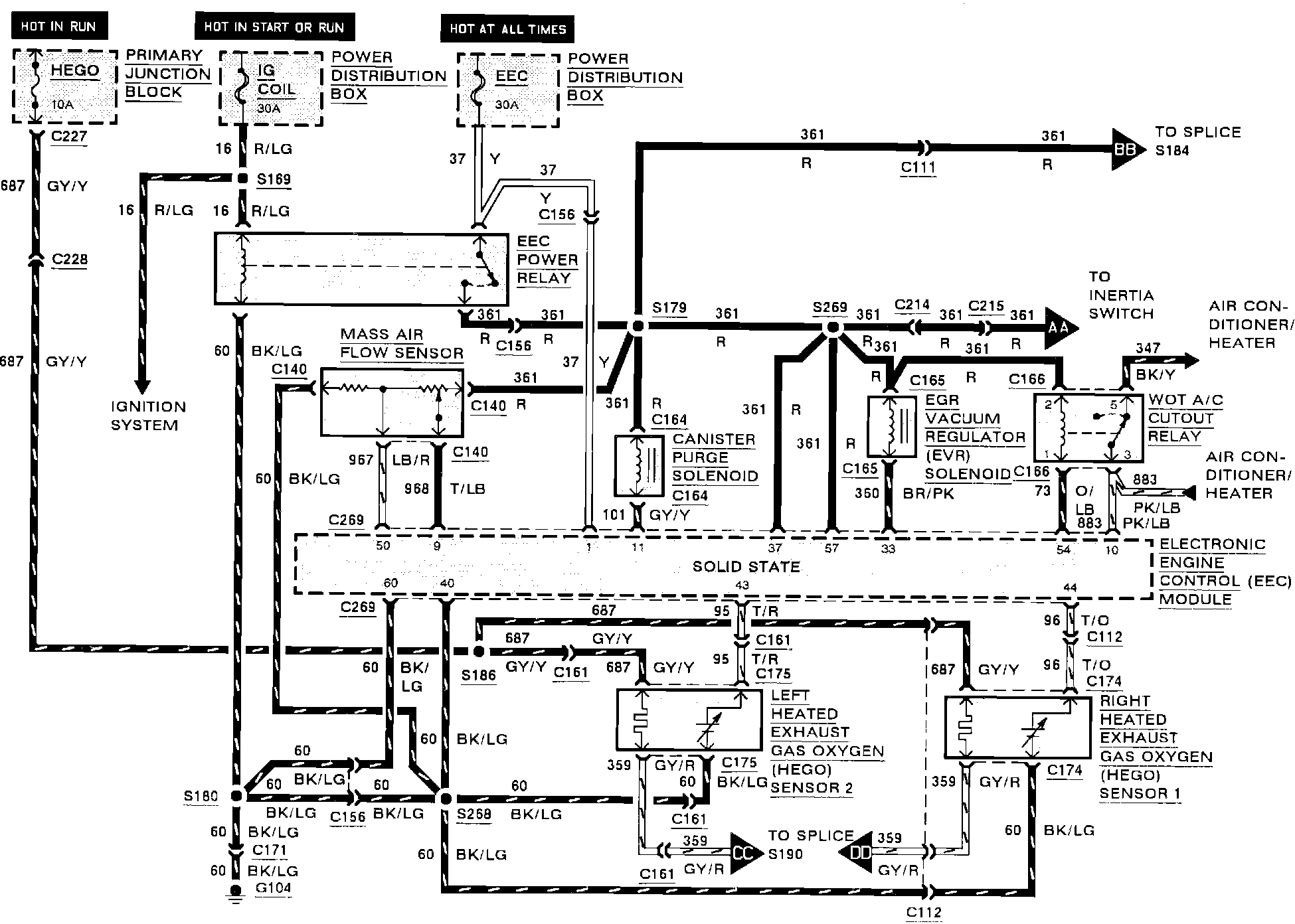

Electronic Engine Control (5.0L Engine):

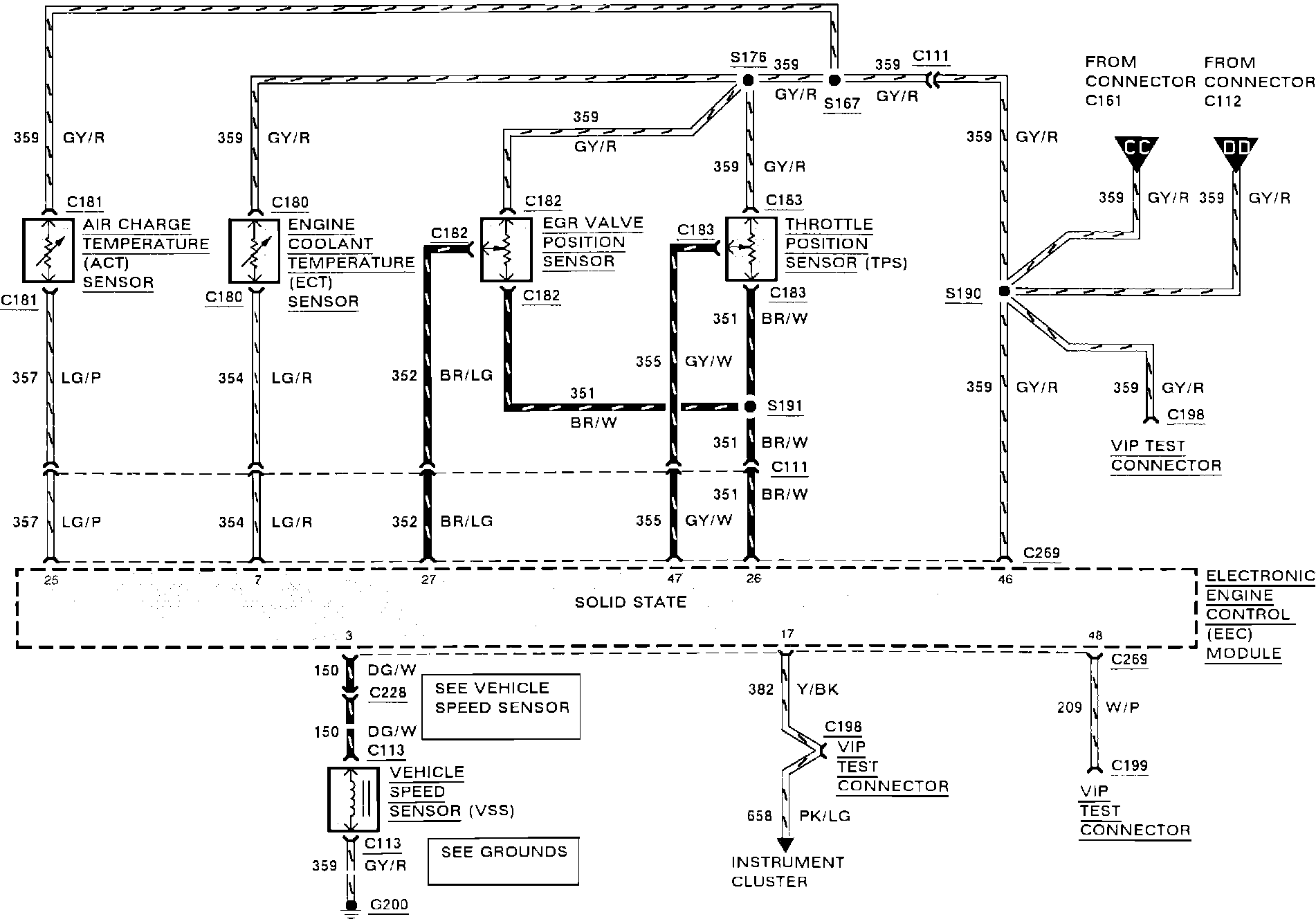

Electronic Engine Control (5.0L Engine):

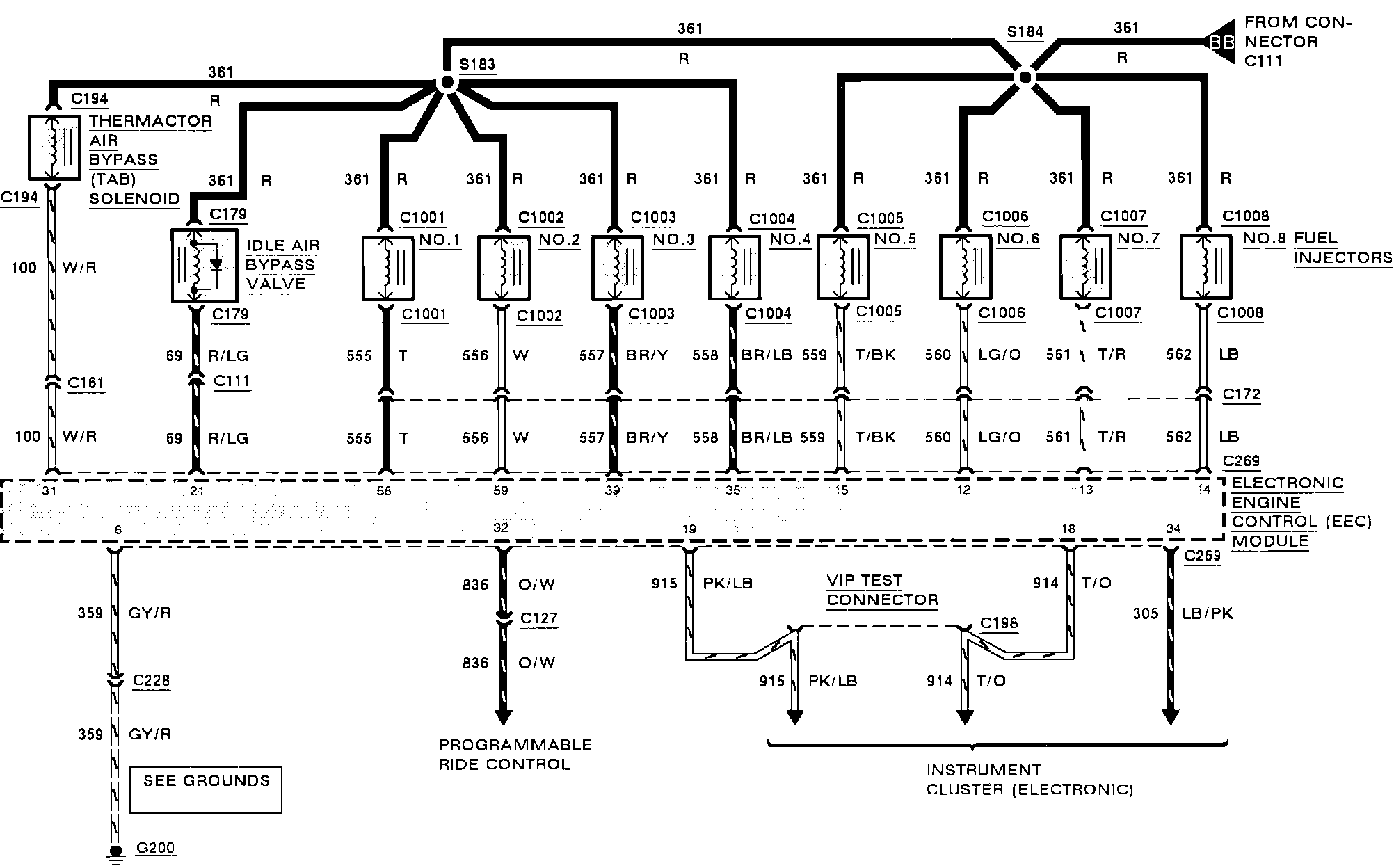

Electronic Engine Control (5.0L Engine):






Electronic Engine Control (5.0L Engine):
