Home >> Mercury >> 1991 >> Cougar/XR7 V8-302 5.0L HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Door Lock Relay >> Less Keyless Entry System

Less Keyless Entry System

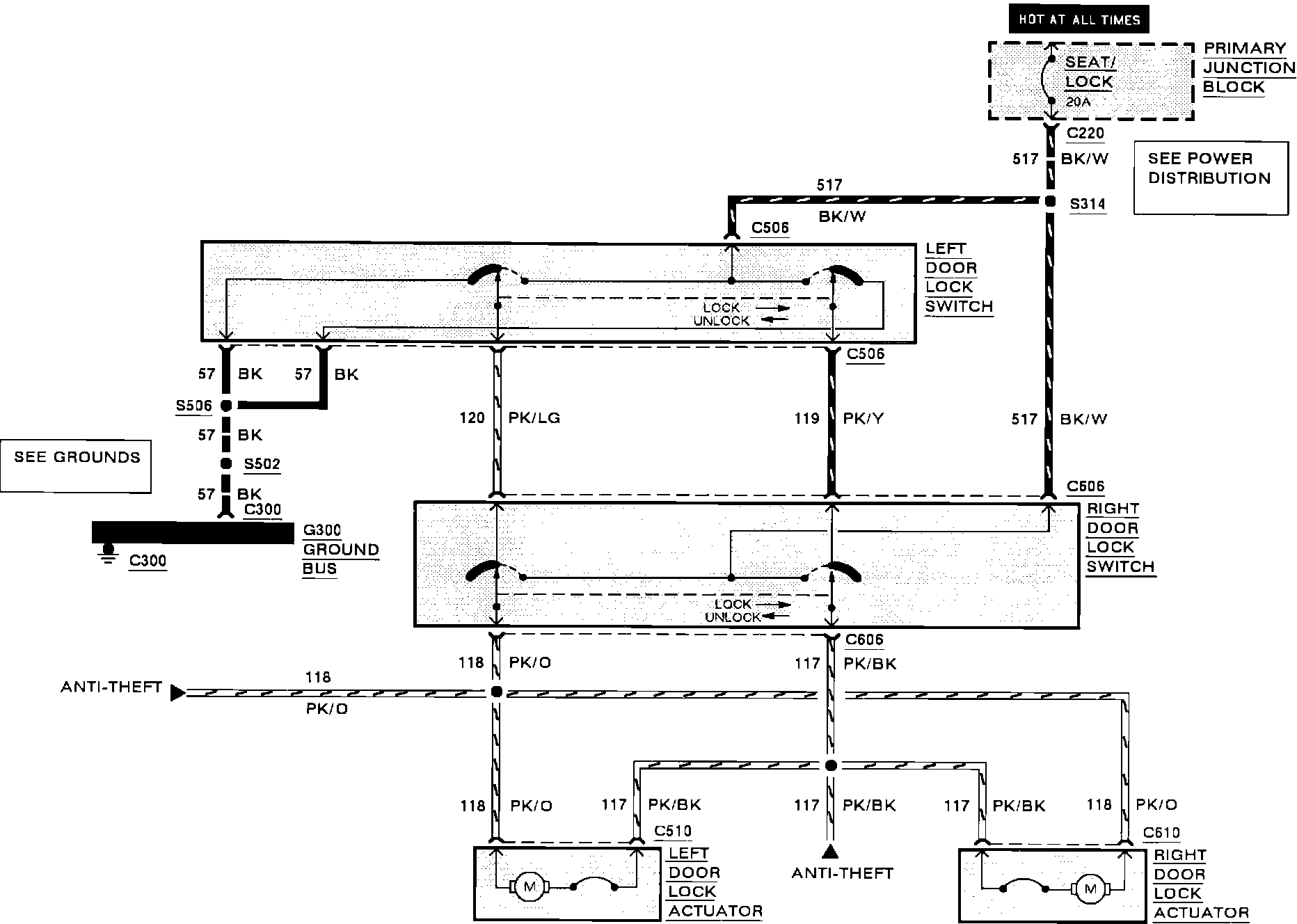

Power Door Locks (Without Keyless Entry):
