Home >> Mercury >> 1991 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> D - Module Input Circuit >> D33 - D34

D33 - D34

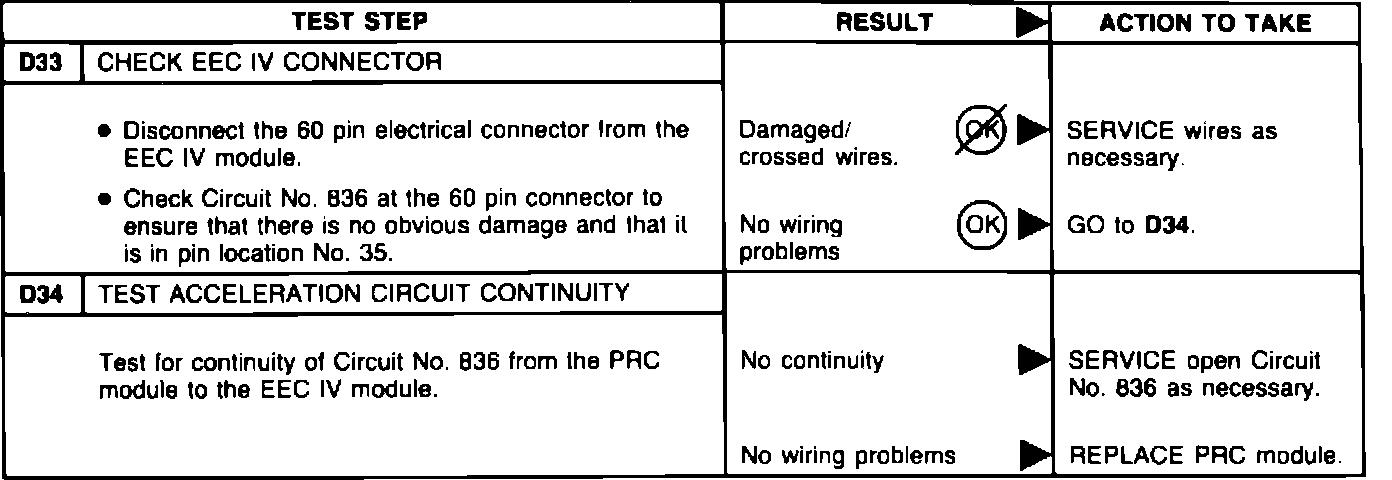

Fig. 7 Automatic Ride Control System Diagnosis, Module Input Circuit (Part 7 Of 7):
