Home >> Mercury >> 1991 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Locations >> Fuse Panel

Fuse Panel

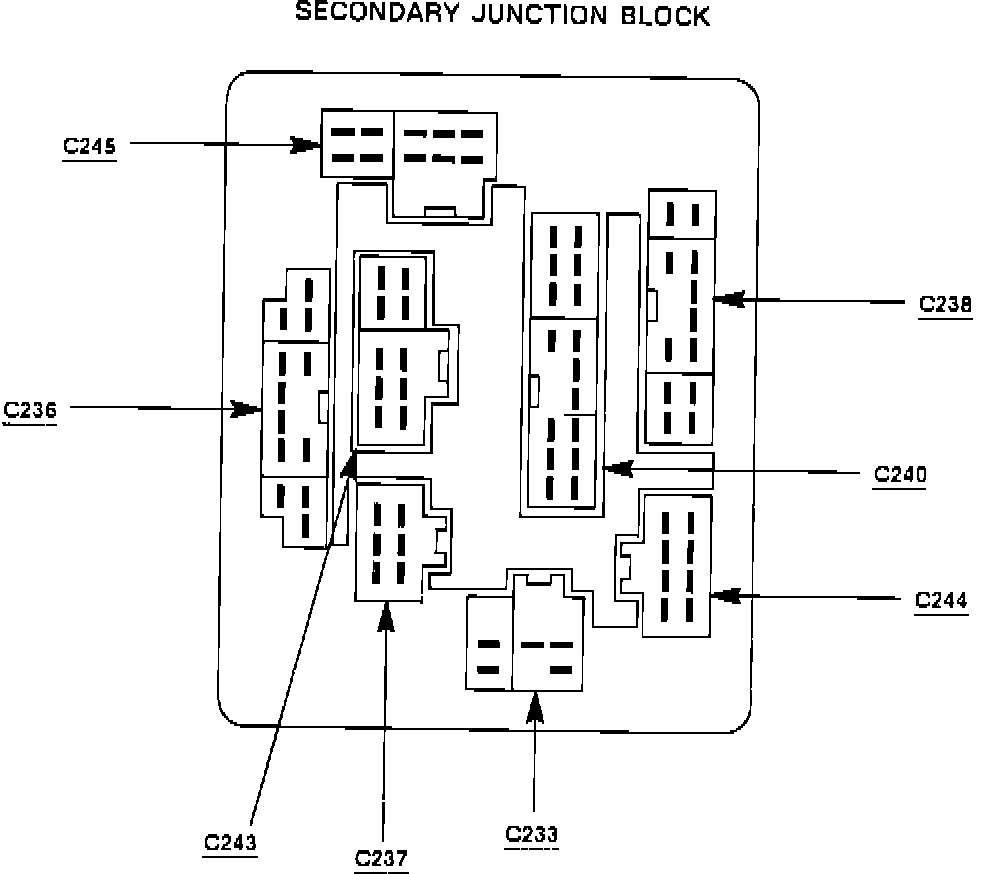

Power Distribution Box:

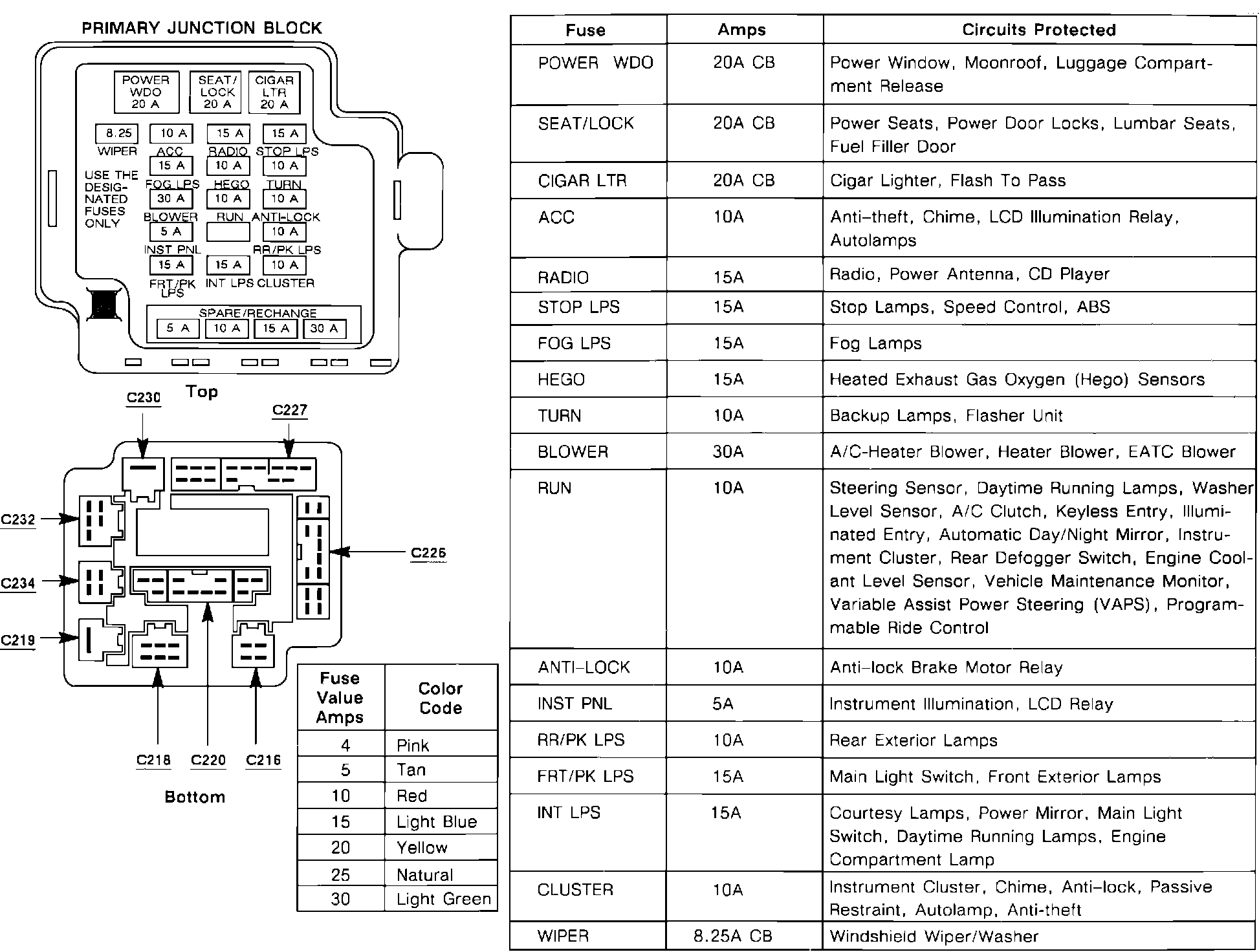

Circuit Protection/Fuse Panel:



Circuit Protection/Fuse Panel:
