Rear

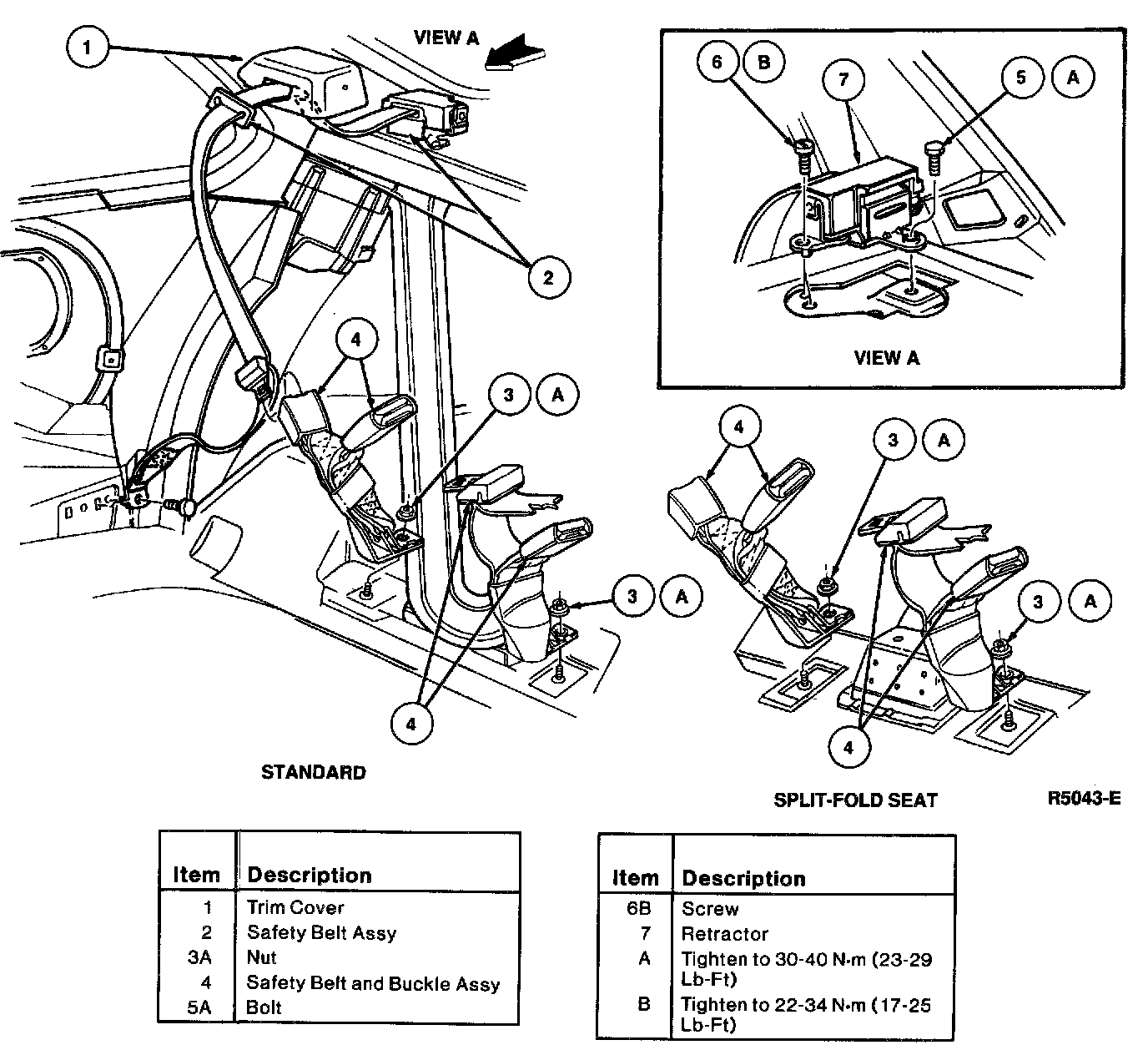

REMOVAL and INSTALLATION
1. Remove rear seat cushion.
2. Remove rear seat back.
3. Remove buckle end anchor nuts and remove buckle end belts.
4. Remove upper and lower quarter trim panels.
5. Remove safety belt anchor-to-sill bolt.
6. Remove push pin retaining rear safety belt retractor cover assembly. Remove bezel and cover.
7. Remove retractor anchor bolt and retractor screw.
8. Remove anchor end of safety belt through the opening in the quarter trim panel.
9. Remove outboard safety belt assembly from the vehicle.
10. Repeat procedure on opposite side.
11. To install, reverse Removal procedure. Check to ensure safety belts are not twisted. Cycle retractor to check for proper operation.

NOTE: Be sure to tighten all retaining bolts to proper specification.
