X - Integrated Relay Control Module
>>
X27 - Check ECT Sensor

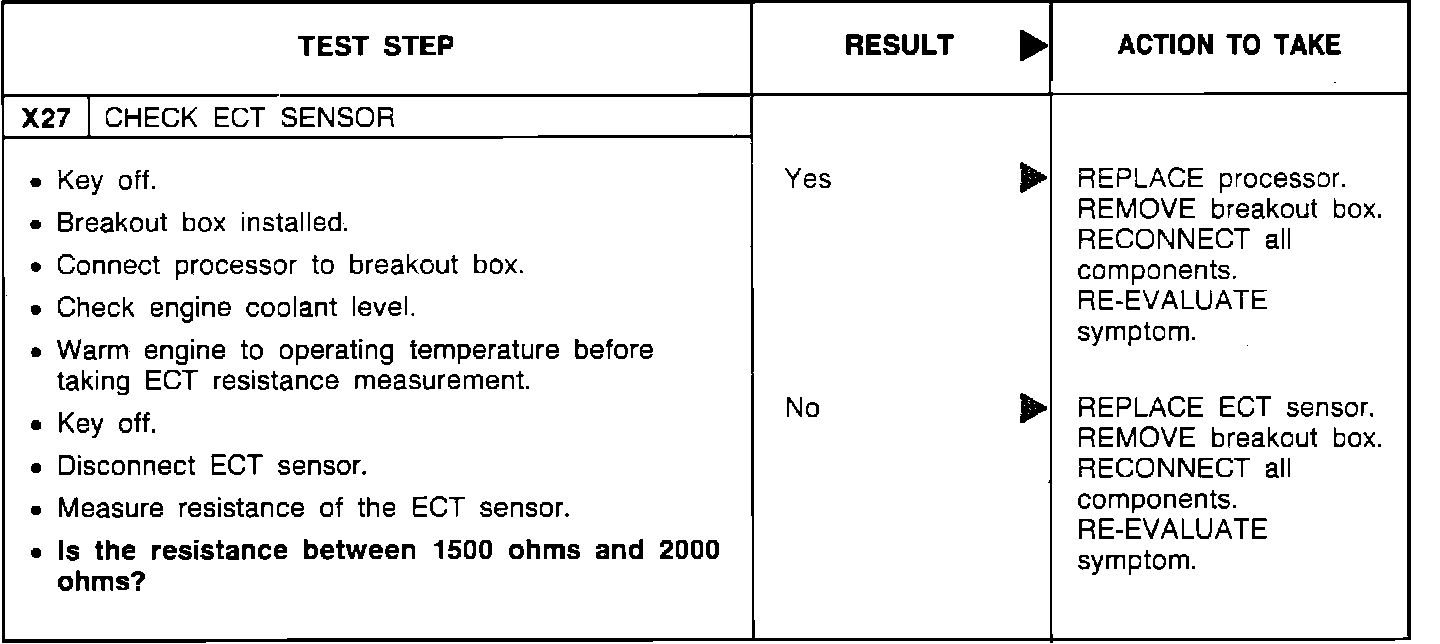

X27 - Check ECT Sensor
Pinpoint Test X27:
