Blower Circuit Diagnosis

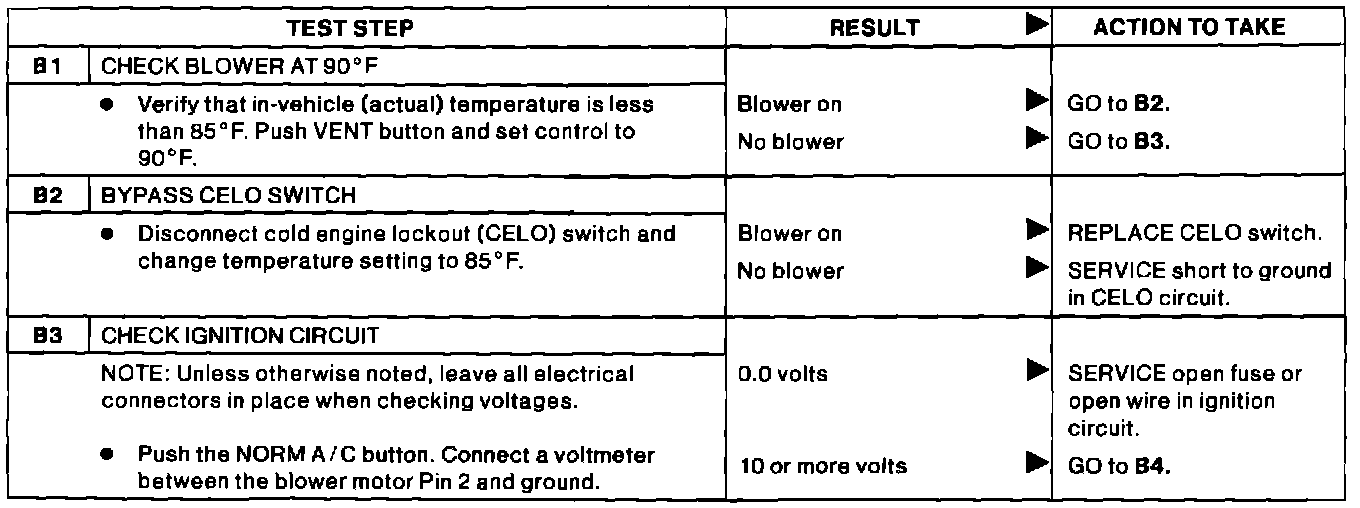

Blower Circuit Diagnosis:

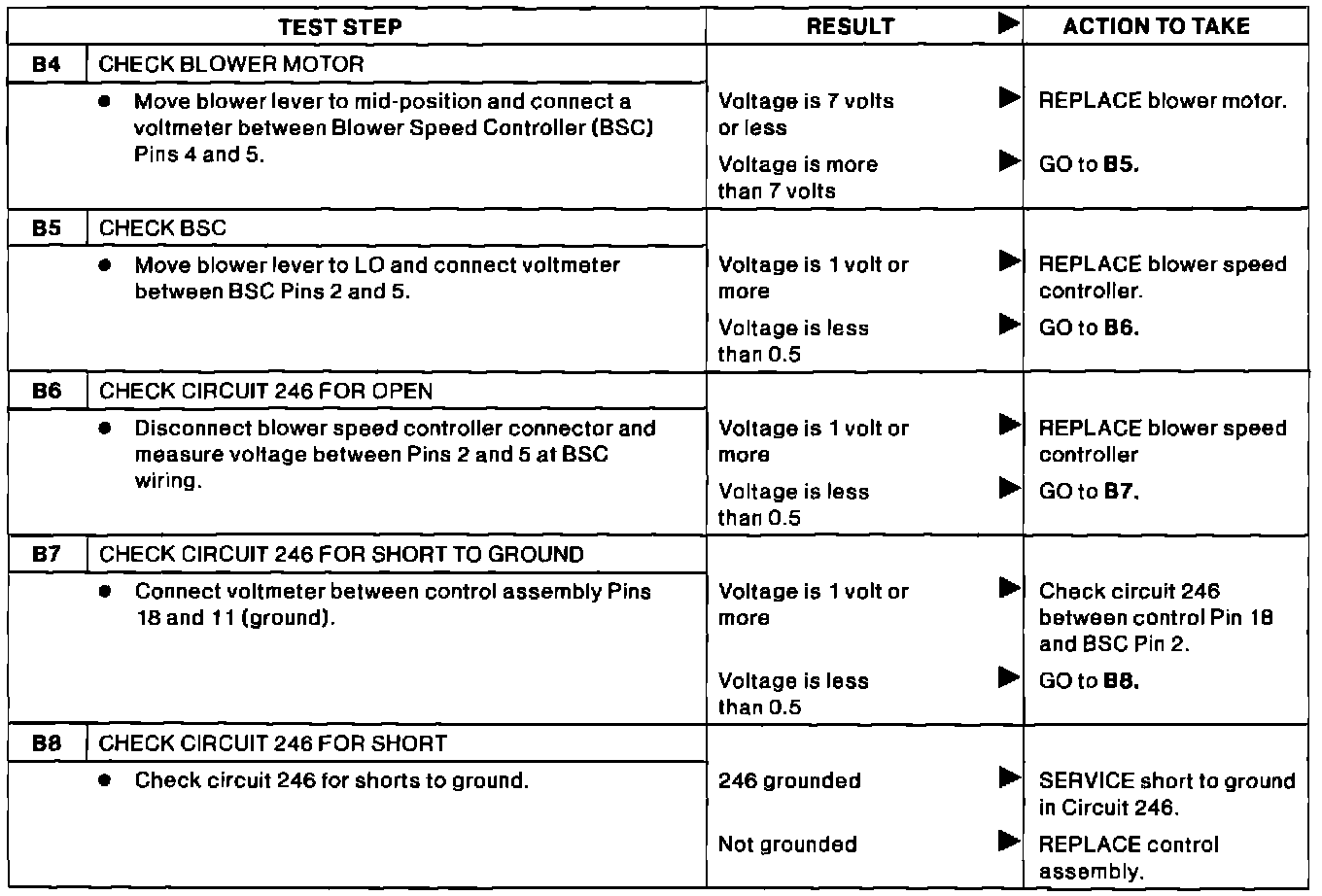

Blower Circuit Diagnosis (Continued):





EATC System Wiring Schematic:
