Home >> Mercury >> 1991 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Electronic Climate Control

Electronic Climate Control

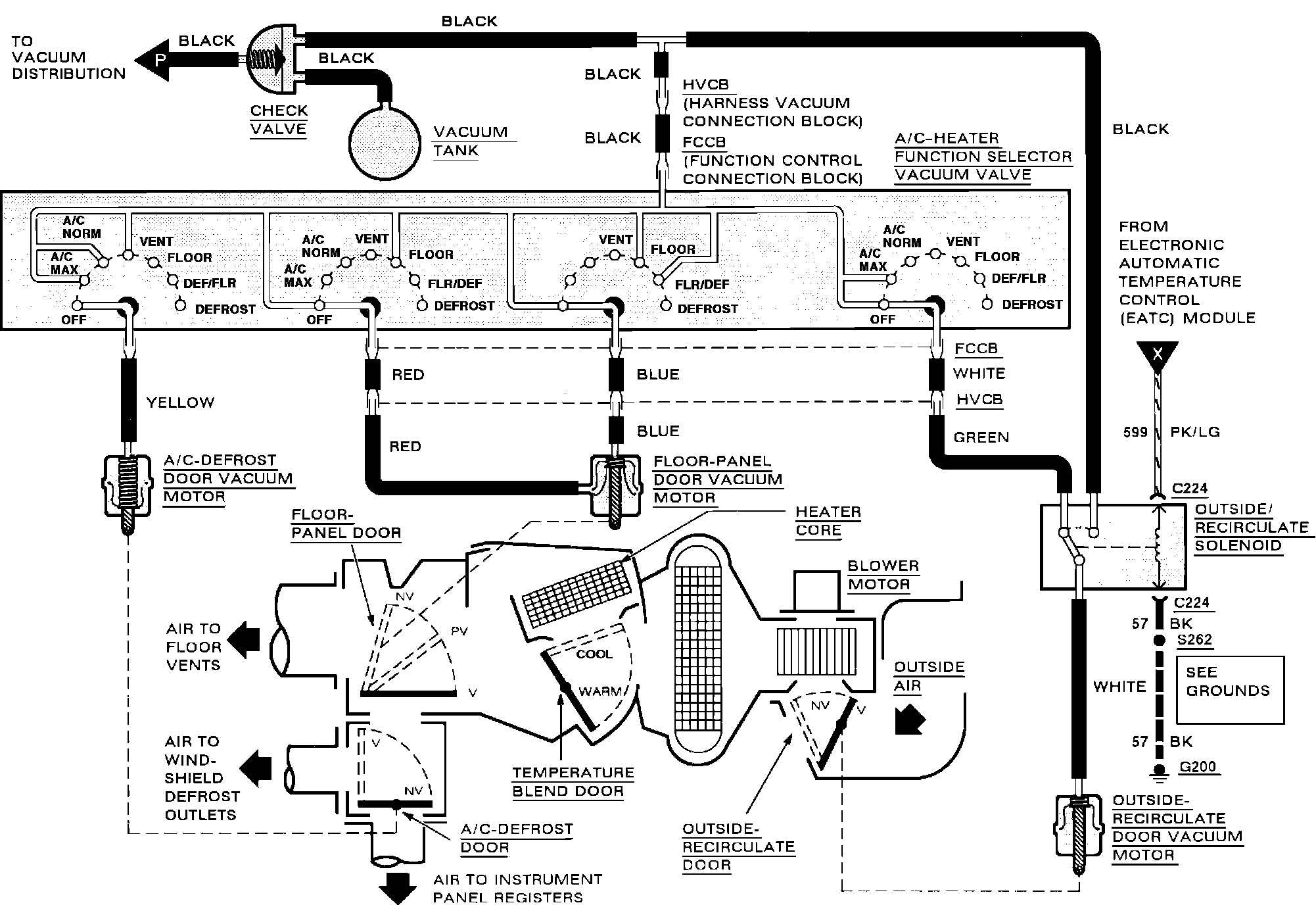

A/C & Heater Vacuum Hose Routing. EATC:
