Condenser HVAC: Service and Repair

Fig. 2 Spring lock coupling disconnect & connect:

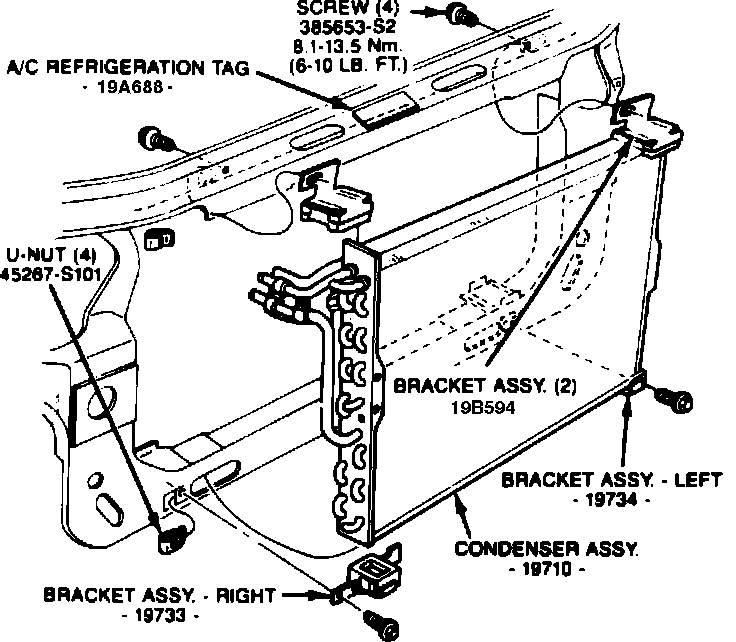

Fig. 3 Condenser assembly removal:

1. Discharge refrigerant from system.
2. Remove battery.
3. Disconnect the two refrigerant lines on right side of radiator, Fig. 2.
4. Remove four bolts attaching condenser to radiator support, then the condenser, Fig. 3.
5. Reverse procedure to install. Use new O-rings lubricated with refrigerant oil.



6. Add one ounce of refrigerant oil to new condenser.
7. Evacuate, charge and leak test system.
