Home >> Mercury >> 1991 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> EE DTC 51, 52, 53, 54, 57, 71, 72, 73 Outlet Valve Diagnosis >> EE1A & EE2

EE1A & EE2

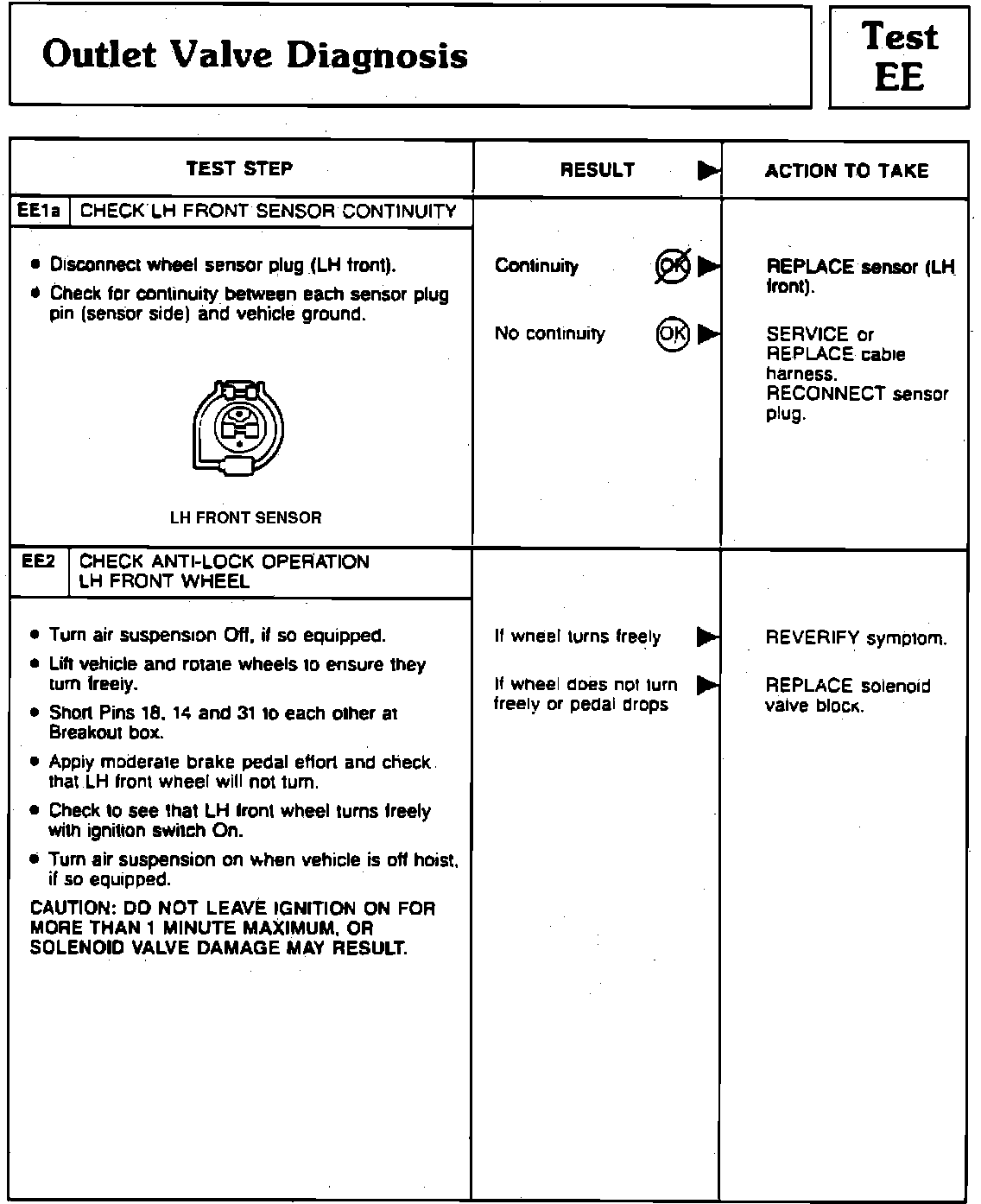

Fig. 16 Test EE, Outlet Valve Diagnosis (Part 2 Of 8):
