Home >> Mercury >> 1991 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> B ABS Warning Indicator on (Brake Indicator Off) >> B4, B4A

B4, B4A

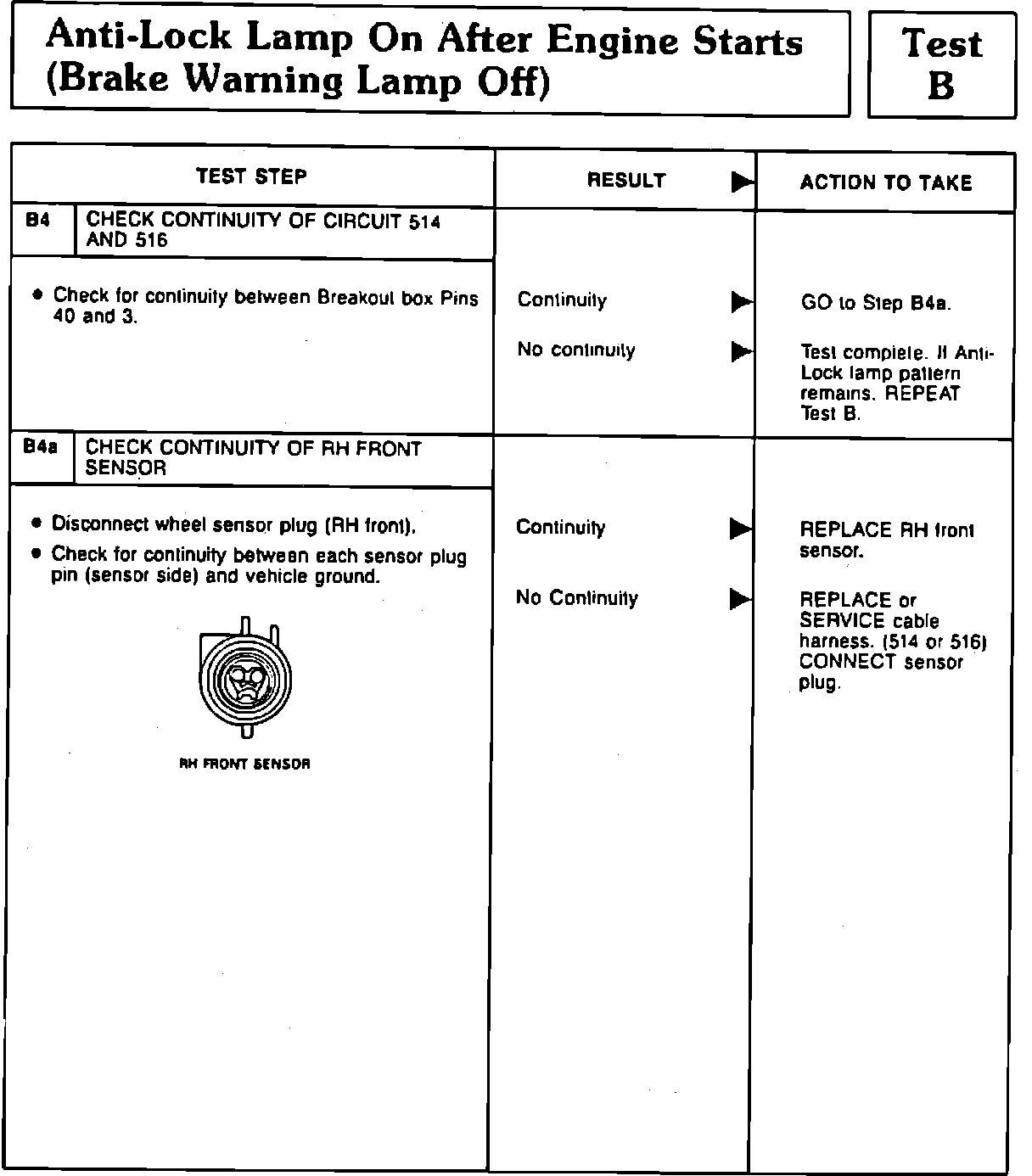

Fig. 24 Test B, ABS Lamp On After Engine Starts (Part 3 Of 3):
