Home >> Mercury >> 1991 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Windows and Glass >> Relays and Modules - Windows and Glass >> Heated Glass Control Module >> Locations

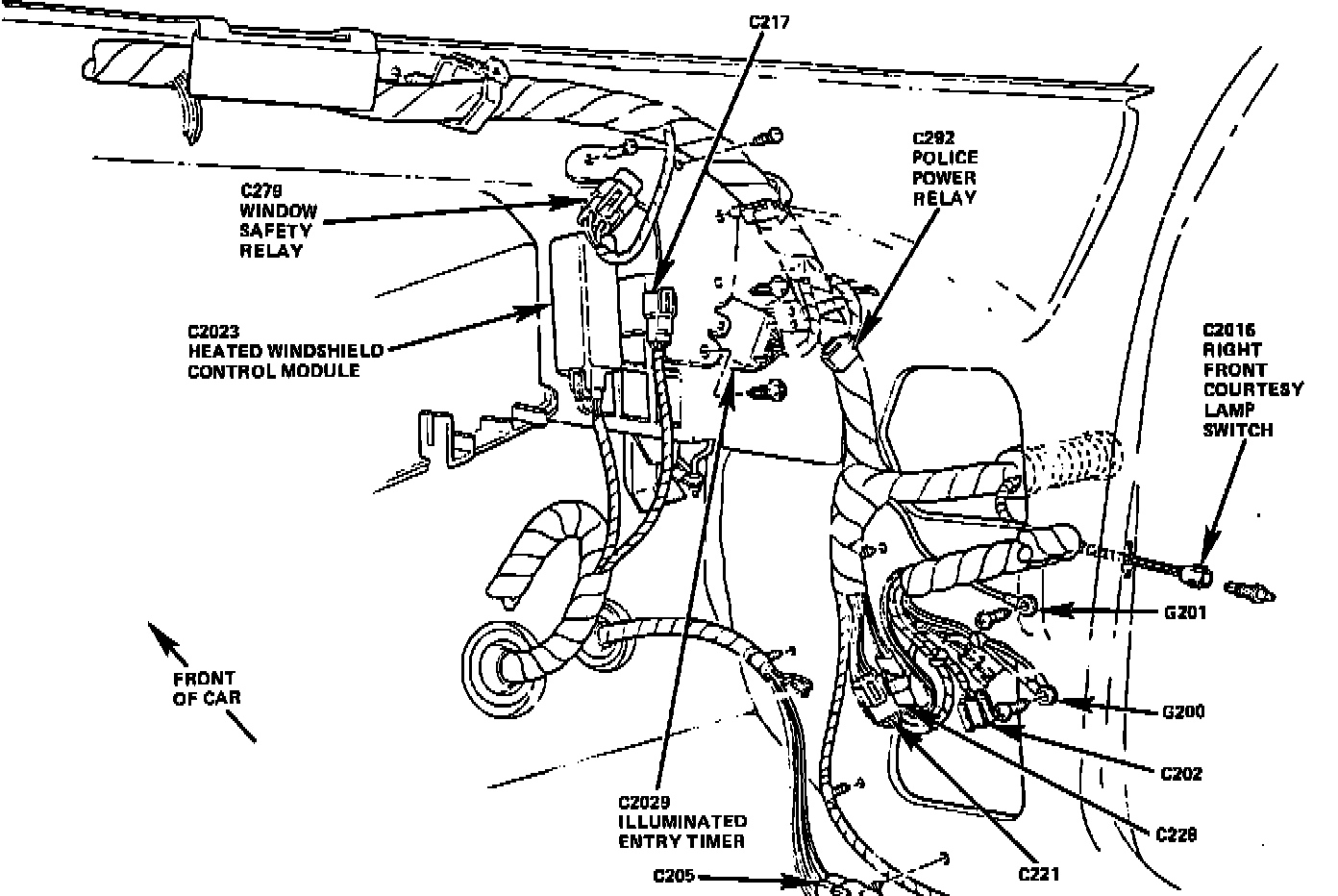

Heated Glass Control Module: Locations

RH Side Of Instrument Panel.:




Behind RH Side Of I/P, RH Side Of Glove Box

Applicable to: 1991
