Transmission Position Sensor/Switch: Locations

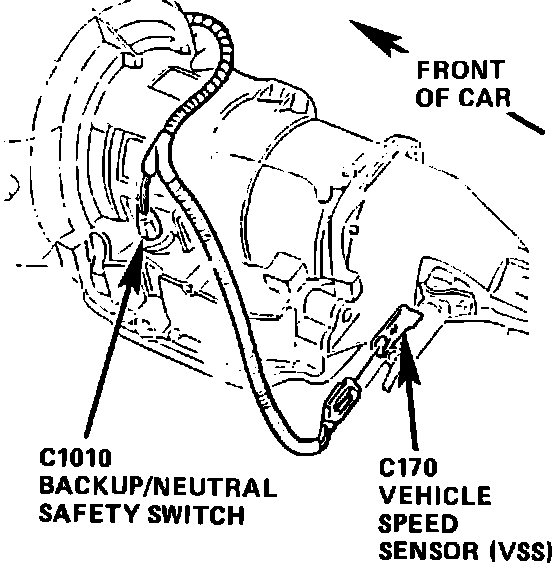

Left Hand Side View Of Automatic Transmission:






BACKUP/NEUTRAL SAFETY SWITCH
VEHICLE SPEED SENSOR
