Electrical Diagrams

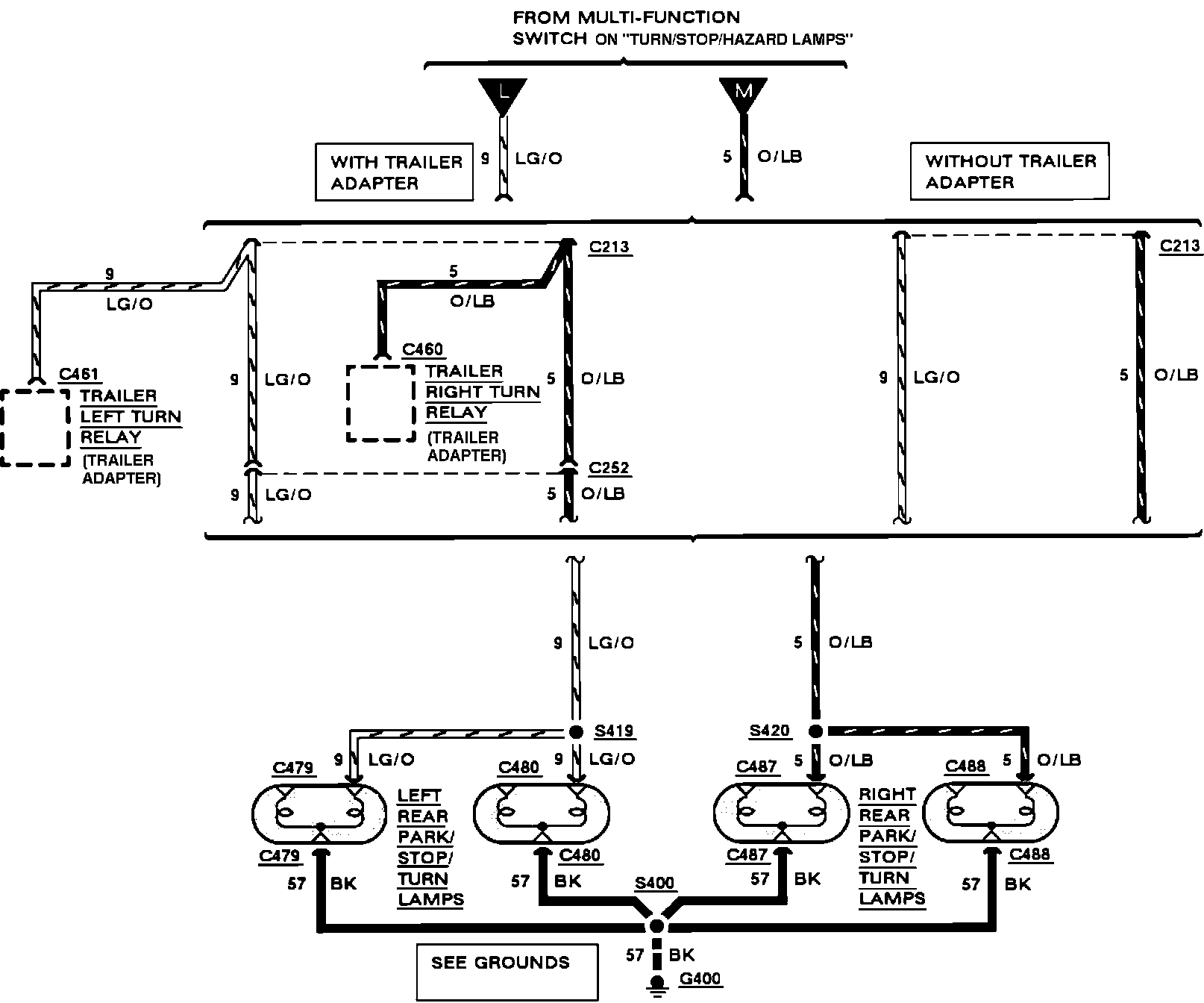

Hazard, Stop & Turn Sugnal:

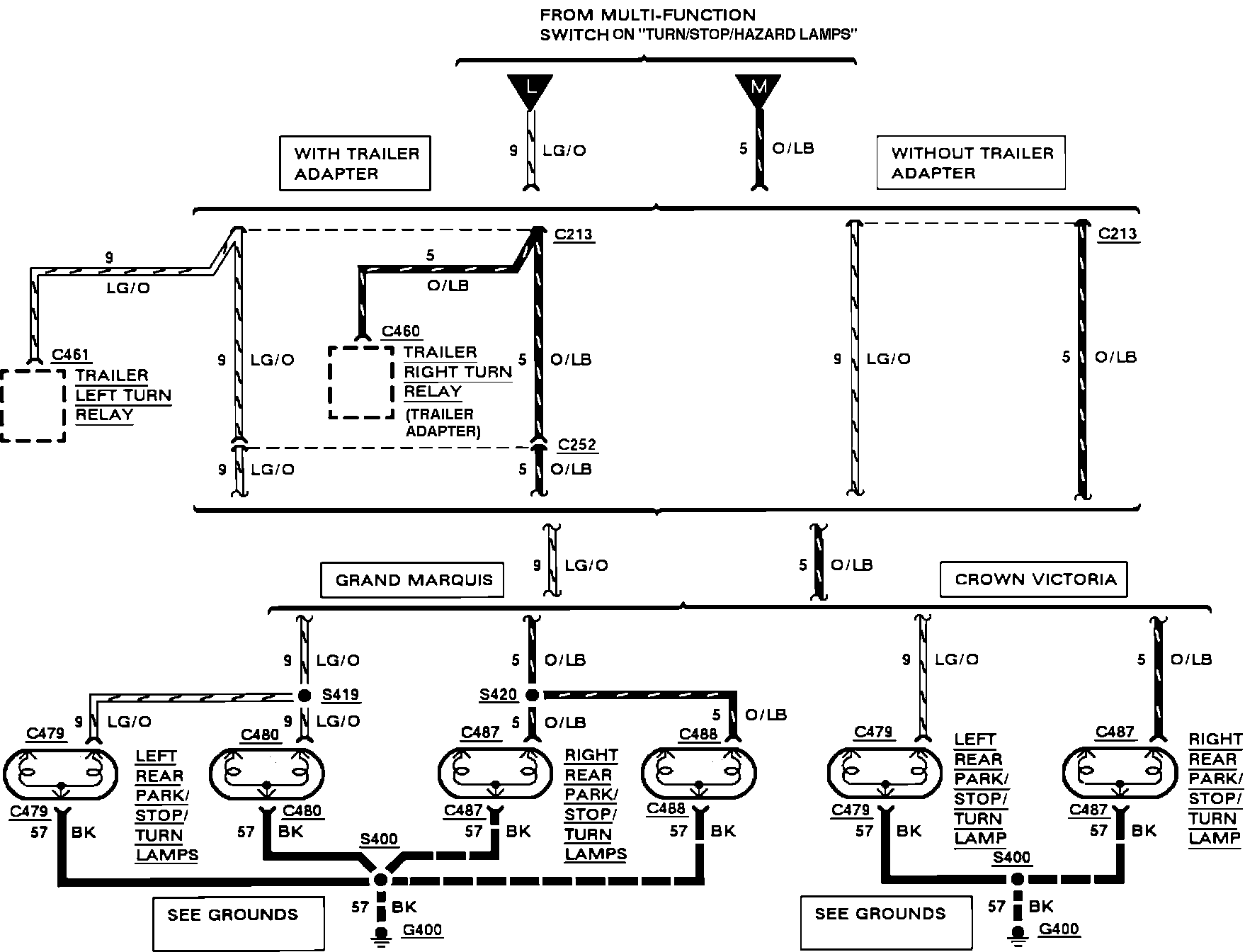

Hazard, Stop & Turn Sugnal:

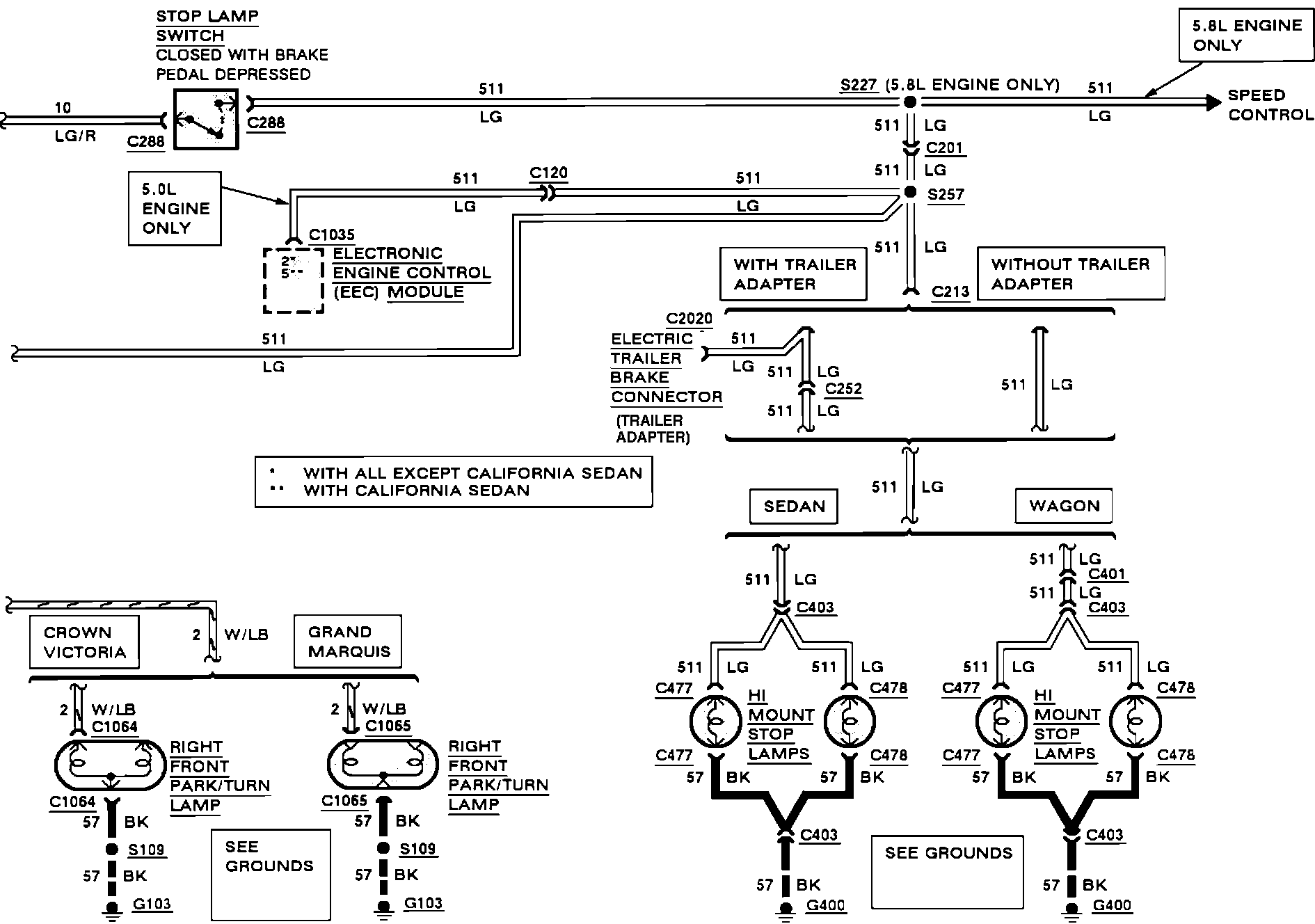

Hazard, Stop & Turn Sugnal:

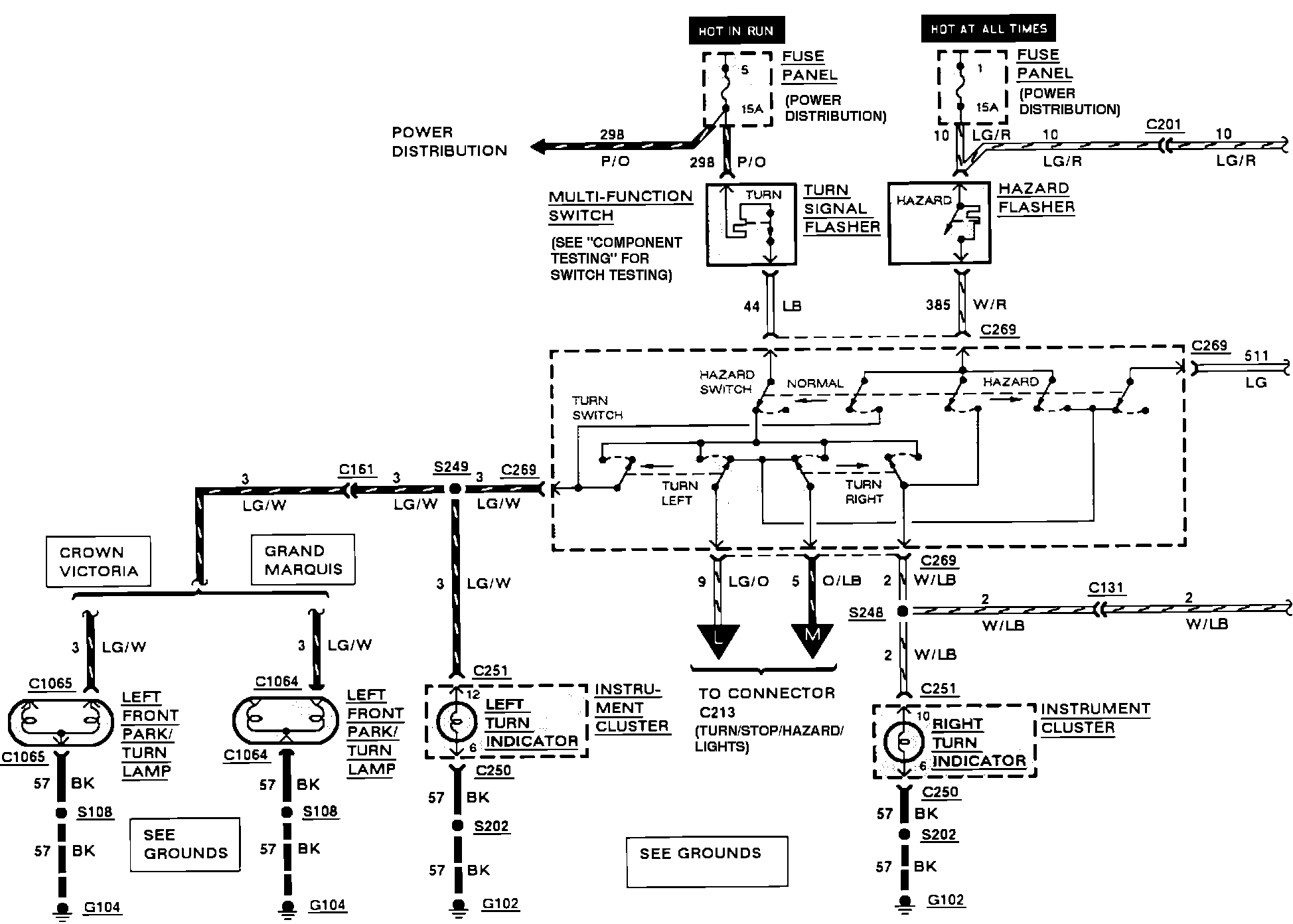

Hazard, Stop & Turn Sugnal:
