Home >> Mercury >> 1991 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Manufacturer Code Charts >> Code 6 - Driver Air Bag Circuit Inoperative

Code 6 - Driver Air Bag Circuit Inoperative

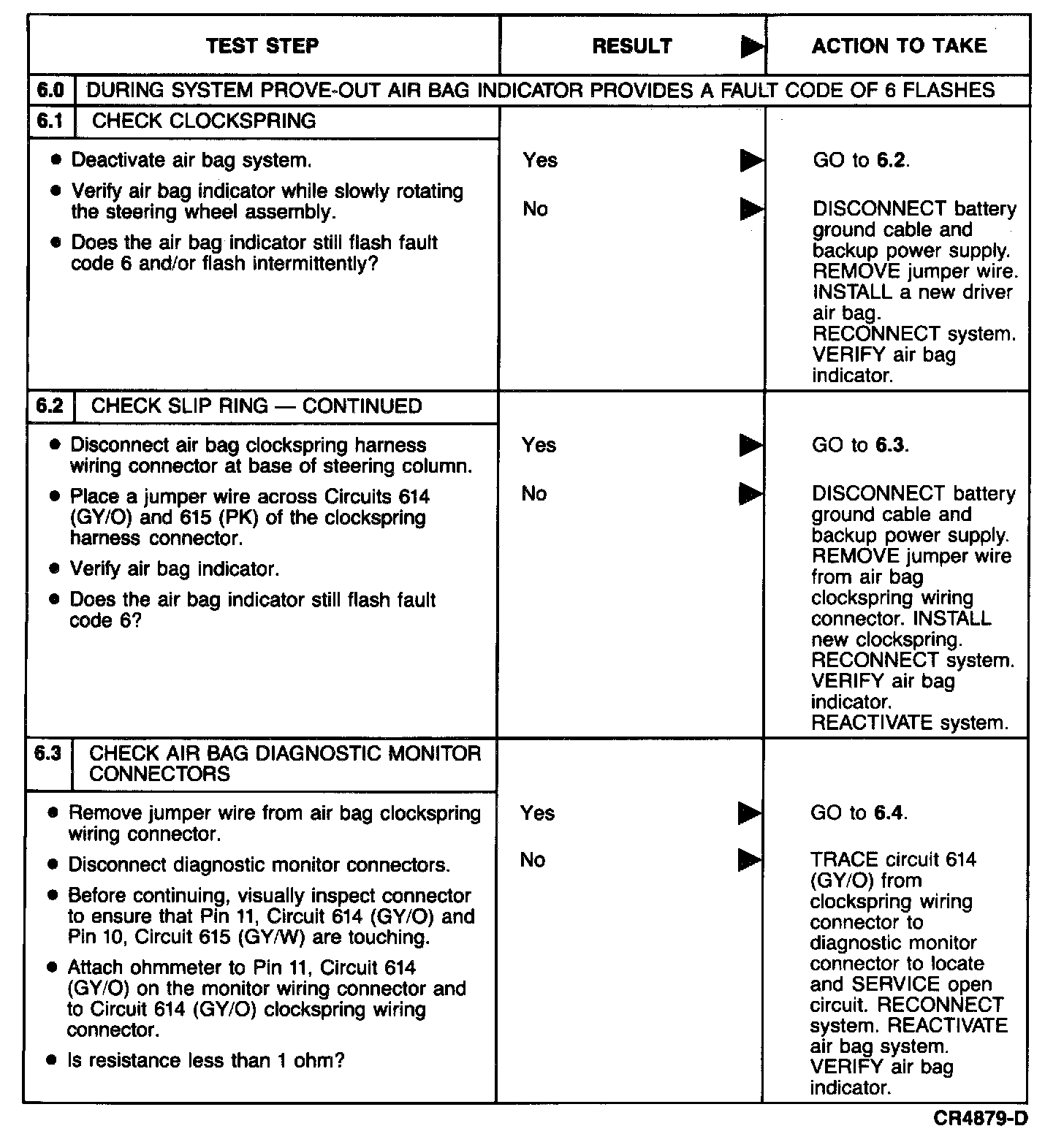

Test Steps:

6.0 - 6.3:






6.4:
