Engine Control Module
>>
Diagrams
>>
Connector Views
>>
With Speed Density (MAP Sensor)
With Speed Density (MAP Sensor)

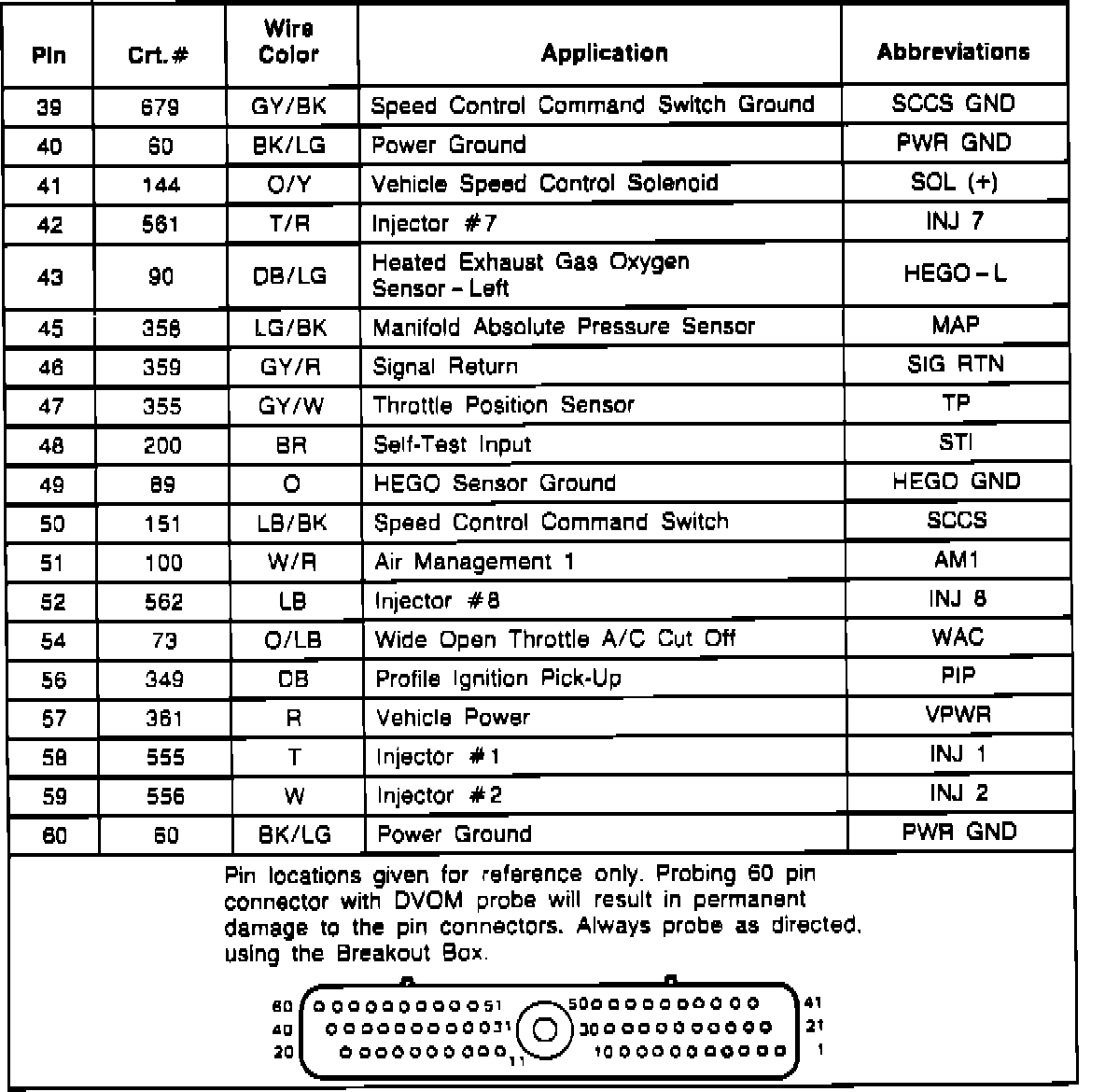

Electronic Control Assembly (ECA) Connector Pinout:

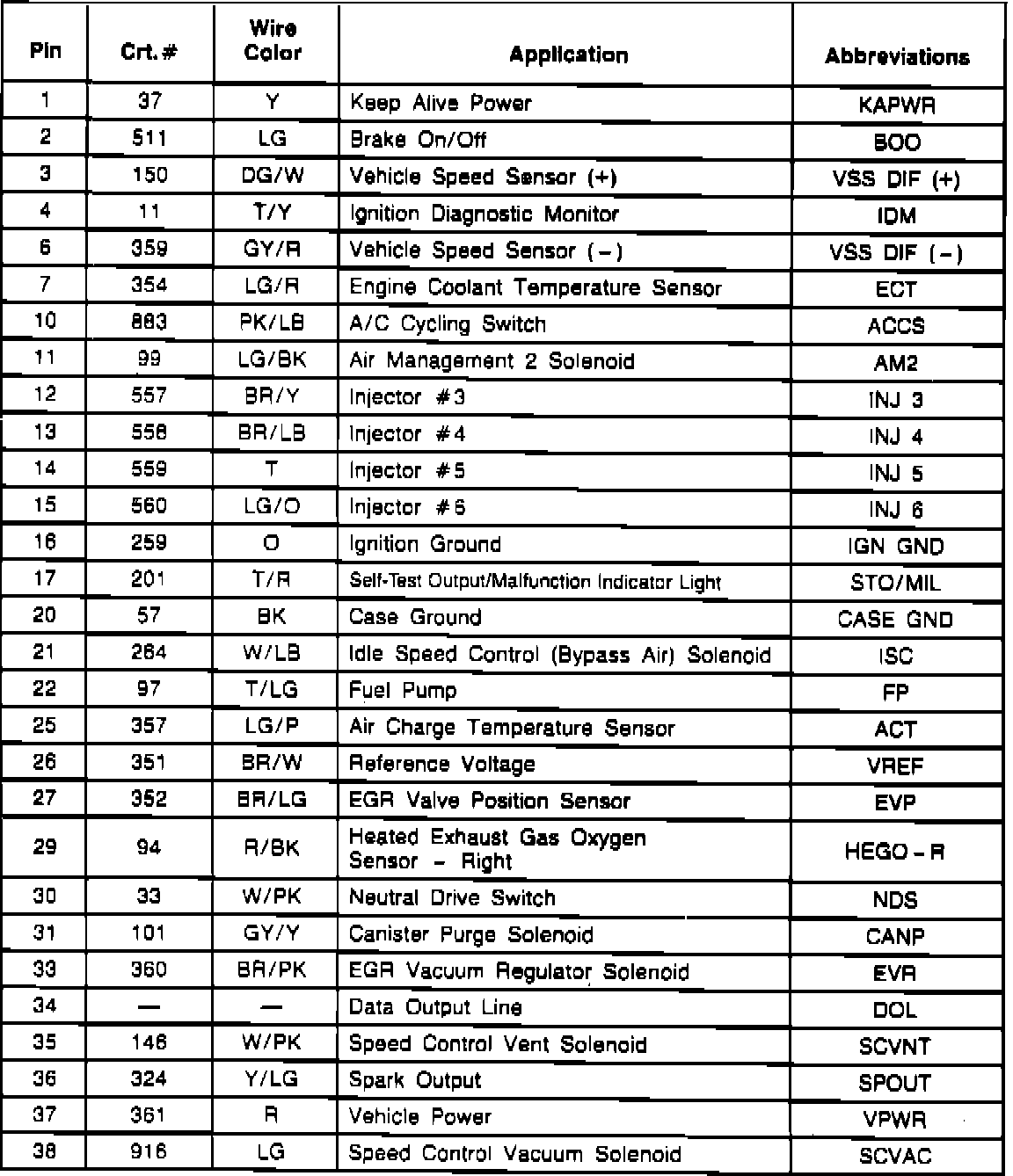

Electronic Control Assembly (ECA) Connector Pinout:
