Description and Operation
>>
Air Pump Resonator
Air Pump Resonator

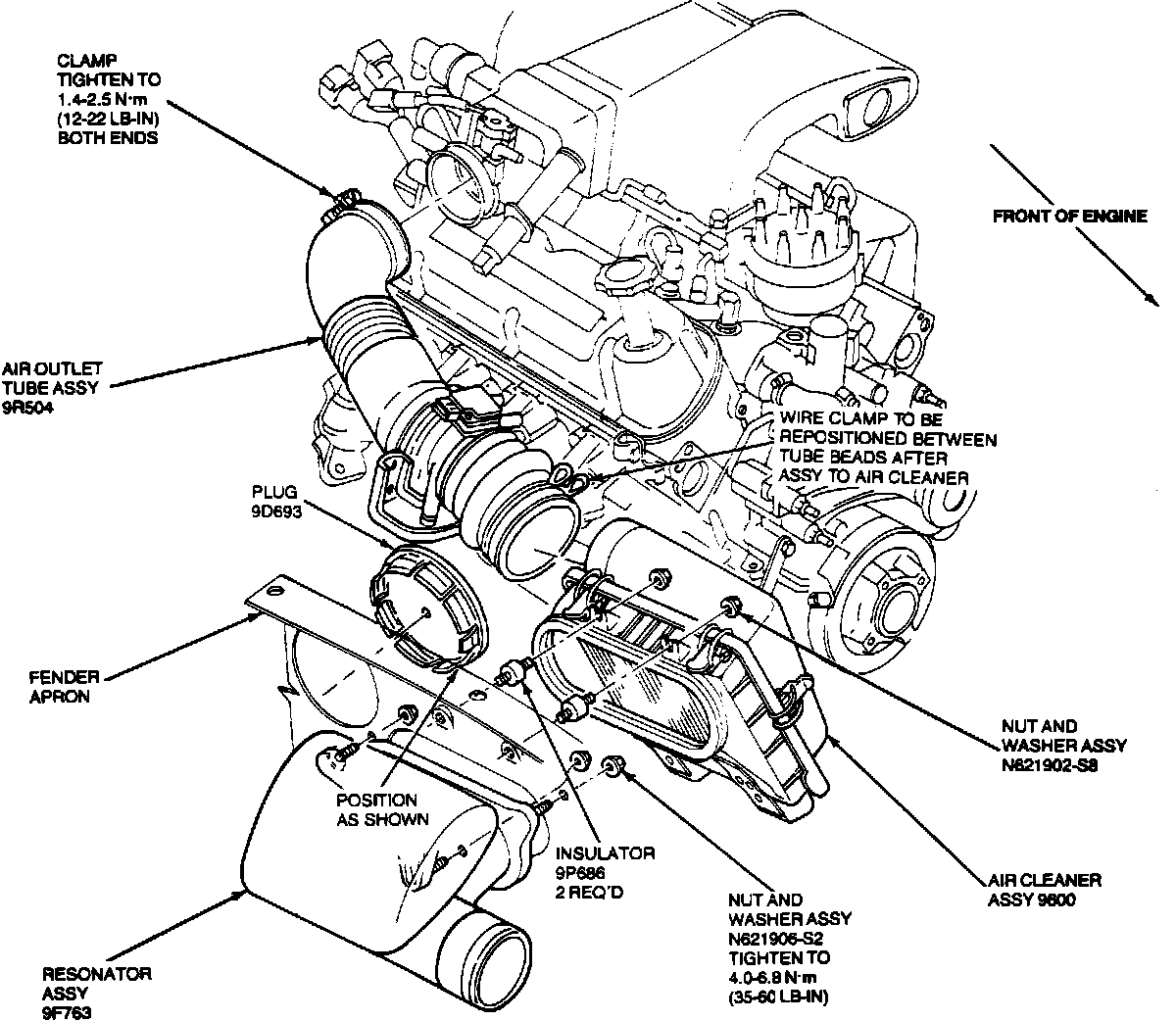

Air Cleaner Assembly:
The Air Pump Resonator reduces air dump noise during some cruise modes and during cold start.
