Home >> Mercury >> 1991 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Normal Scan Data Values (Includes PIDs) >> Diagnostic Reference Values >> With Mass Air System

With Mass Air System

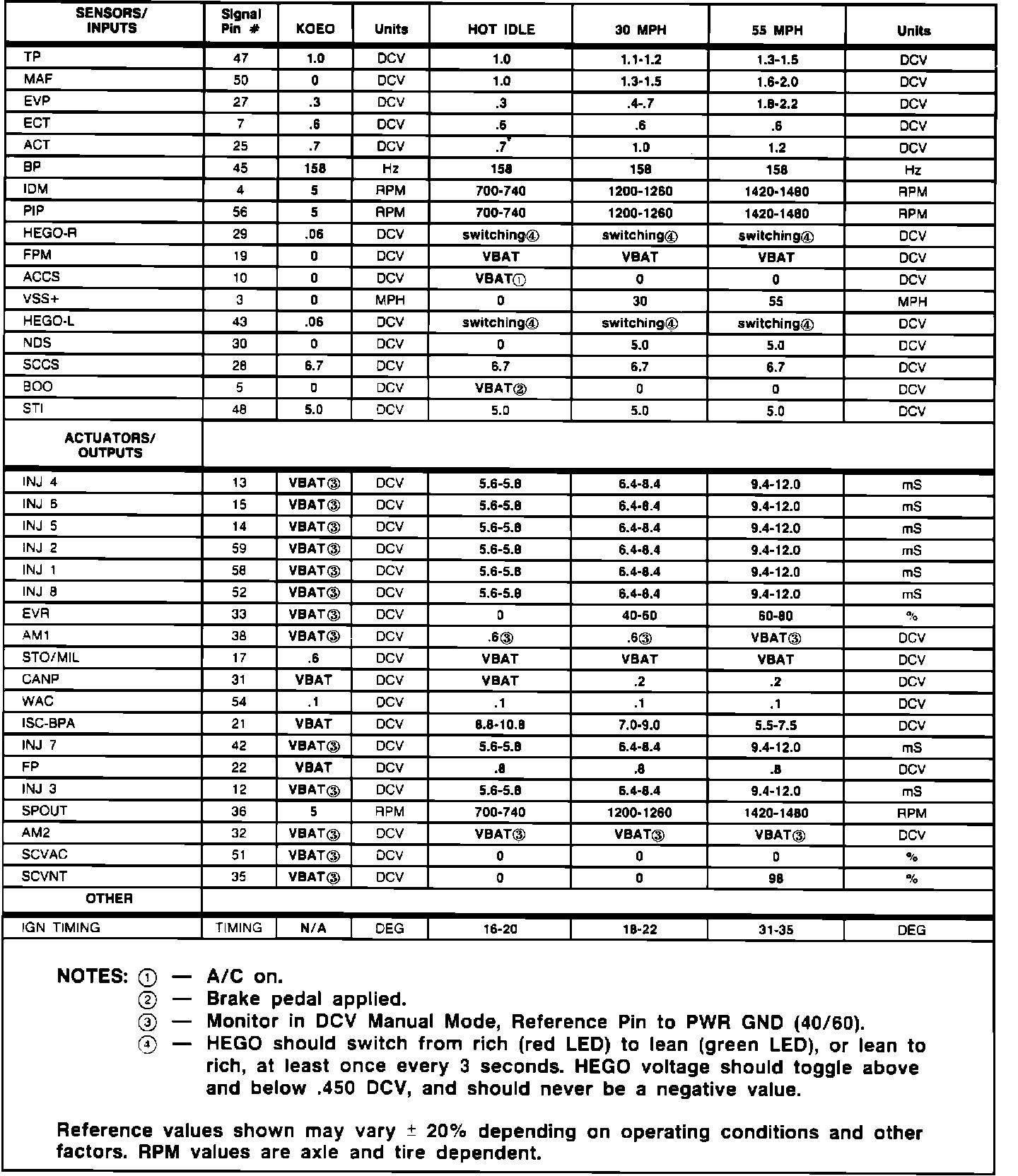

Diagnostic Reference Values:
