Colony Park V8-302 5.0L VIN F FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
>>
With Mass Air (MAF Sensor)
With Mass Air (MAF Sensor)

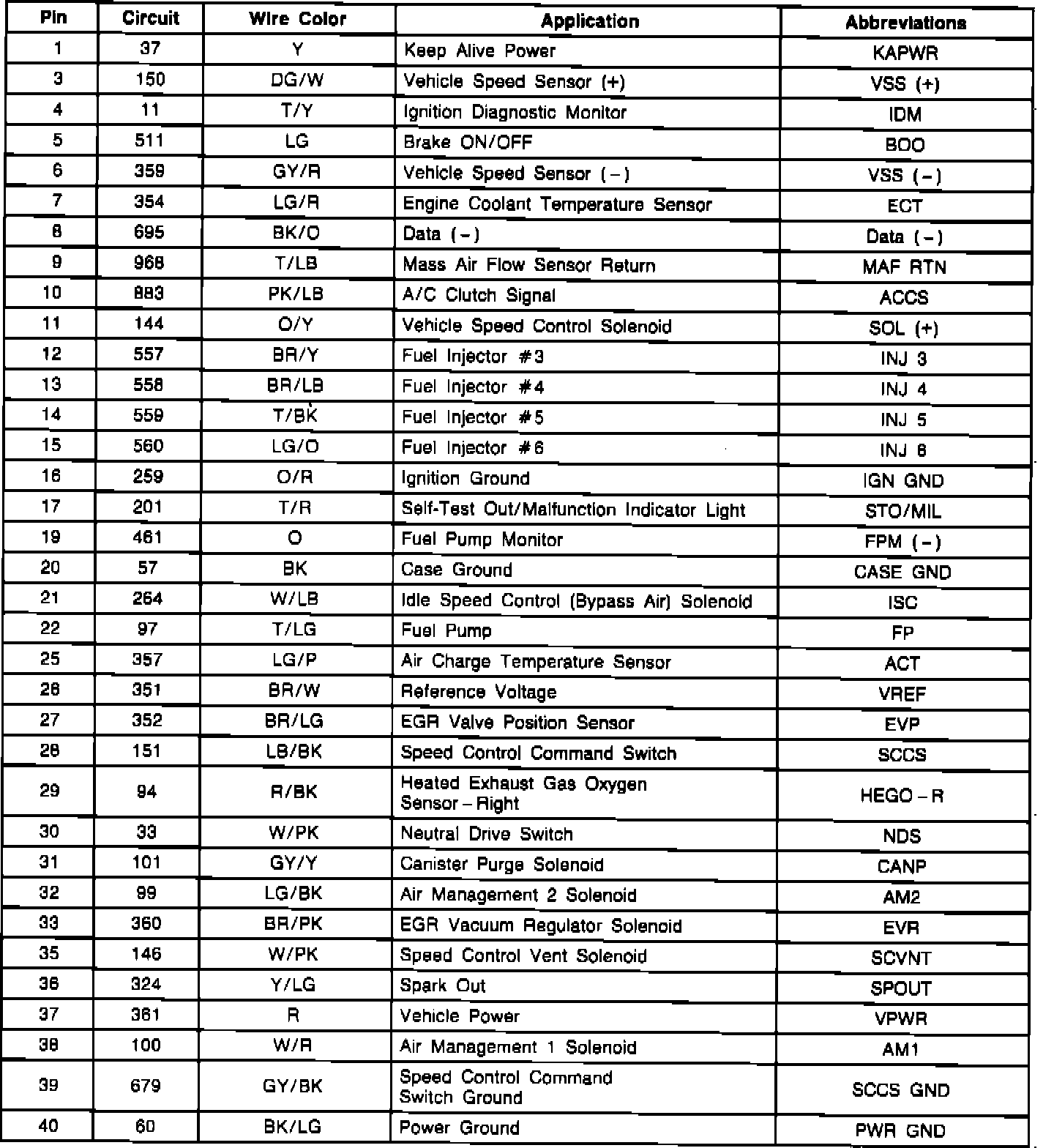

Electronic Control Assembly (ECA) Connector Pinout:

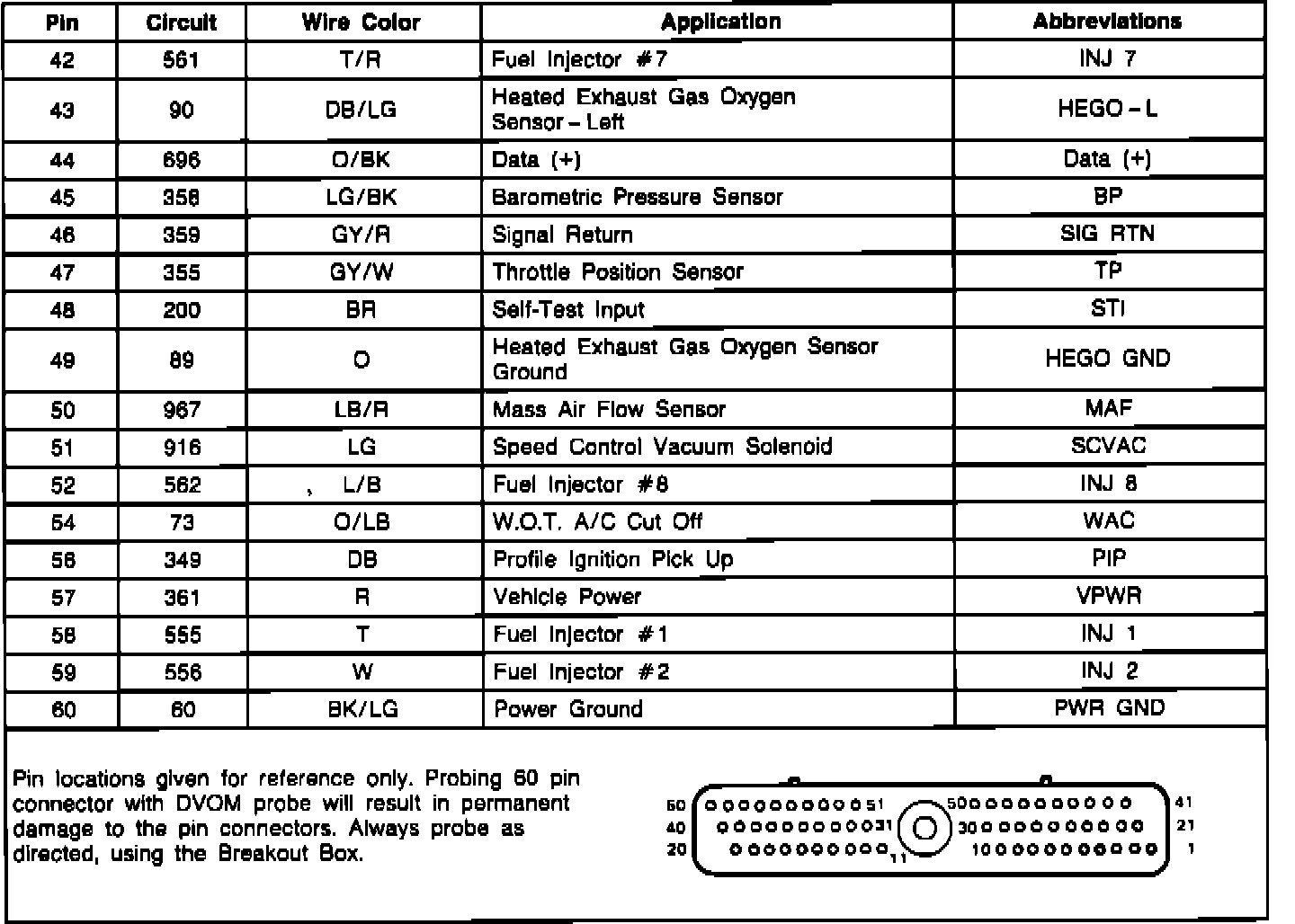

Electronic Control Assembly (ECA) Connector Pinout:
