B16: Check Heated Windshield Circuit
B16: Check Heated Windshield Circuit

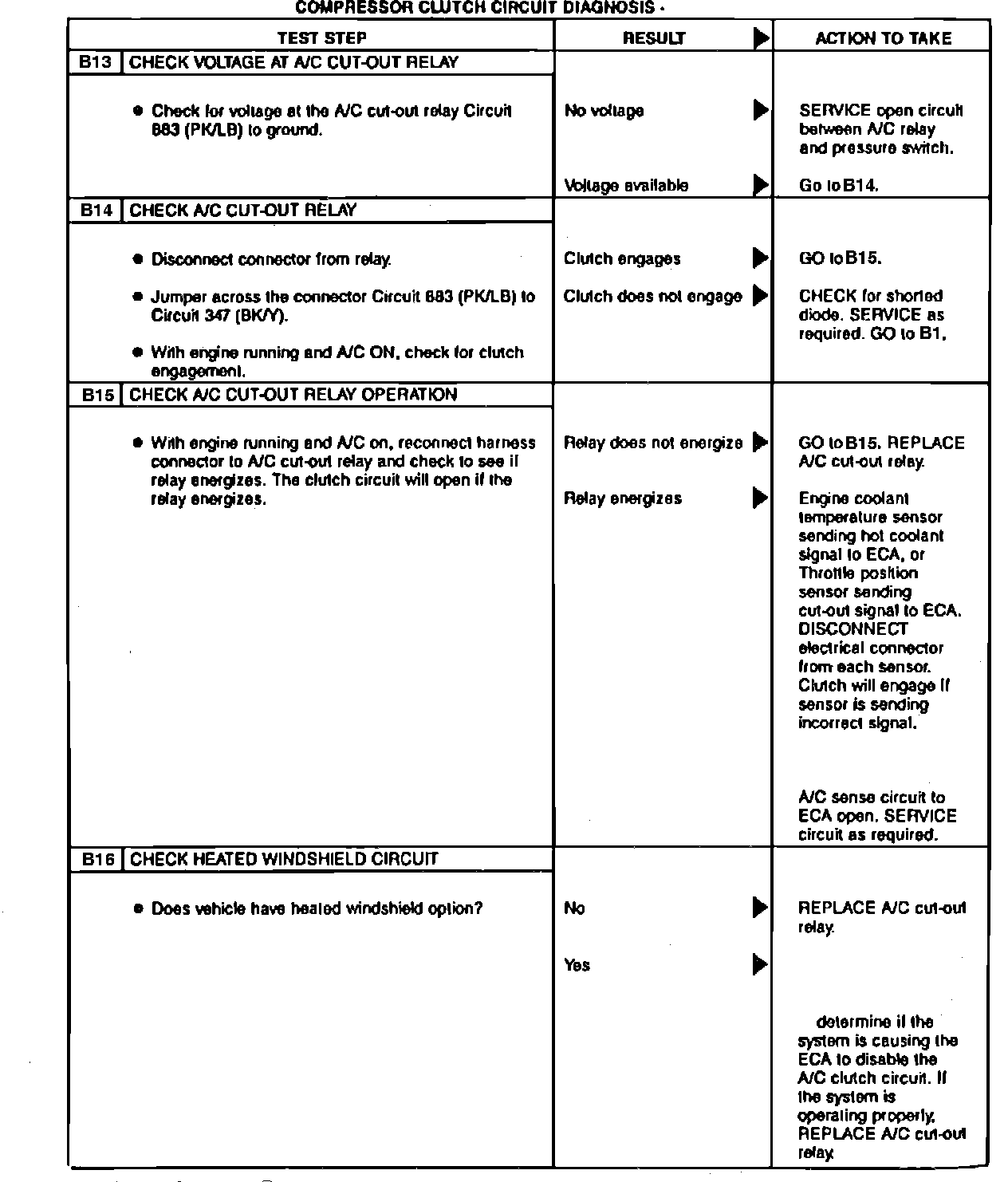

Fig. 27 Compressor clutch diagnosis (Tests B13, B14, B15 & B16):
