Federal Emissions Vehicle

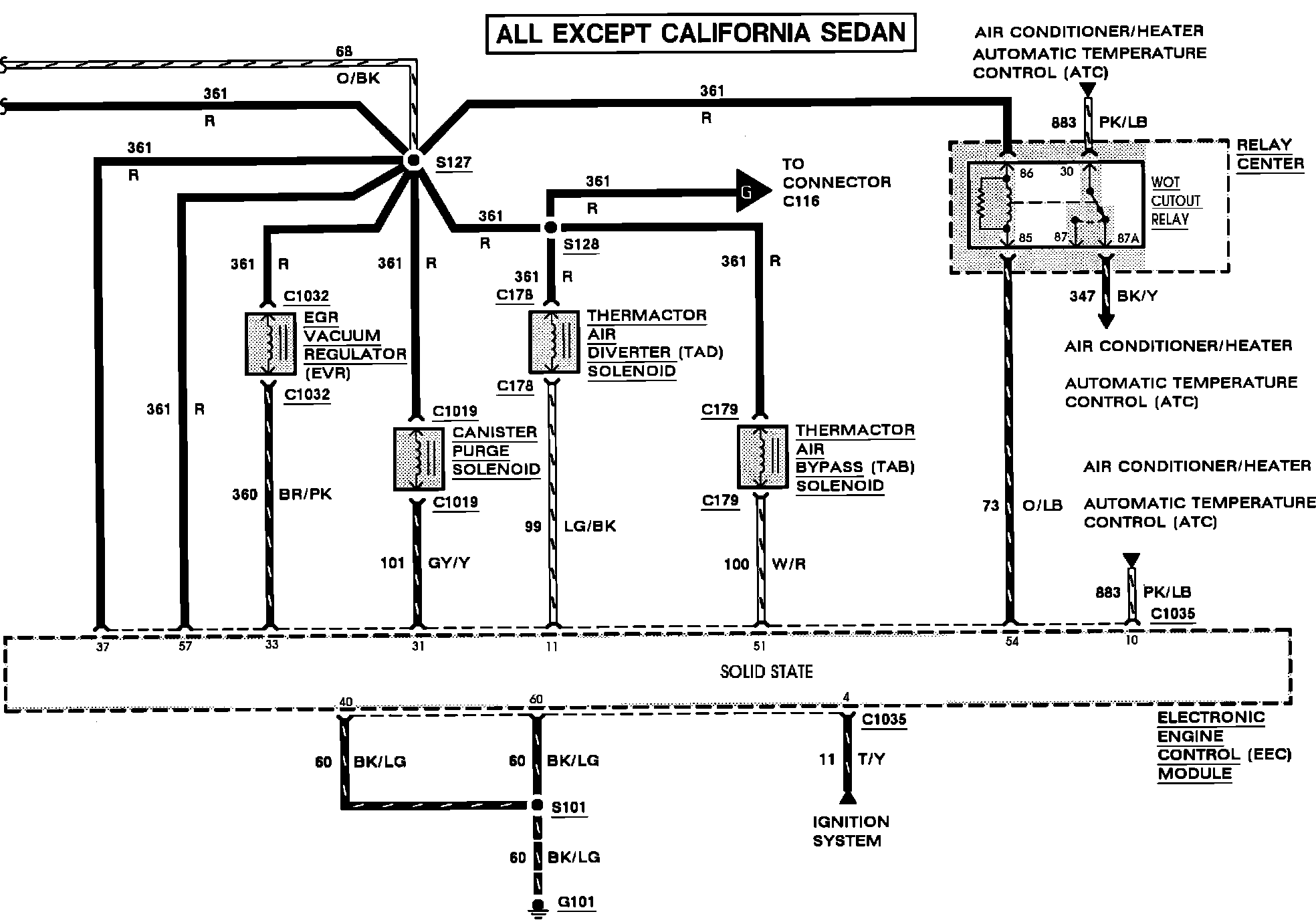

Electronic Engine Control. Except California Sedan:

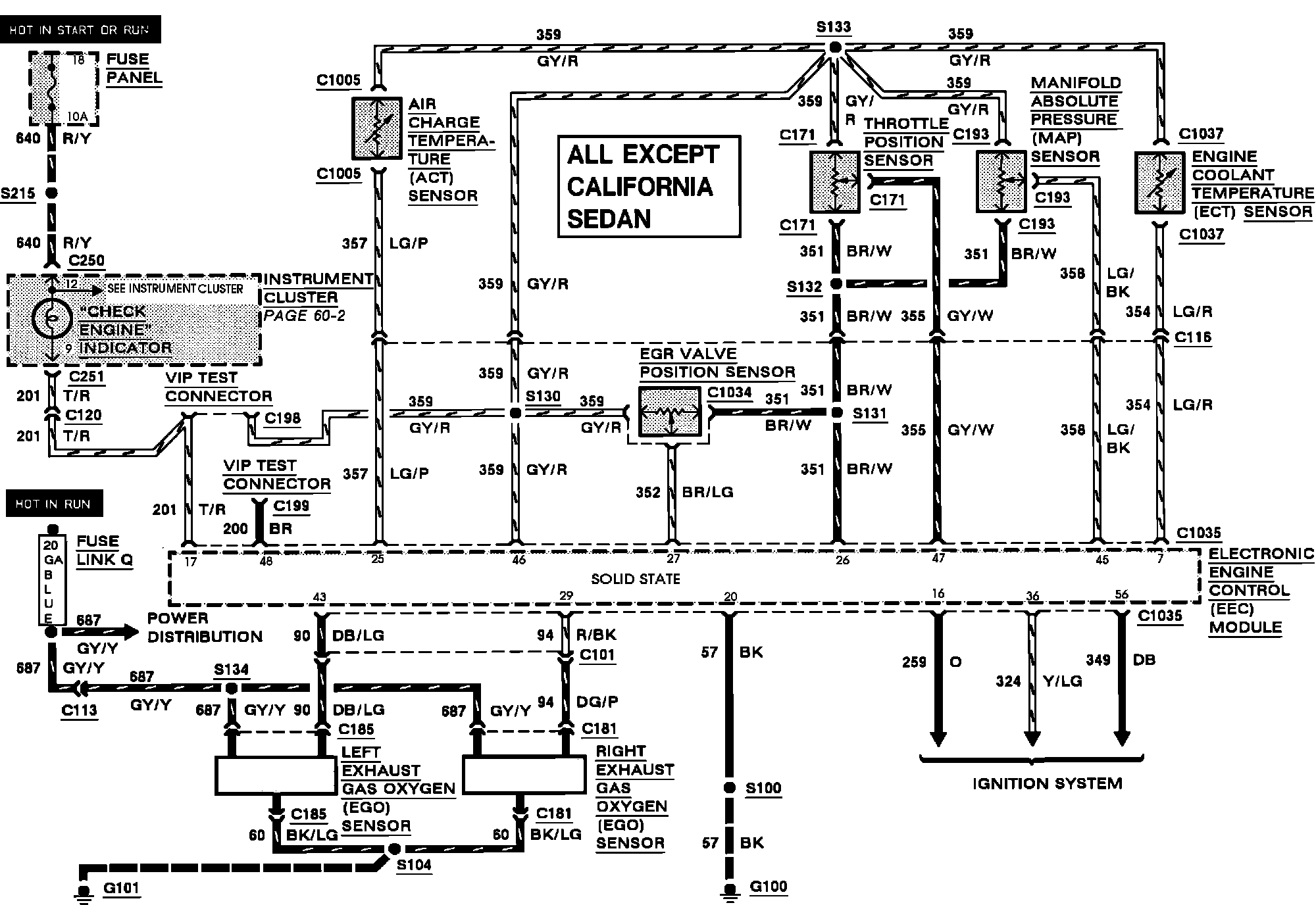

Electronic Engine Controls. Except California Sedan:

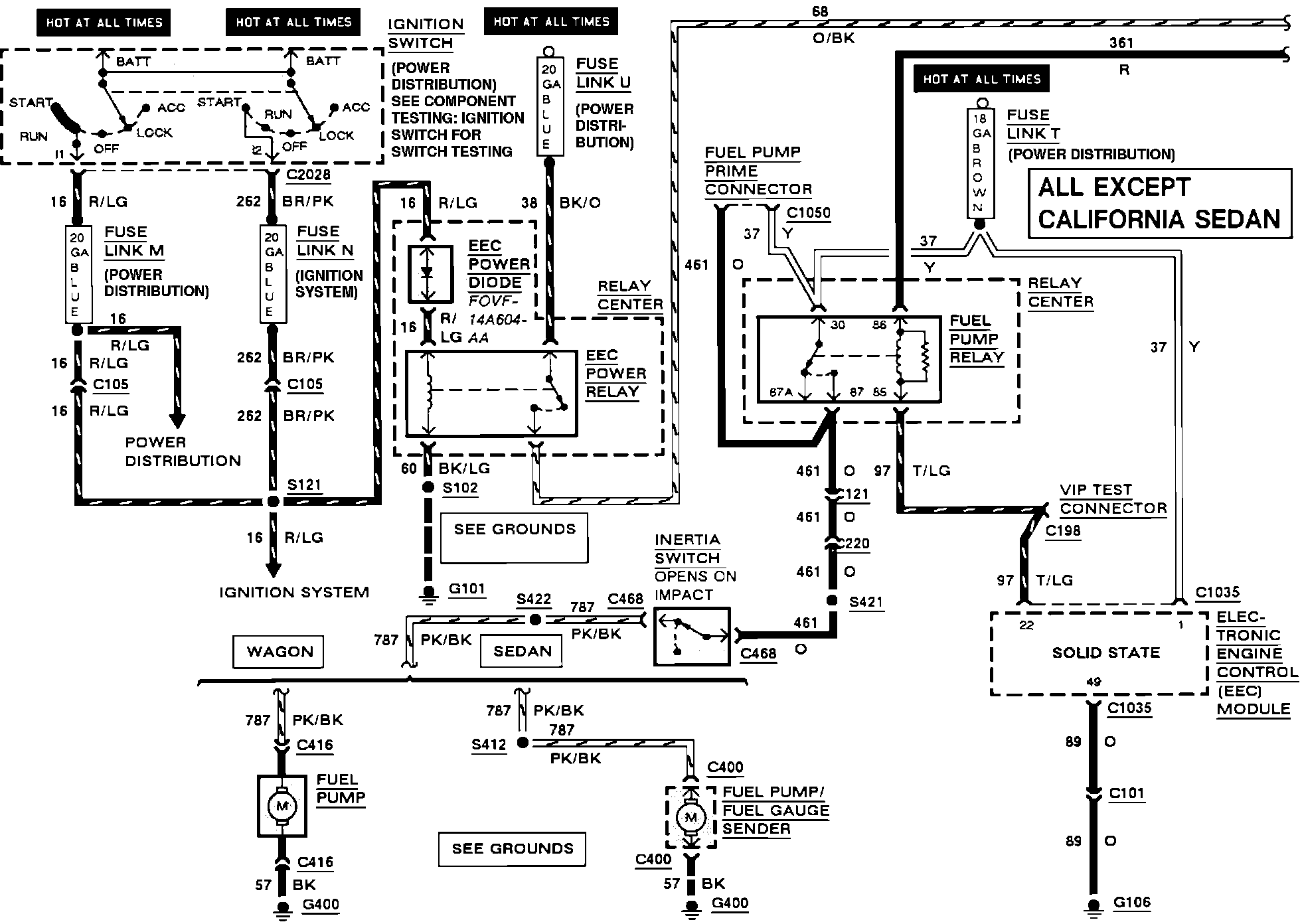

Electronic Engine Control. Except California Sedan:

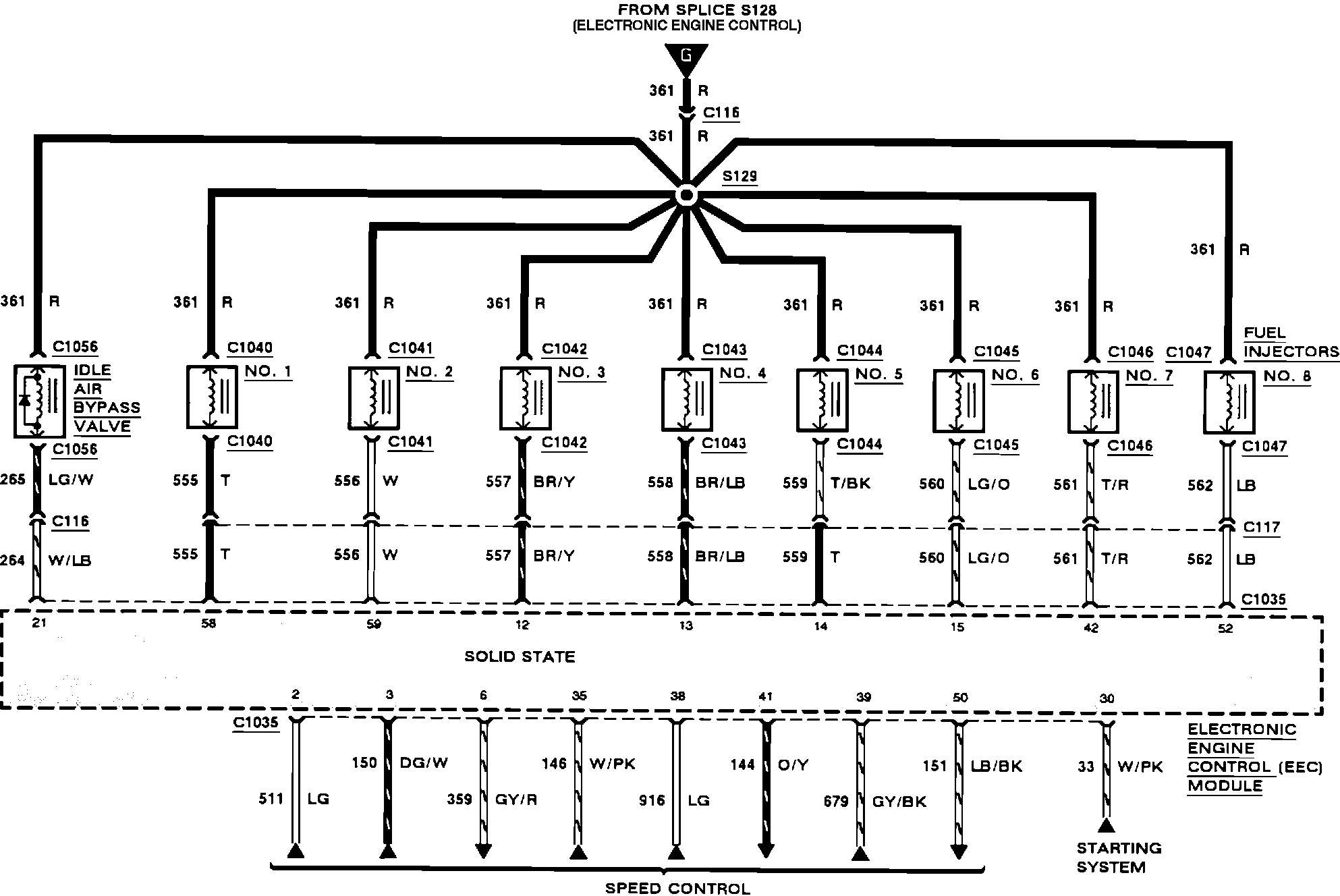

Electronic Engine Controls. Except California Sedan:
