Home >> Mercury >> 1991 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Power Distribution >> Less Automatic Headlamps >> Fuses 4 & 8

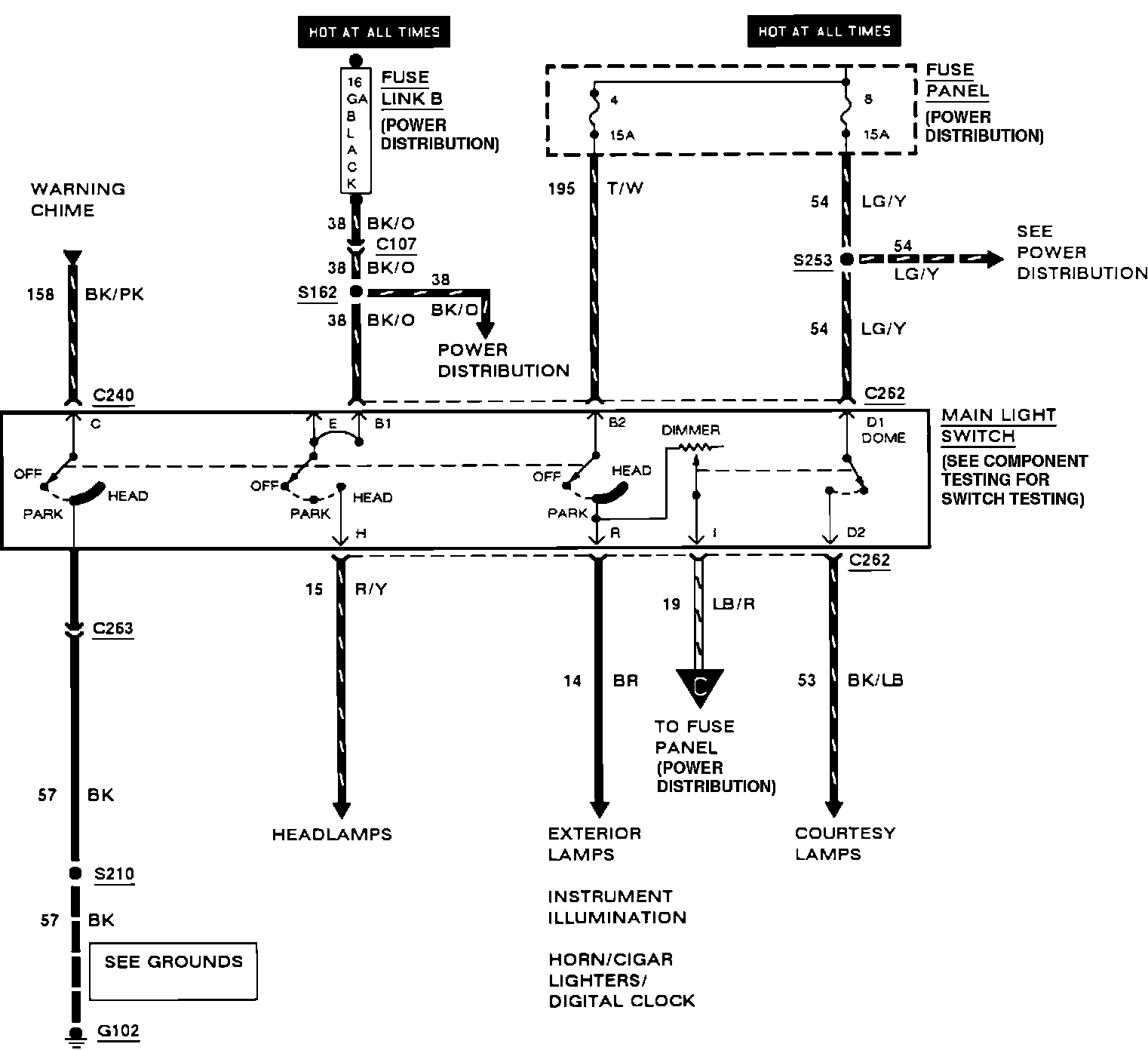

Fuses 4 & 8

Power Distribution. Less Automatic Headlamps:
