Home >> Mercury >> 1991 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> G400 >> Victoria Only

Victoria Only

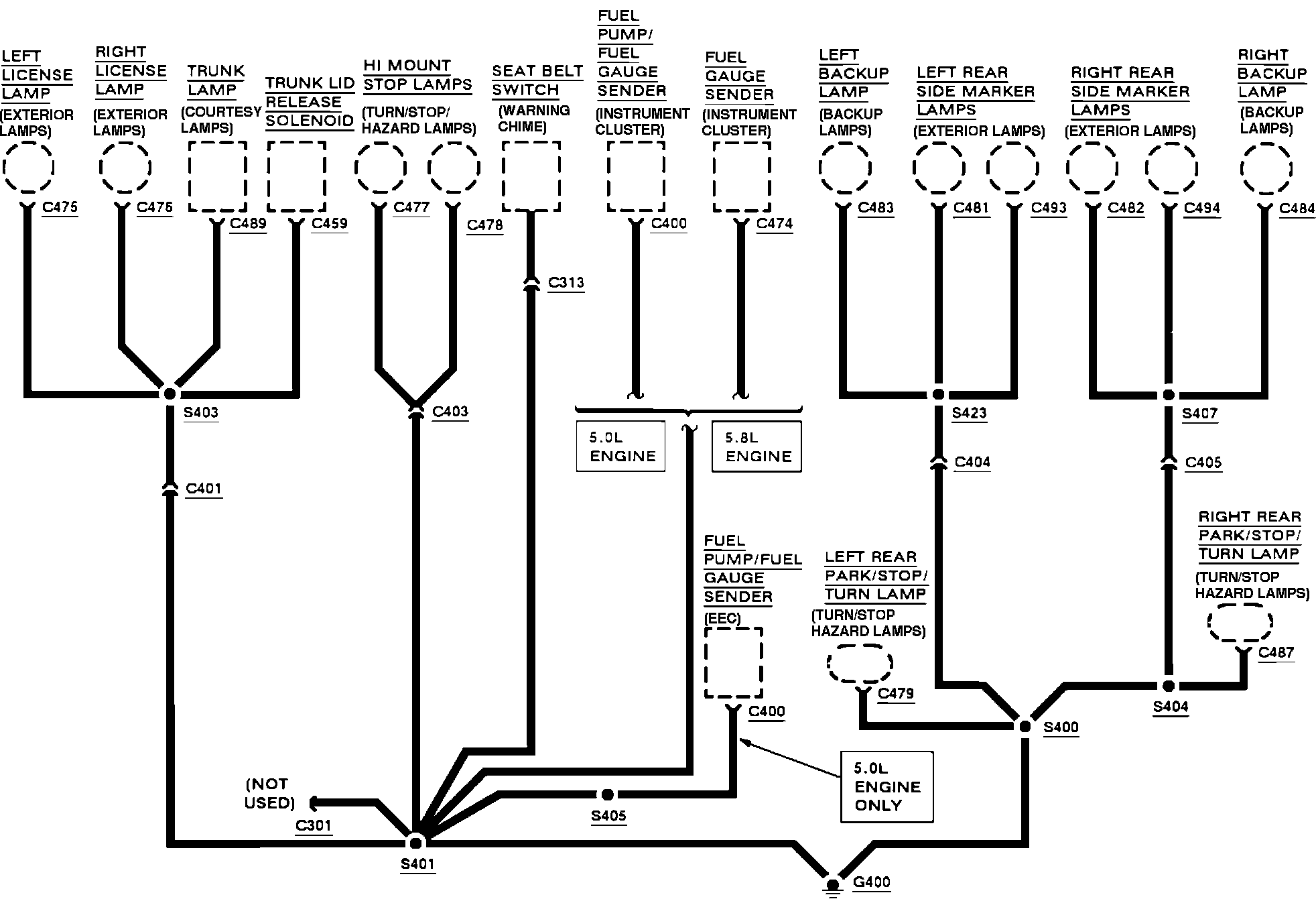

Grounds. G400. Sedan:
