Home >> Mercury >> 1991 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp >> Rear >> Wagon

Wagon

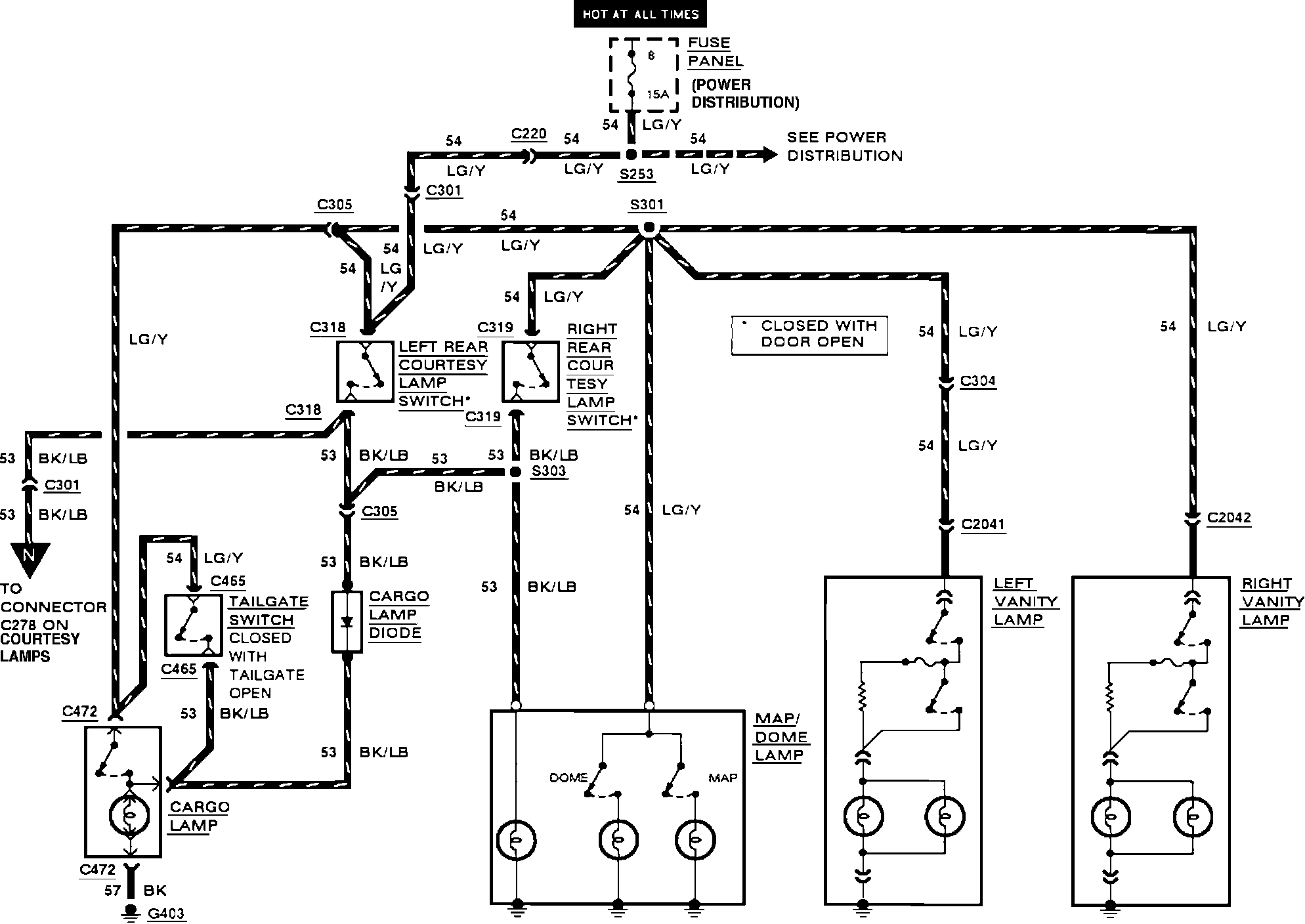

Courtesy Lamps. Rear. Wagon:
