Home >> Mercury >> 1991 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> Cassette & Electronic Search

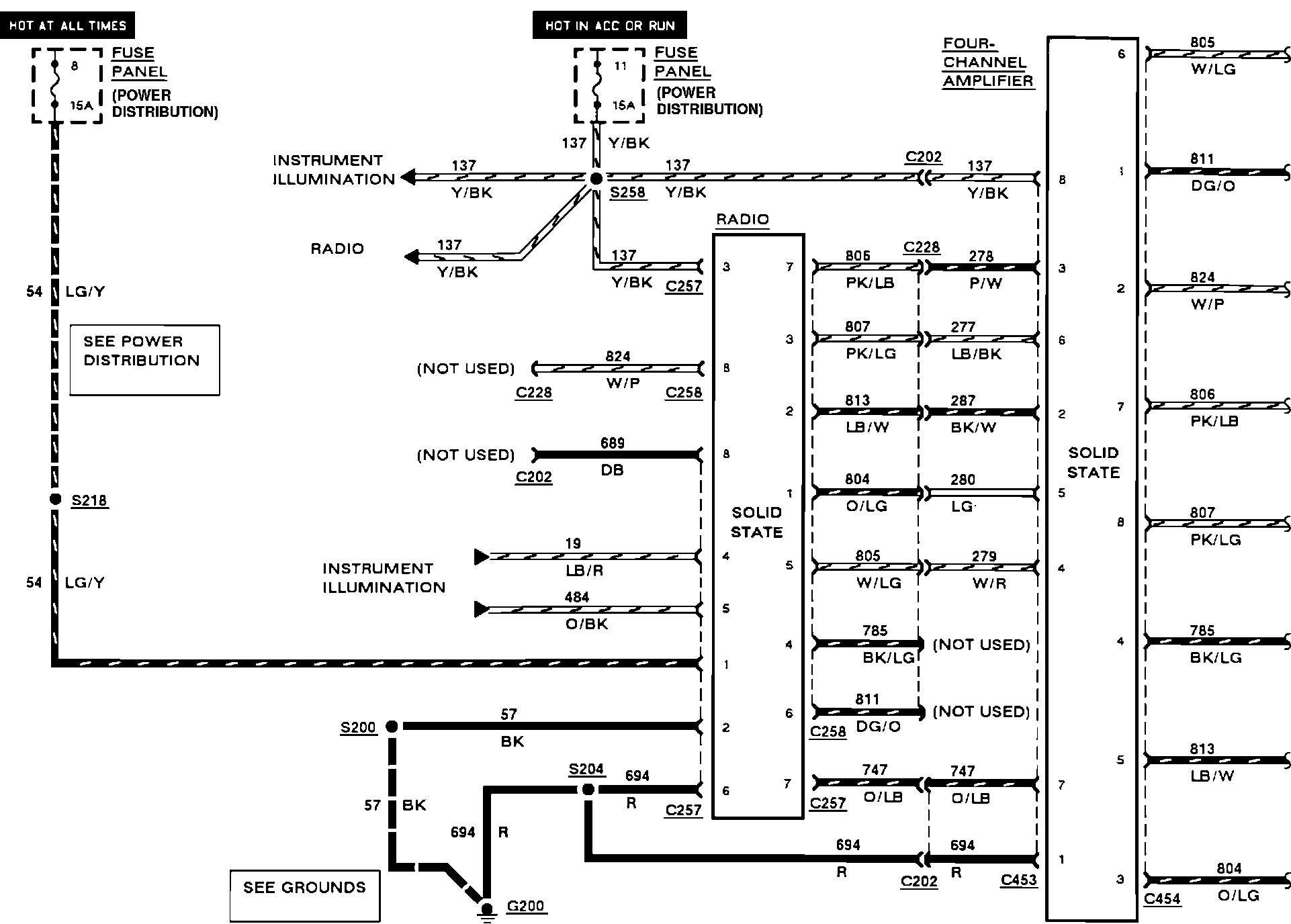

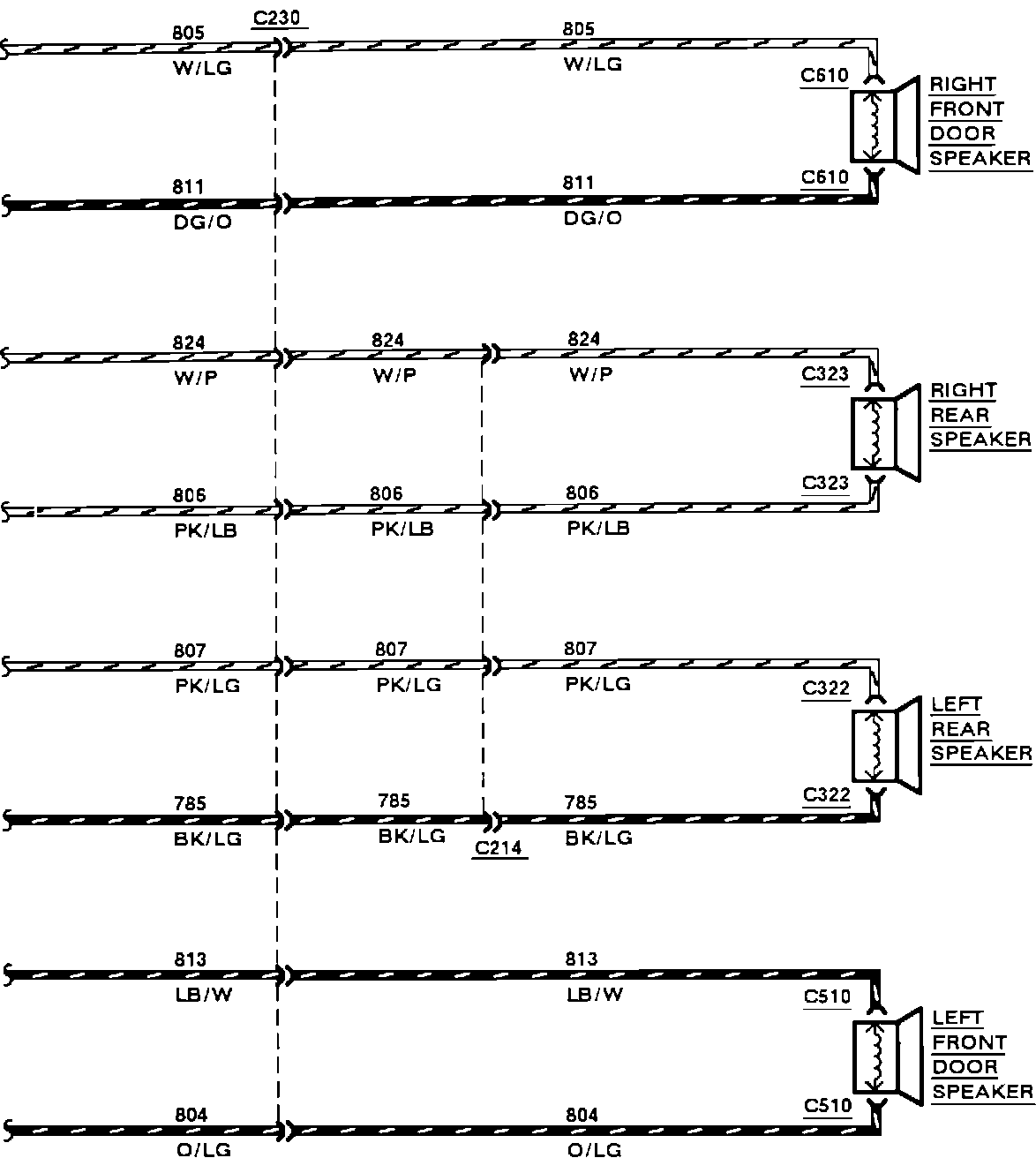

Cassette & Electronic Search

Radio. Cassette & Electronic Search:



Radio. Cassette & Electronic Search:
