Assembly

Gear & Main Shaft Assembly:

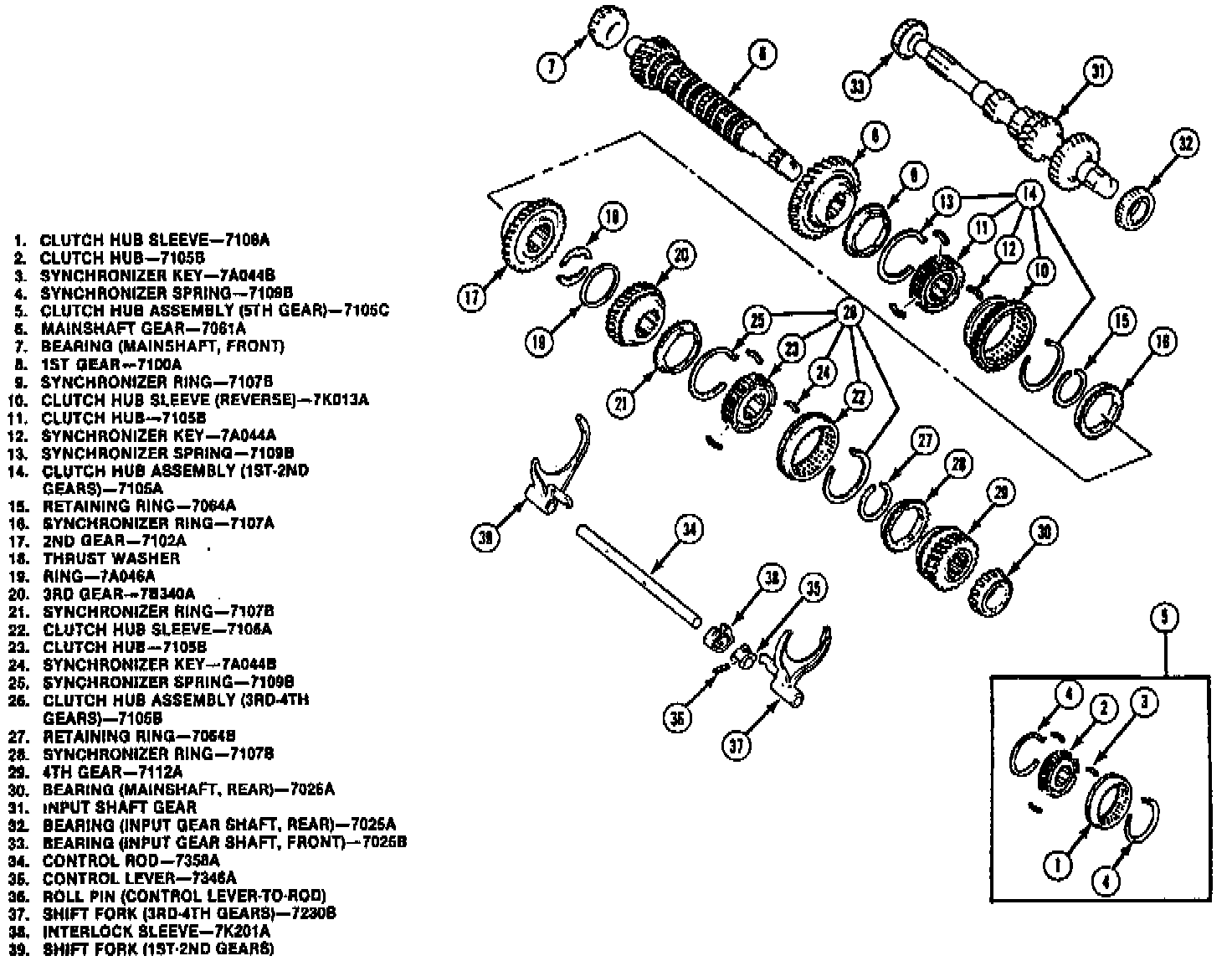

During assembly, check the the thrust clearances of each gear. Prior to assembly, thoroughly clean all parts and inspect their condition. Lightly oil gear bores and other parts with clean transaxle fluid. Follow numeric sequence in image, for general assembly procedures.
