Clutch Disc: Service and Repair

REMOVAL and INSTALLATION
1. Disconnect battery ground cable.
2. Remove transaxle from vehicle.
3. Install flywheel lock tool T74P-6375-A or equivalent, into transaxle mounting hole on engine, then engage tooth of locking tool into flywheel ring gear.

NOTE: To avoid dropping clutch disc when bolts are removed, use clutch aligning tool T87C-7137-A or equivalent.

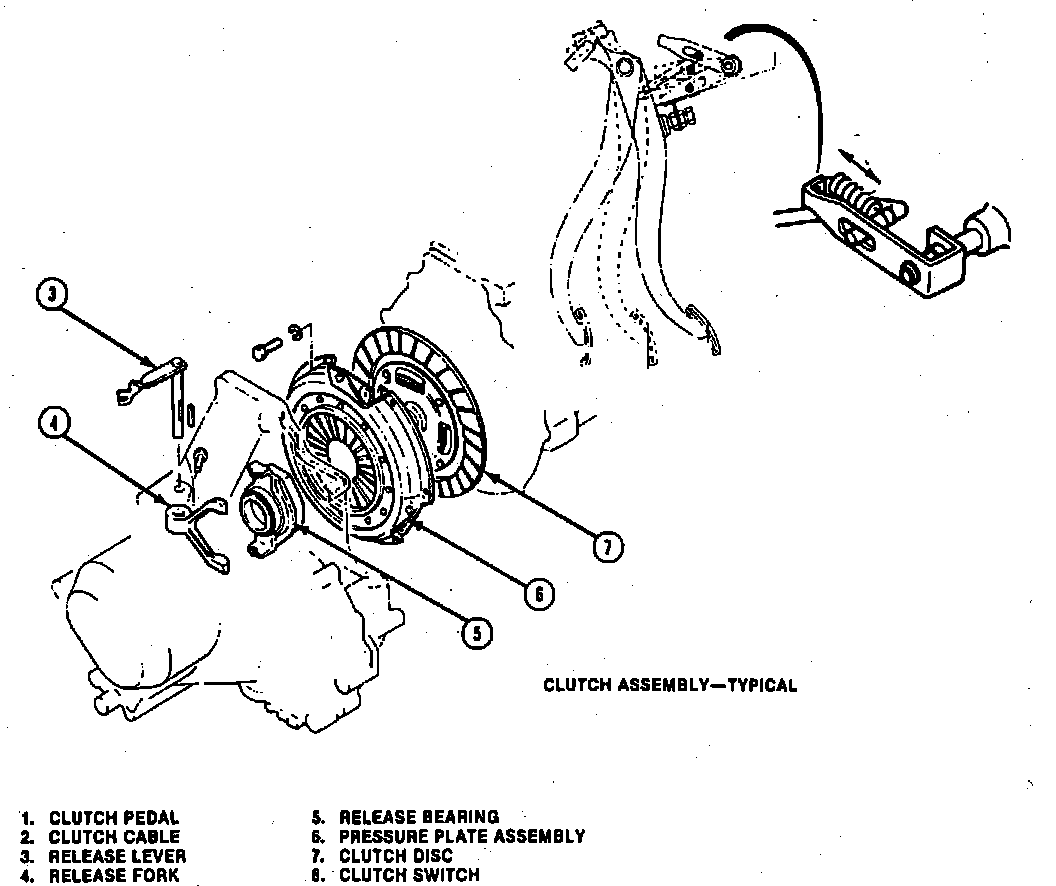

Clutch Assembly:

4. Remove bolts attaching pressure plate to flywheel, then remove pressure plate assembly.
5. Remove clutch disc and clutch aligning tool.

NOTE: Use care when removing the last bolt to prevent dropping flywheel.

6. Reverse procedure to install. Torque pressure plate assembly attaching bolts to 13-20 ft lbs.
