Home >> Mercury >> 1991 >> Capri L4-1597cc 1.6L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinpoint Tests >> OP 4 - Operational Test

OP 4 - Operational Test

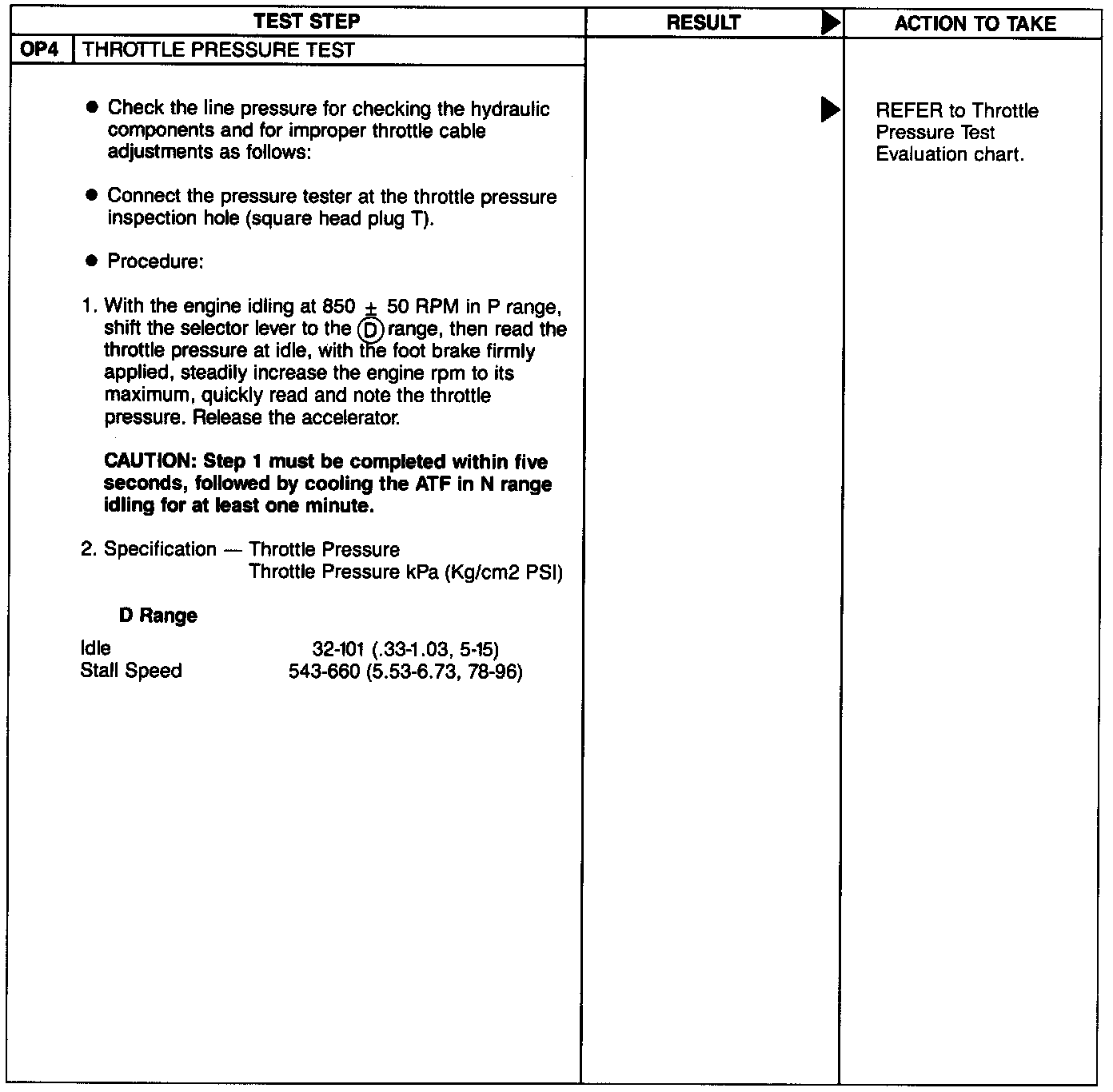

THROTTLE PRESSURE TEST

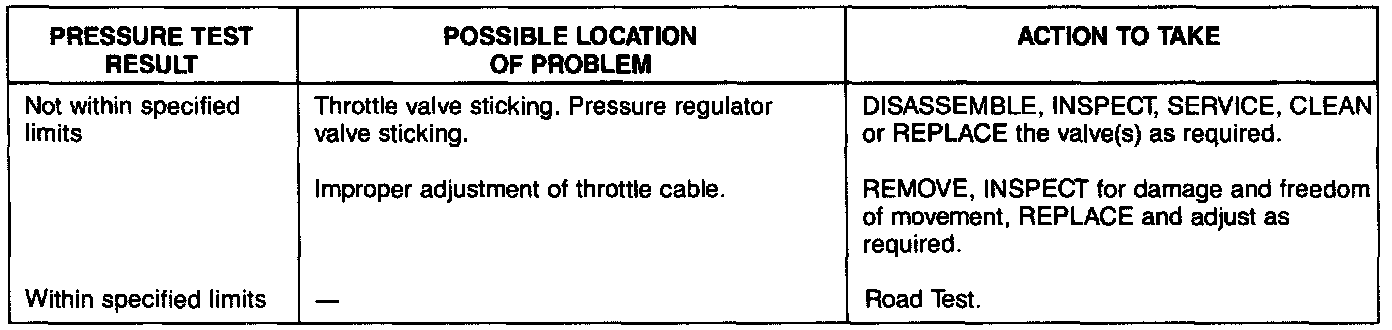

TEST EVALUATION CHART
