A/T - 4EAT Diagnosis Revision

90ford41 SHOP MANUAL - 1991 - PAGES 17-27-10 AND 17-27-11 - REVISED TEST STEPS FOR DIAGNOSIS OF 4EAT AUTOMATIC TRANSAXLE
Article No. 90-25B-4
LINCOLN-MERCURY: 1991 CAPRI


ISSUE: The Self-Test (Quick Test) for diagnosis of the 4EAT Automatic Transaxle on Page 17-27-10 and 17-27-11 of the 1991 Capri Shop Manual are incorrect.

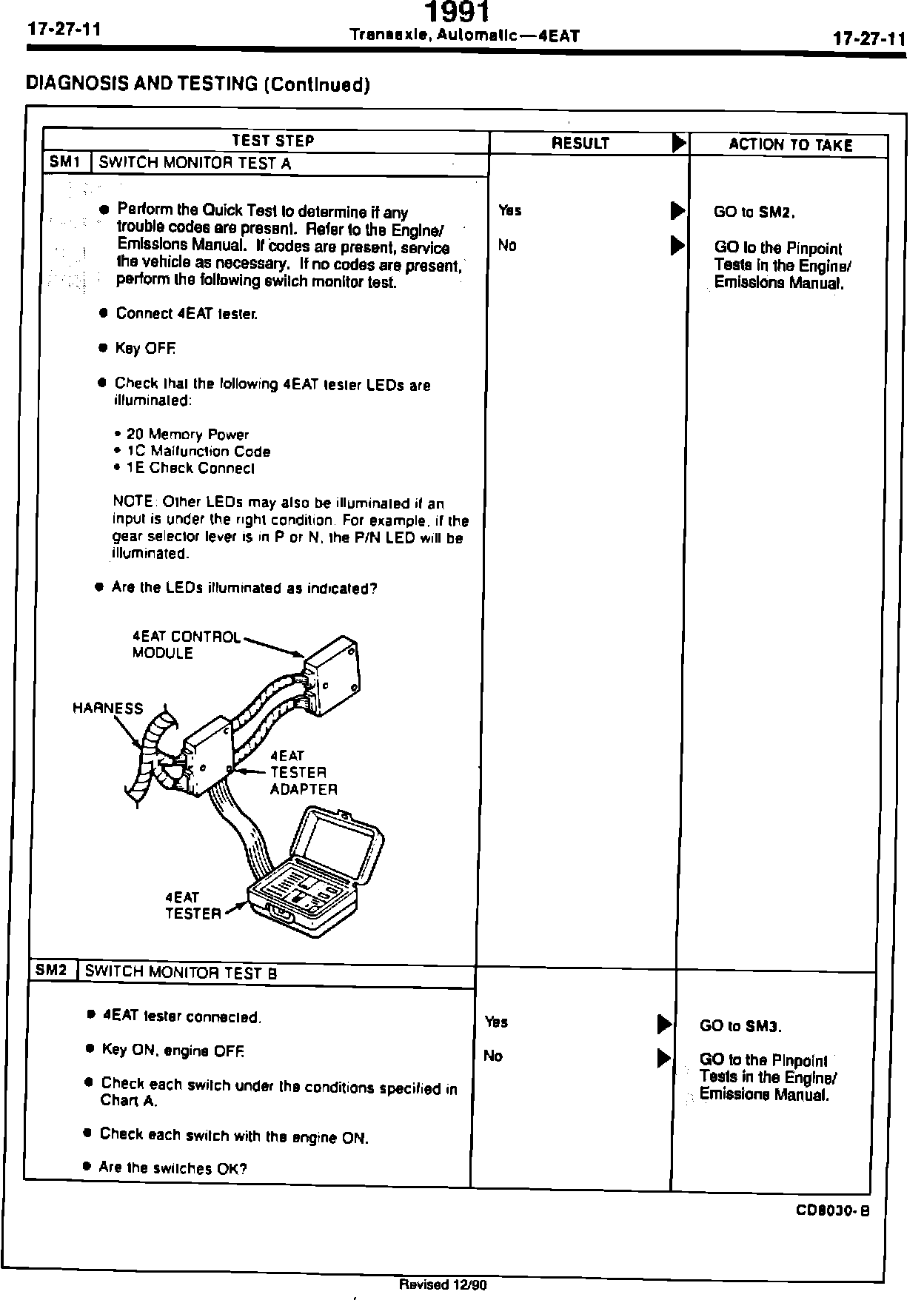

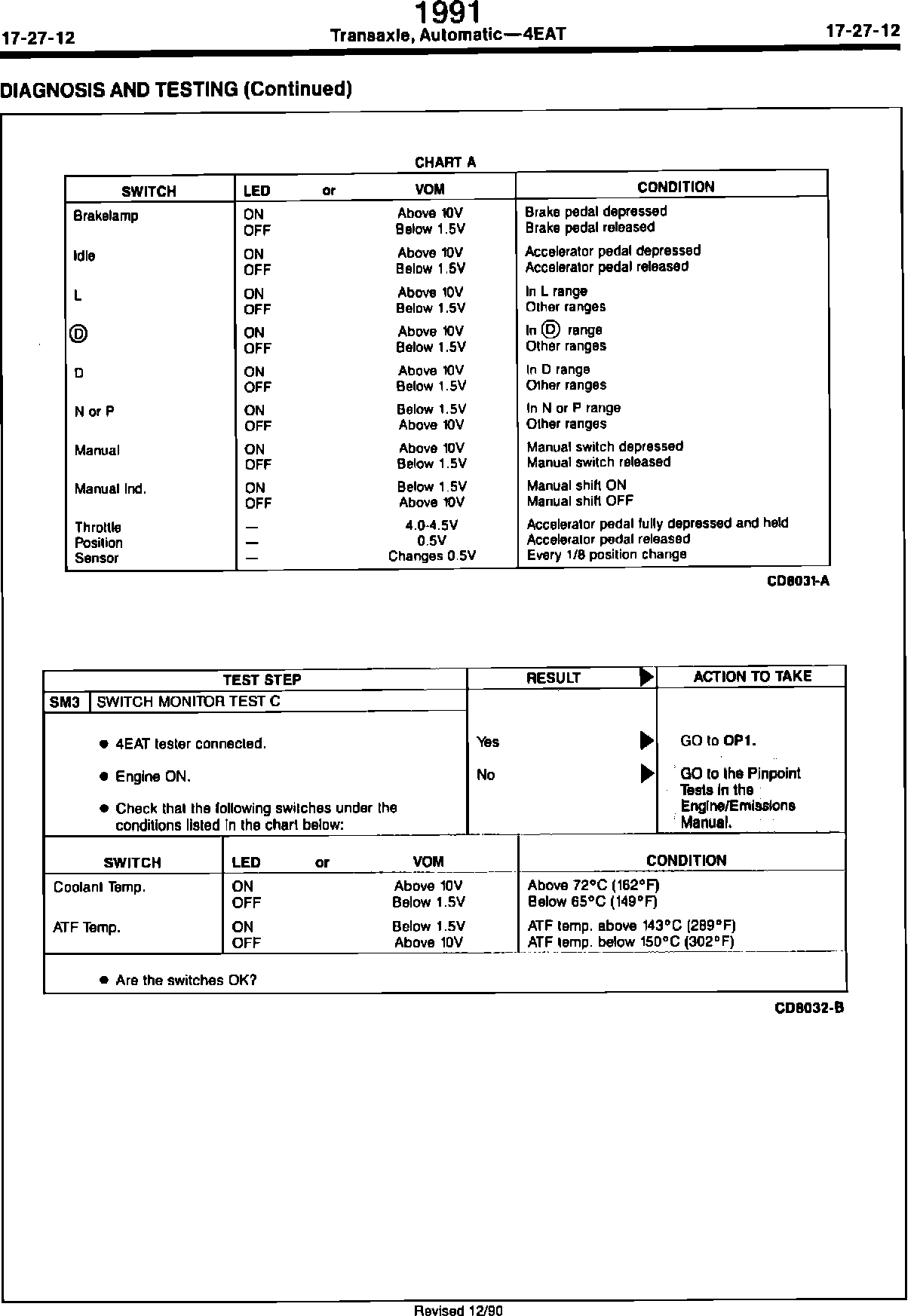

ACTION: Refer to the pages following this TSB article for the revised steps.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 590000
