Bearing Stator and Support

DISASSEMBLE

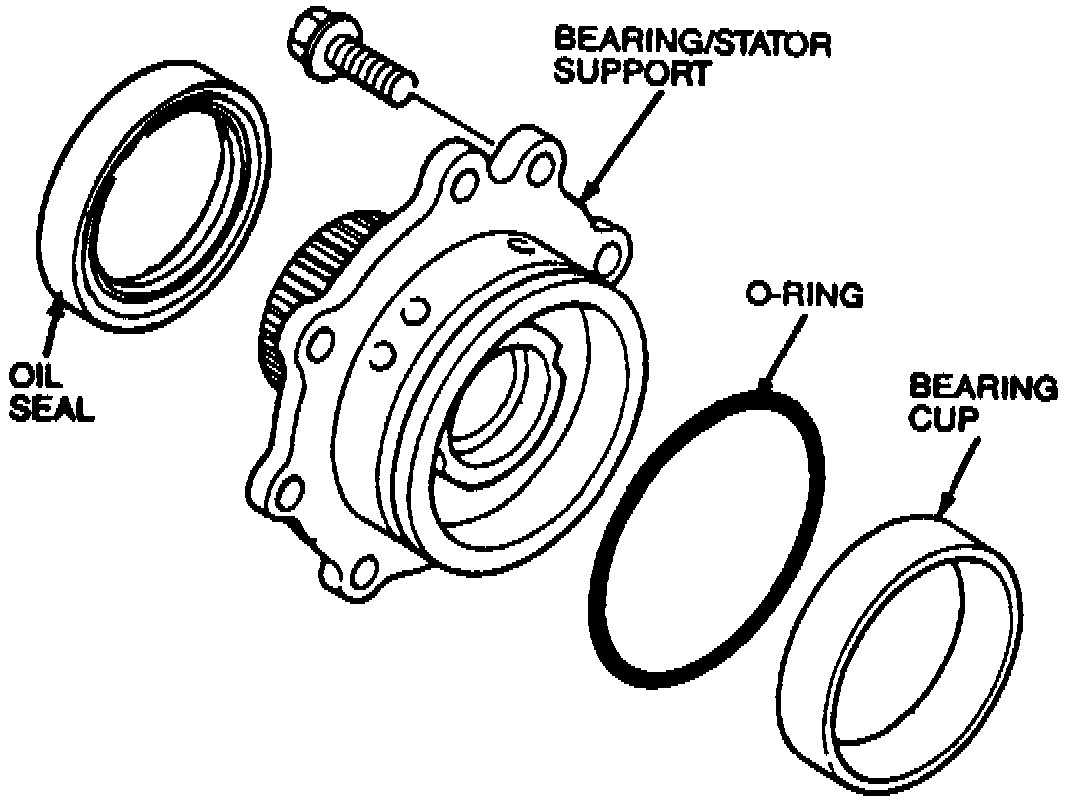

Exploded View Of Bearing And Stator Support:

1. Disassemble bearing cover assembly as shown in the Exploded View Of Bearing And Stator Support image.
2. Remove bearing outer race with suitable pin punch and hammer.
3. Inspect bearing cover, outer race, and oil seal for damage or wear.

ASSEMBLE
1. Reverse procedure to assemble, noting the following:
a. Press bearing outer race into cover.
b. Press oil seal into cover with oil seal installer T80T-4000-E or equivalent.
