Home >> Mercury >> 1991 >> Capri L4-1597cc 1.6L DOHC >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Meter Fuse

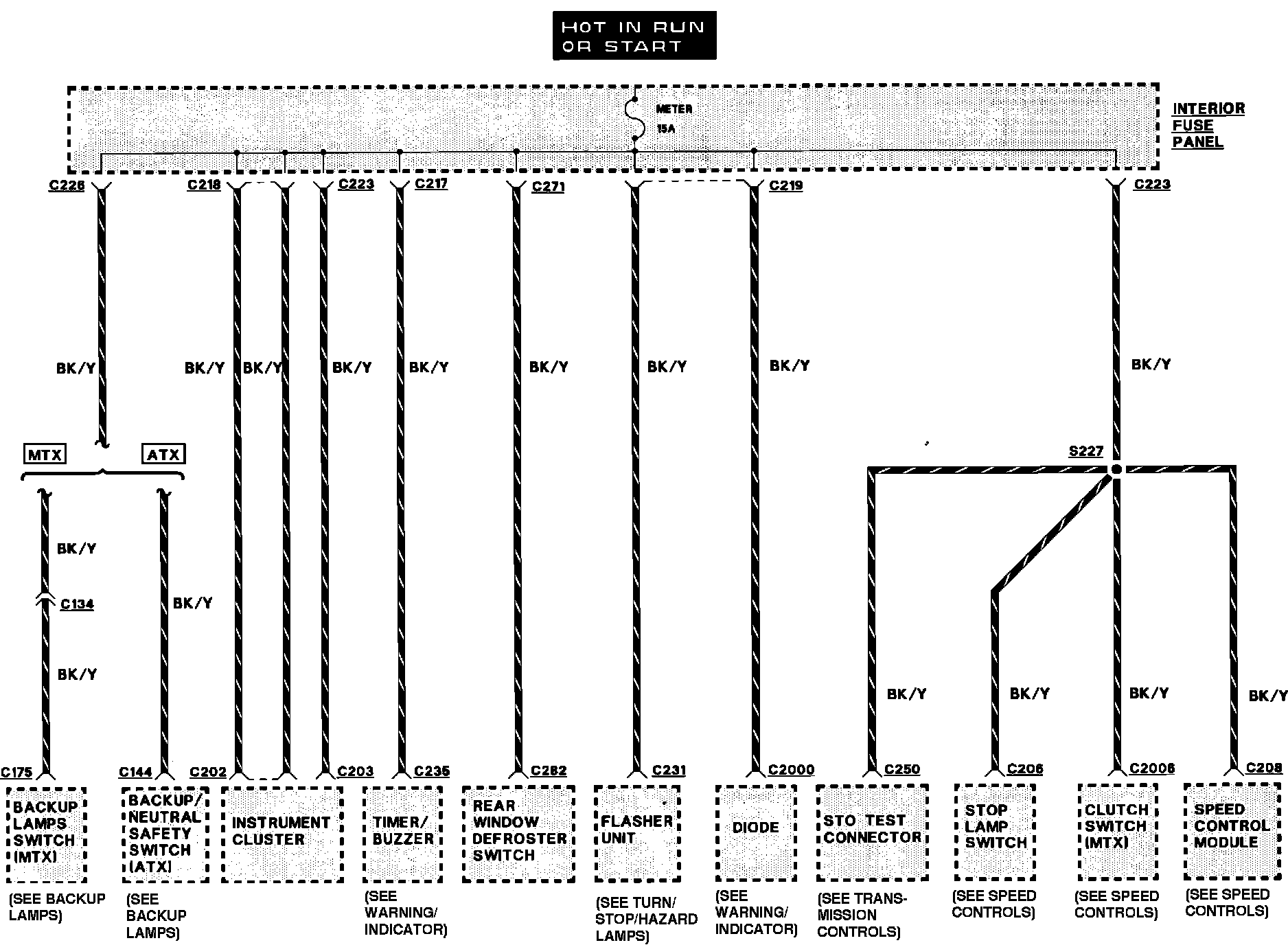

Meter Fuse

Charging System & Power Distribution:
