Pressure Switch Voltage Check/Inspection - Revision

9207ford01

Article No.
91-25B-2

12/20/91

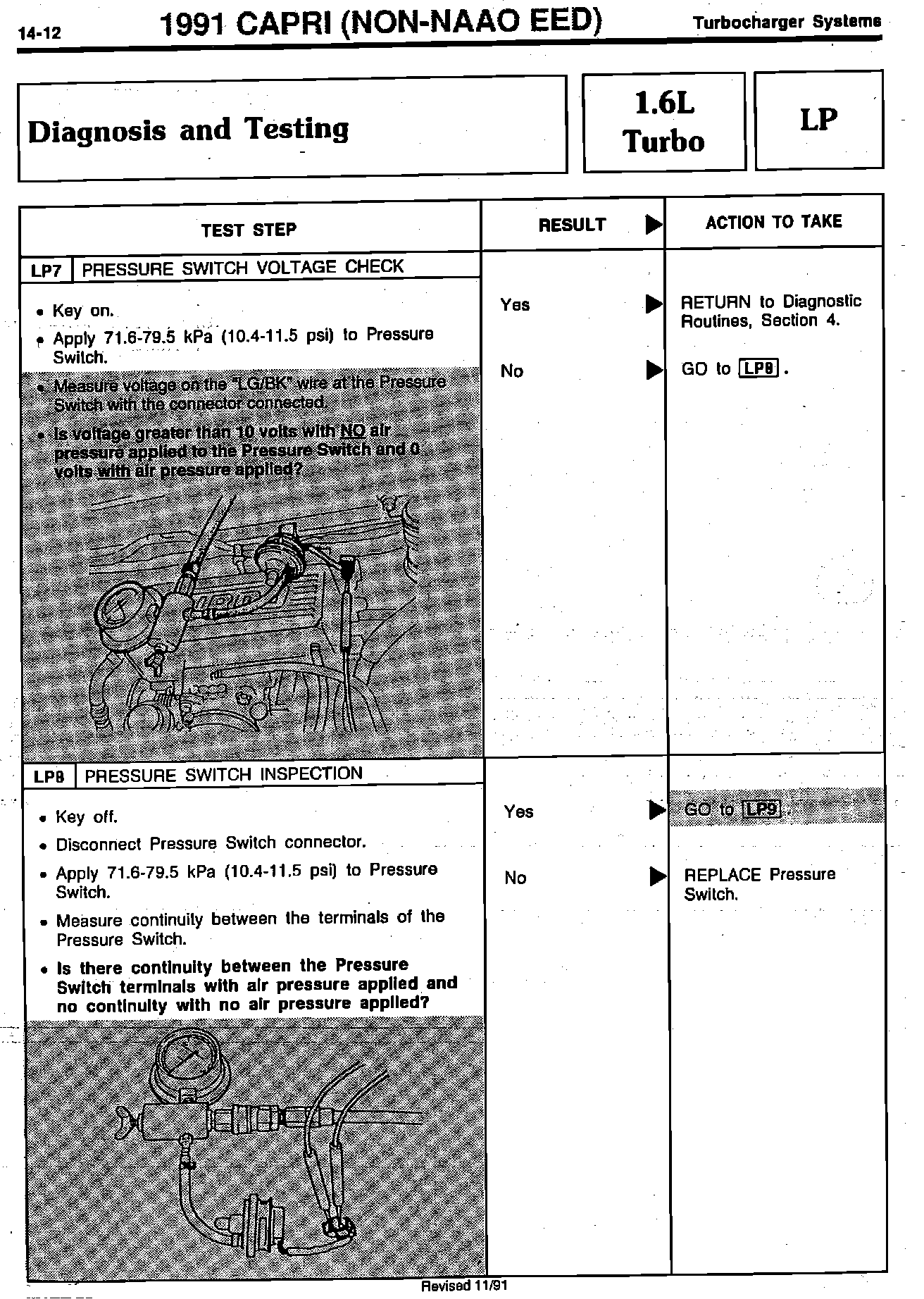

ENGINE/EMISSIONS DIAGNOSIS MANUAL NON-NAAO - 1991 - PAGES 14-12 AND 14-12A (NEW PAGE) - TEST STEPS LP7 AND LP8 REVISED/TEST STEP LP9 ADDED


LINCOLN-MERCURY: 1991 CAPRI

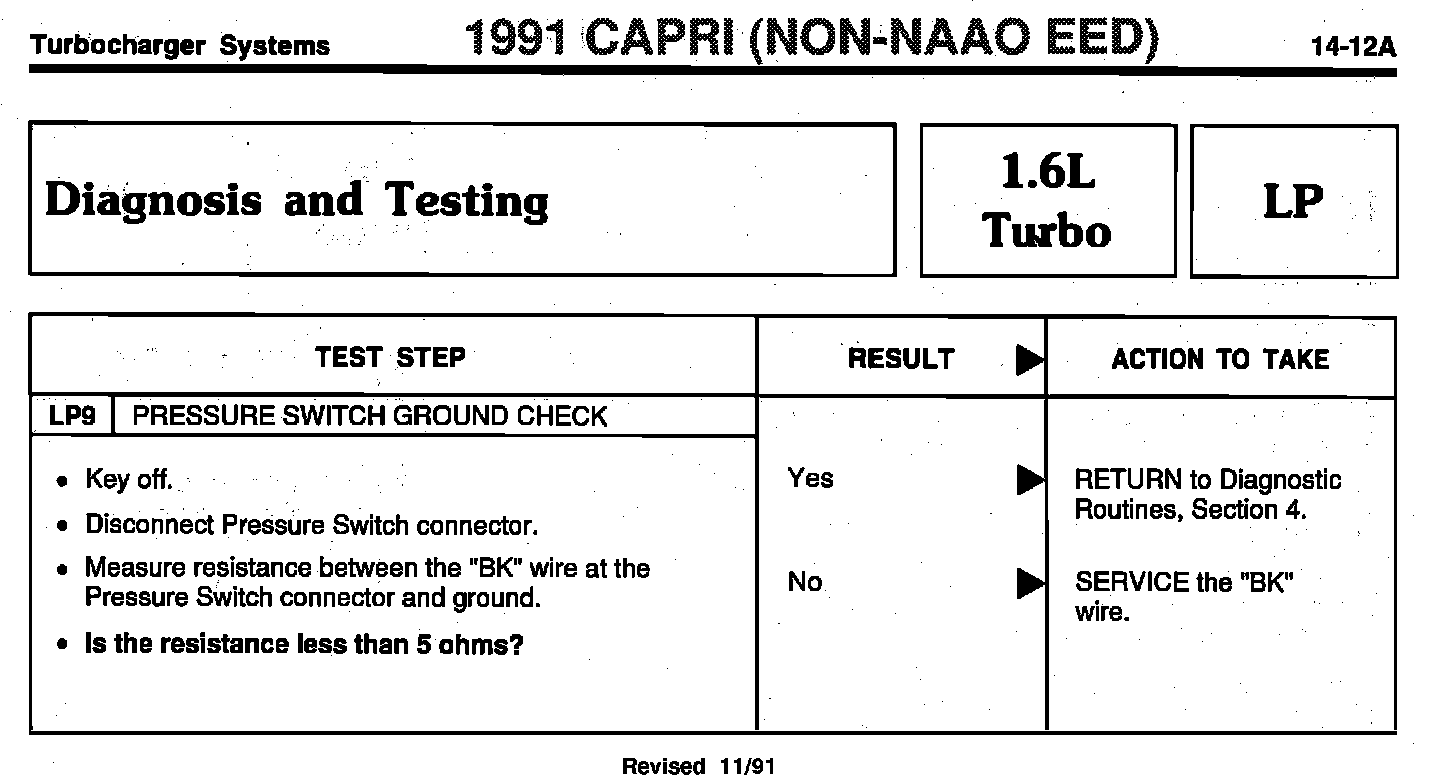

ISSUE: Diagnosis and Testing Steps LP7 and LP8 require revisions to the text and illustrations to clarify Pressure Switch Voltage Check and Pressure Switch Inspection procedures. Test Step LP9 has been added to check the ground at the Pressure Switch. Page 14-12 of the 1991 Non-NAAO Engine/Emissions Diagnosis Manual is affected; Page 14-12A is a new page.


ACTION: Refer to the images in this TSB article for the revised information.


OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 690000
