Fuel Pump Relay: Locations

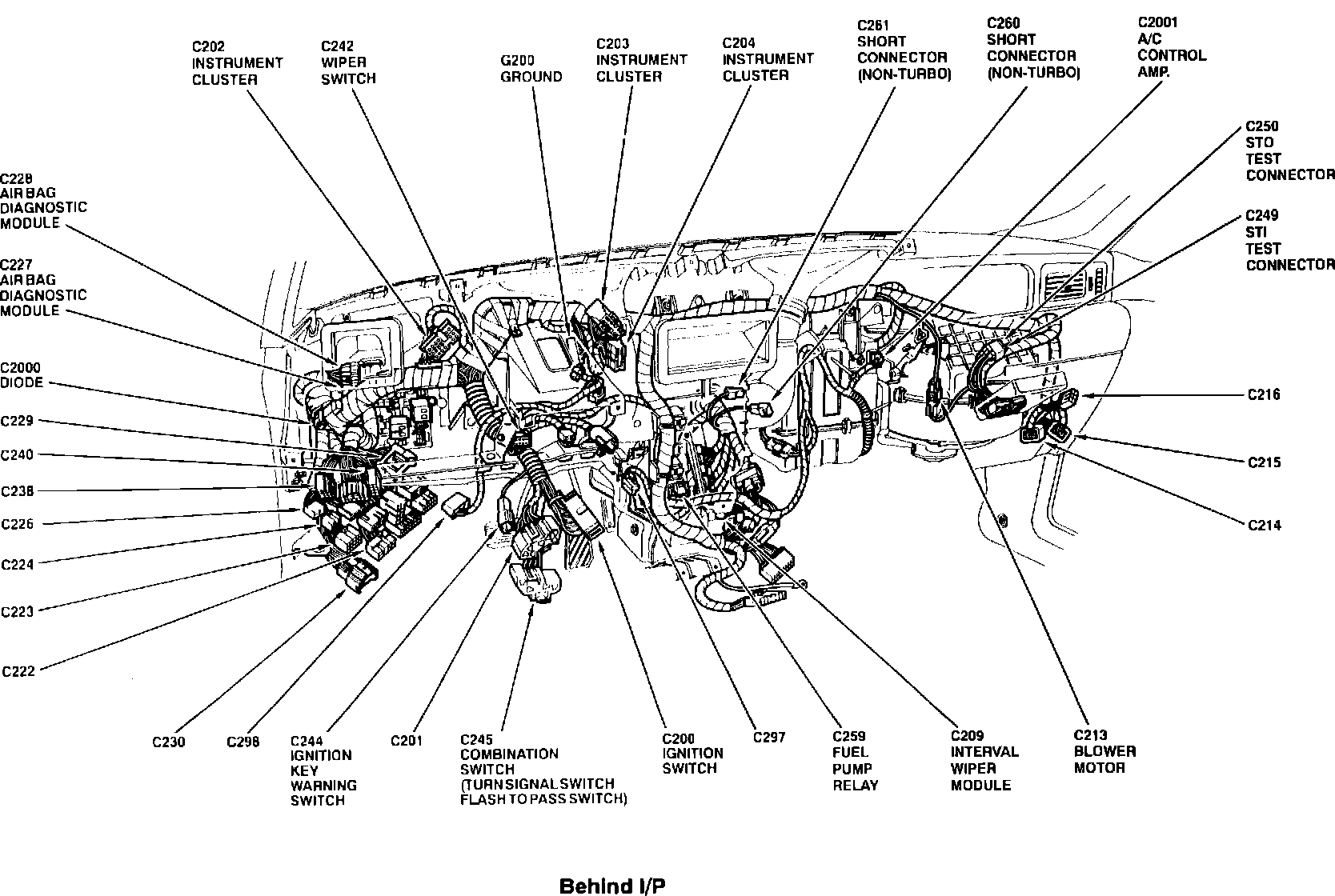

Under Dash Panel Components:





The Fuel Pump Relay is located at the Left side of Instrument Panel, at the Relay Block.
