VPWR - Vehicle Power
>>
VPWR5 - Ignition Power to Main Relay
VPWR5 - Ignition Power to Main Relay
*** UPDATED BY TSB# 91-14-B1 DATED 08-30-93

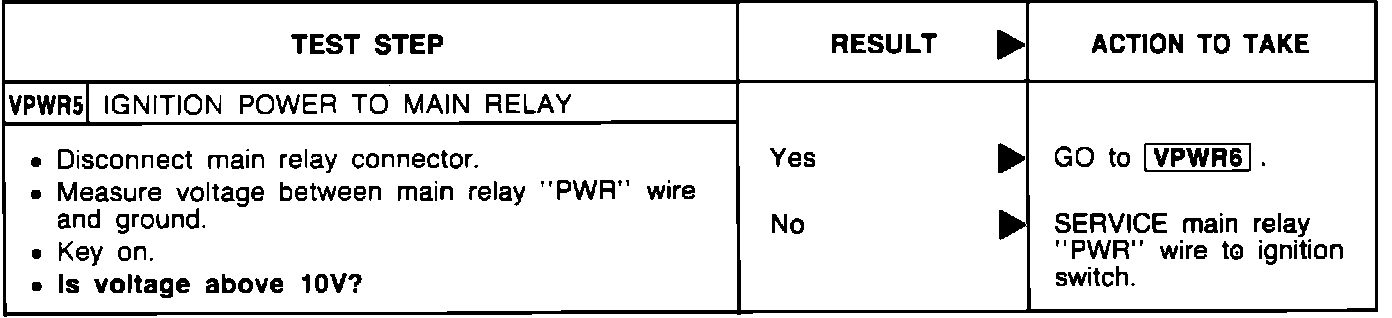

Pinpoint Test VPWR5:
