Instrument Cluster Diagnostics - Manual Revision

Article No.
91-14B-8

Date
July 22, 1991



SHOP MANUAL - 1991 - SECTION 33-01 - INSTRUMENT CLUSTER - DIAGNOSTIC INFORMATION REVISED



LINCOLN-MERCURY: 1991 CAPRI


ISSUE:

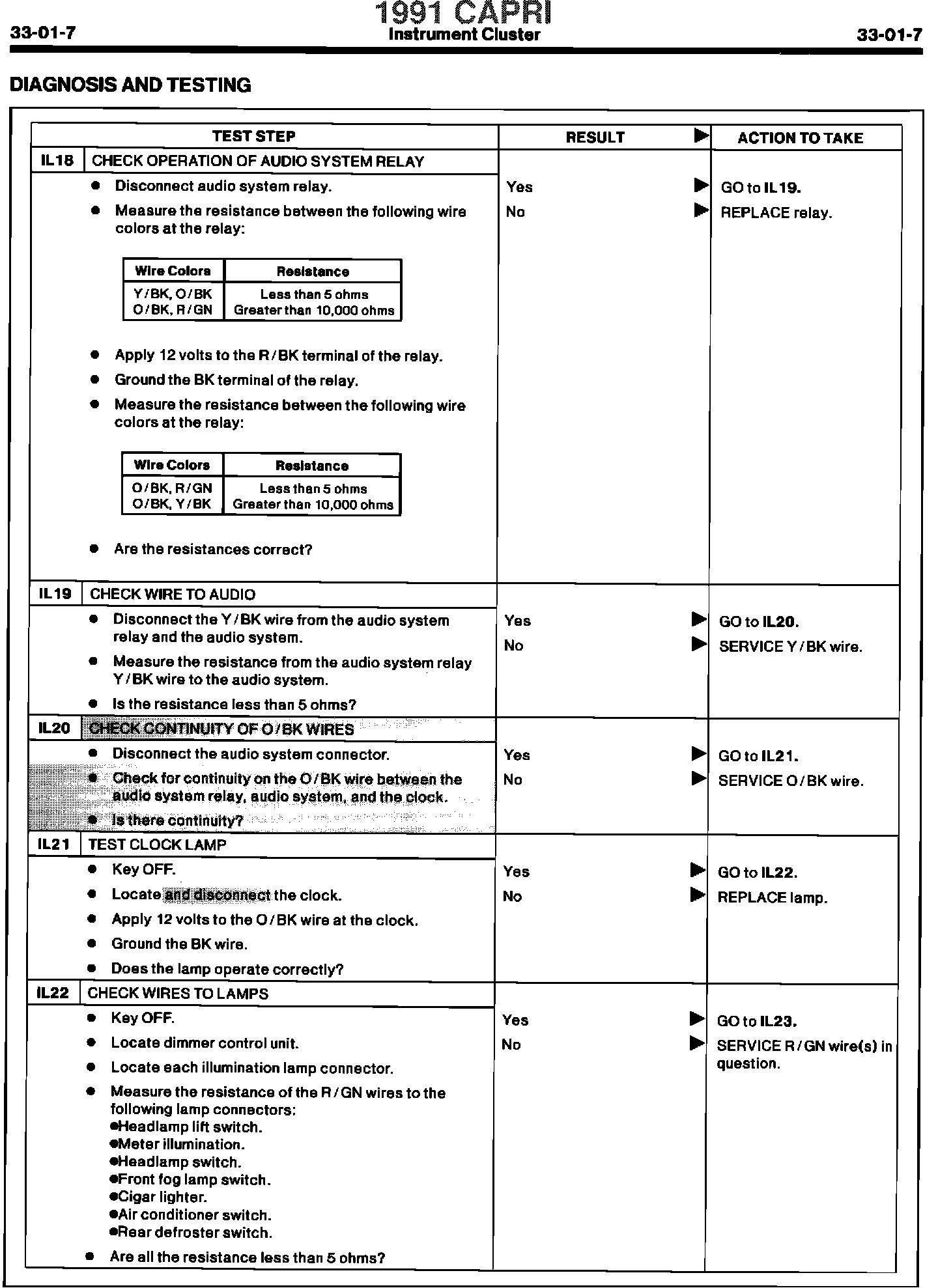

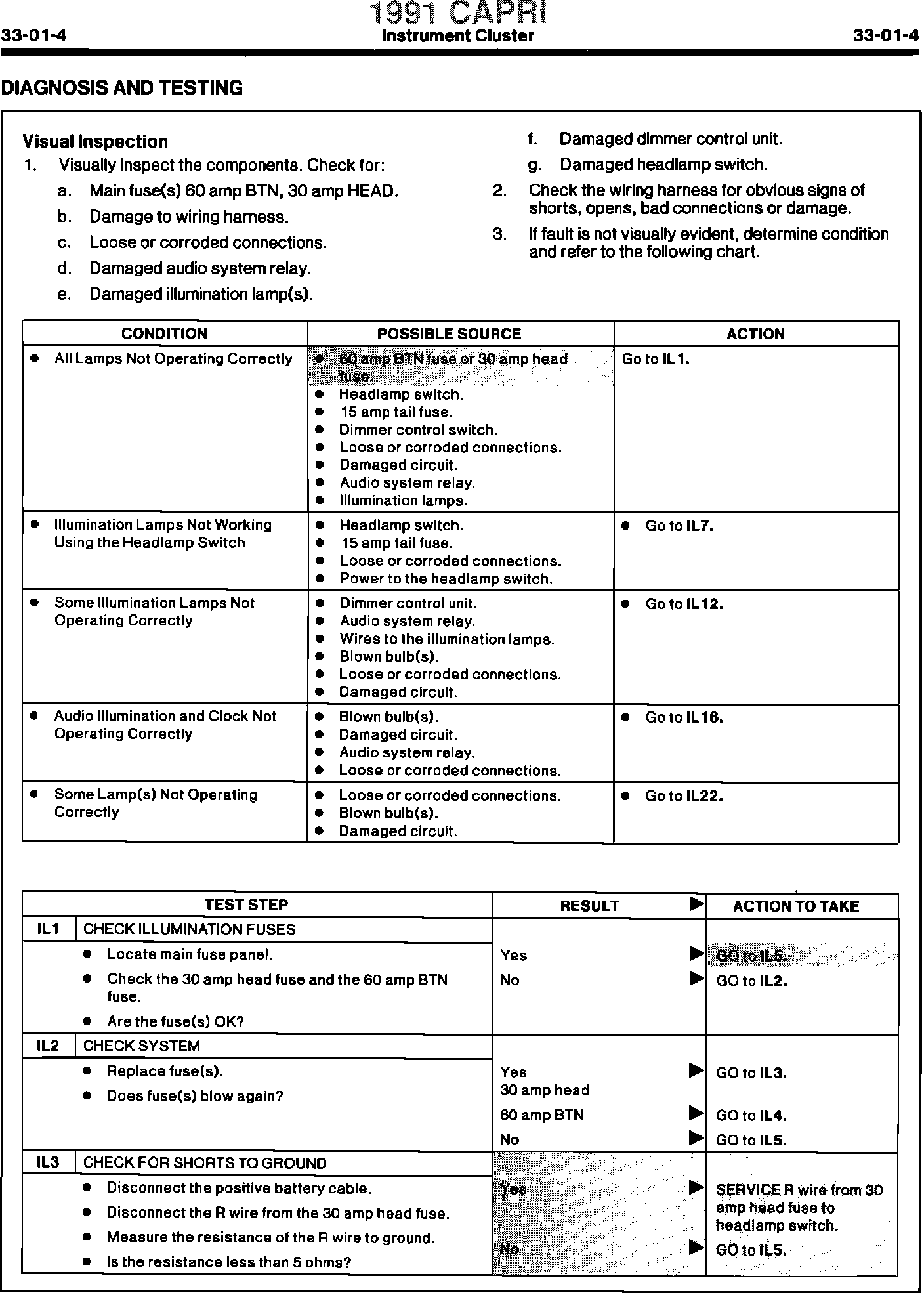

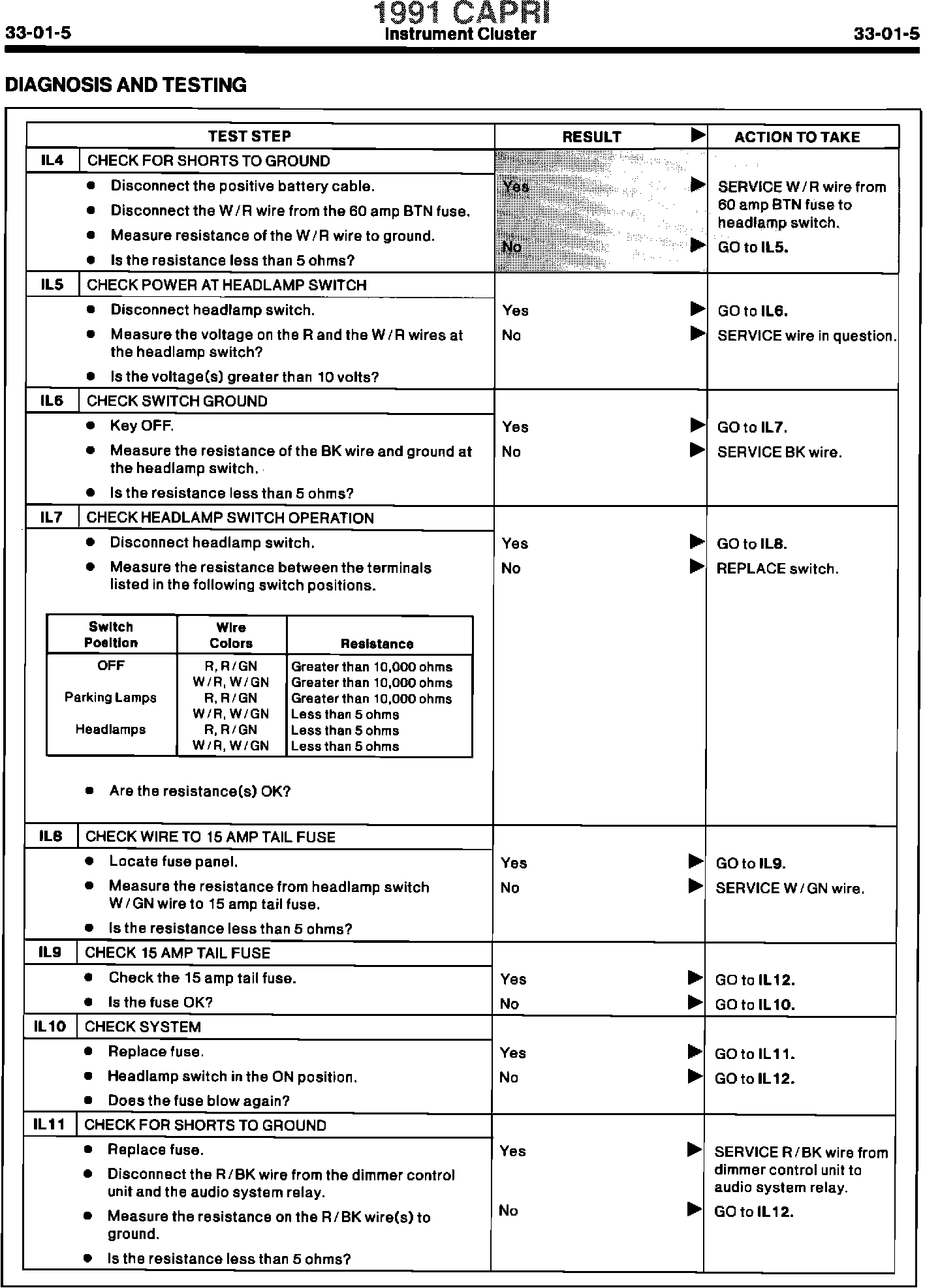

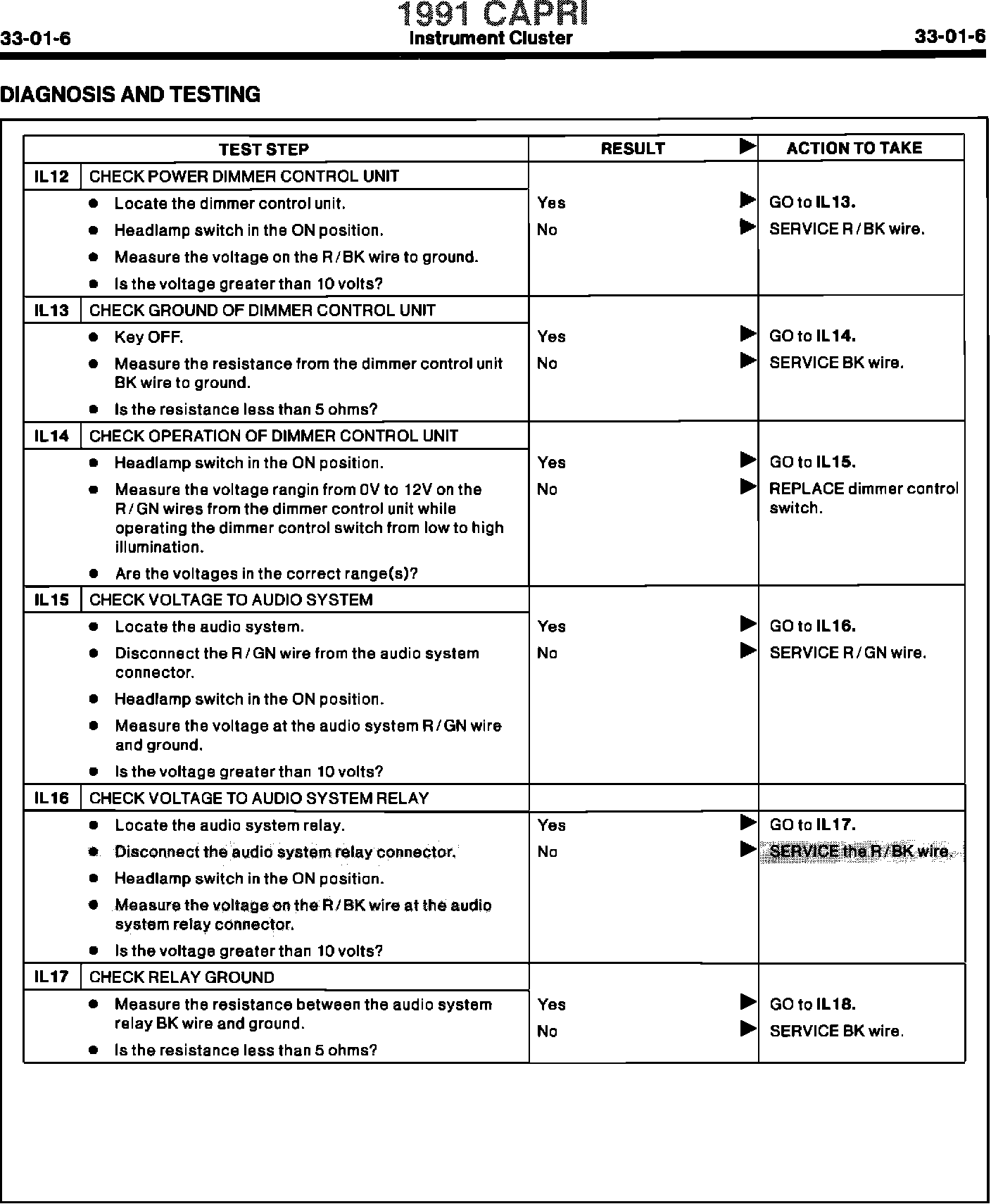

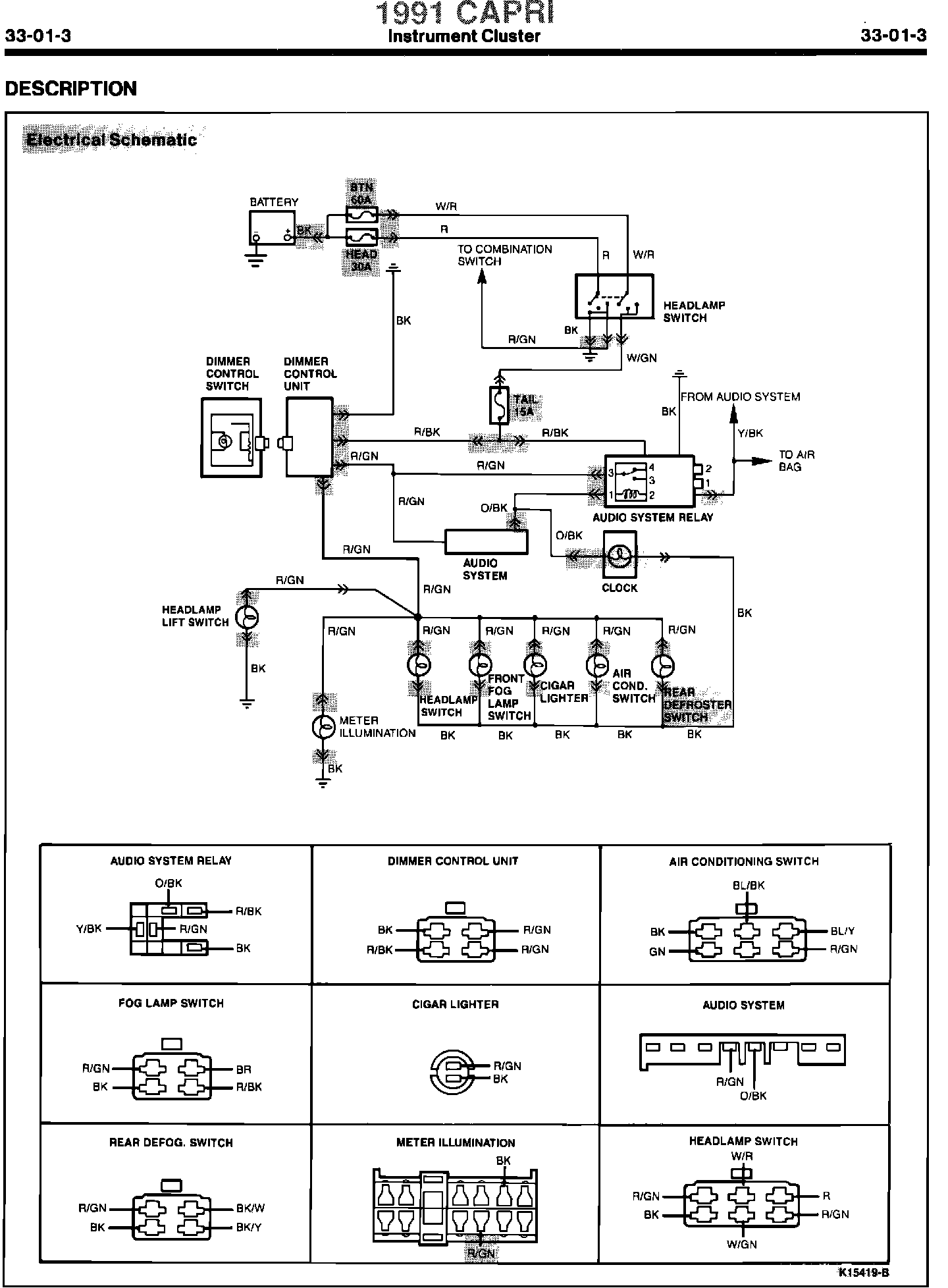

Instrument Cluster Section 33-01 of the 1991 Capri Shop Manual has been revised. Pages 33-01-3 through 5 and 7 through 9 are affected.

ACTION:

















Refer to the pages in this TSB article for the updated information.



NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE
WARRANTY STATUS:
INFORMATION ONLY
OASIS CODES:
290000
