A/C Service and Diagnostics - Revision

Article No.
91-14B-17

07/22/91

SHOP MANUAL - 1991 - SECTION 36-32 - A/C AND REFRIGERANT SYSTEM-SERVICE - DIAGNOSTIC INFORMATION REVISED

LINCOLN-MERCURY:
1991 CAPRI


ISSUE:
A/C and Refrigerant System-Service Section 36-32 of the 1991 Capri Shop Manual has been revised.

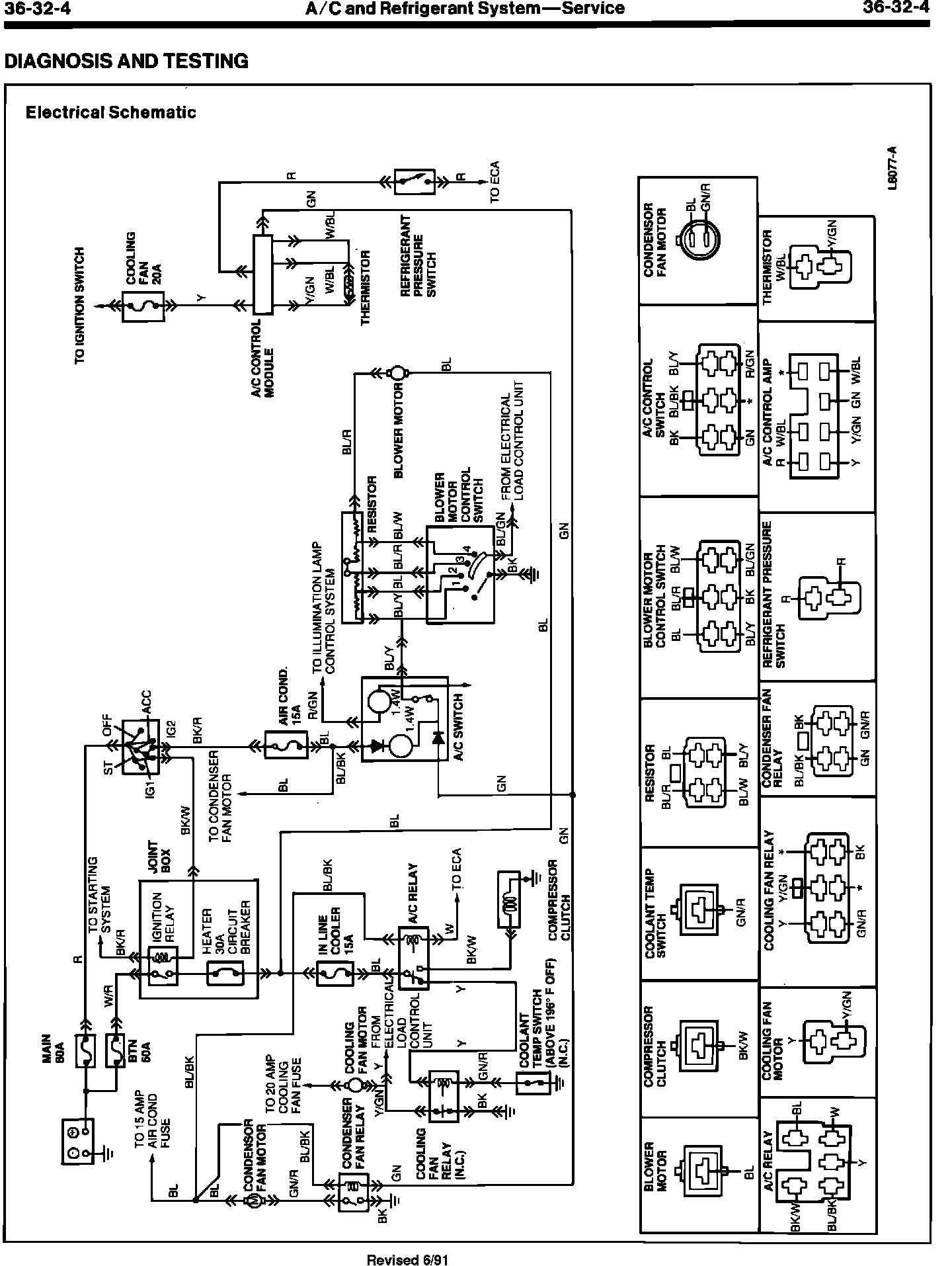

Page 36-32-4 Electrical Schematic - Revised

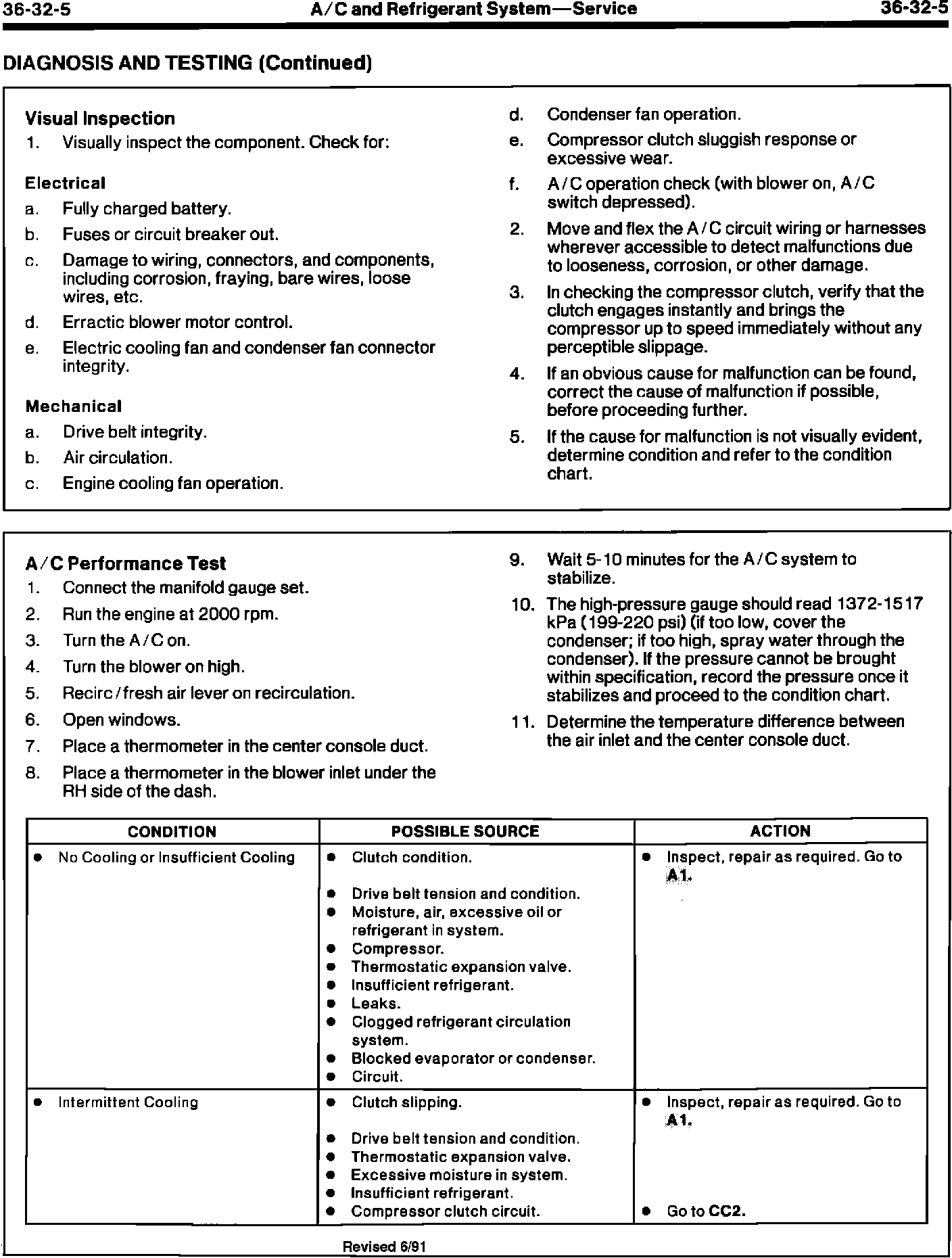

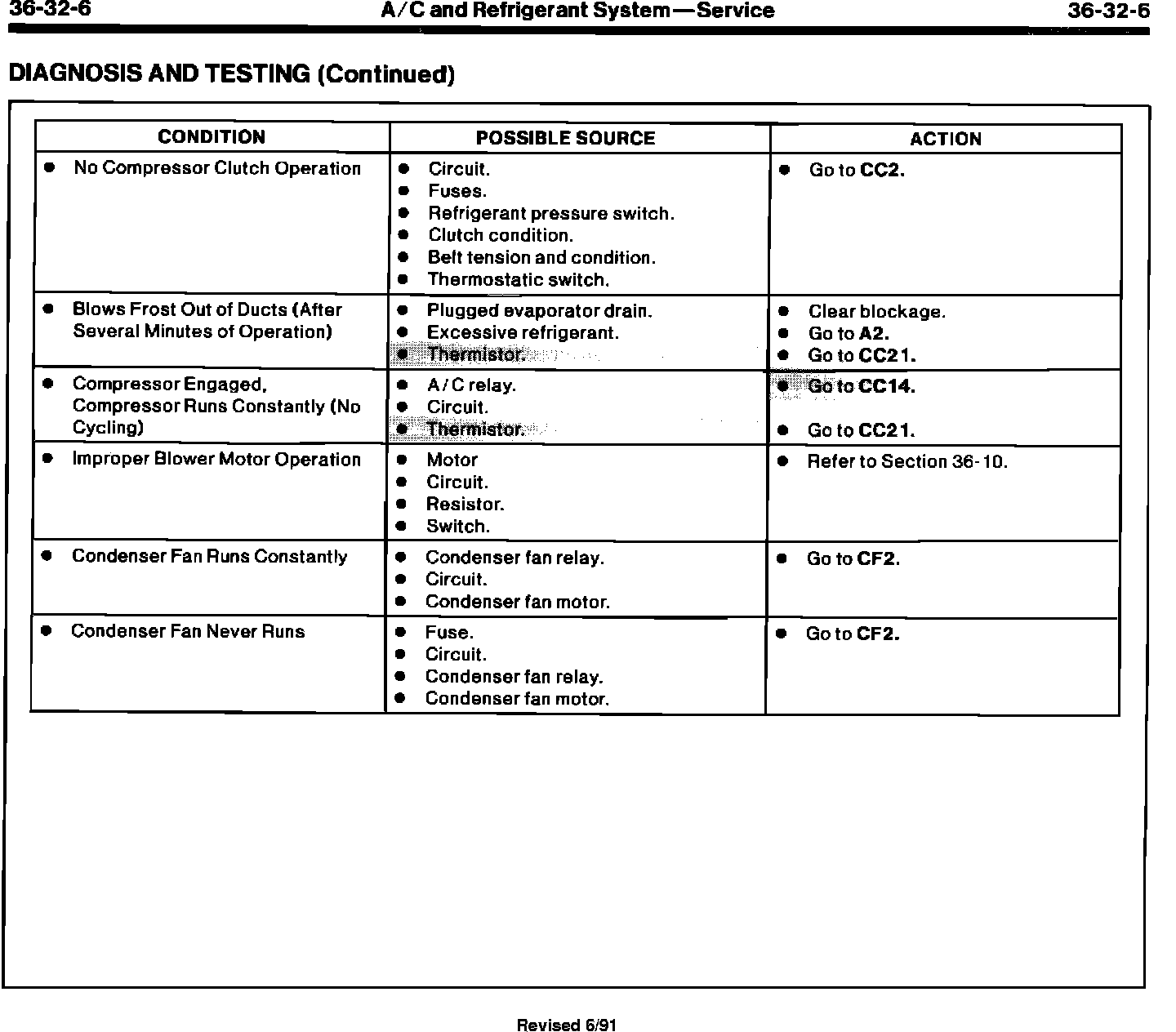

Page 36-32-5,6 Diagnosis By Symptom Revised

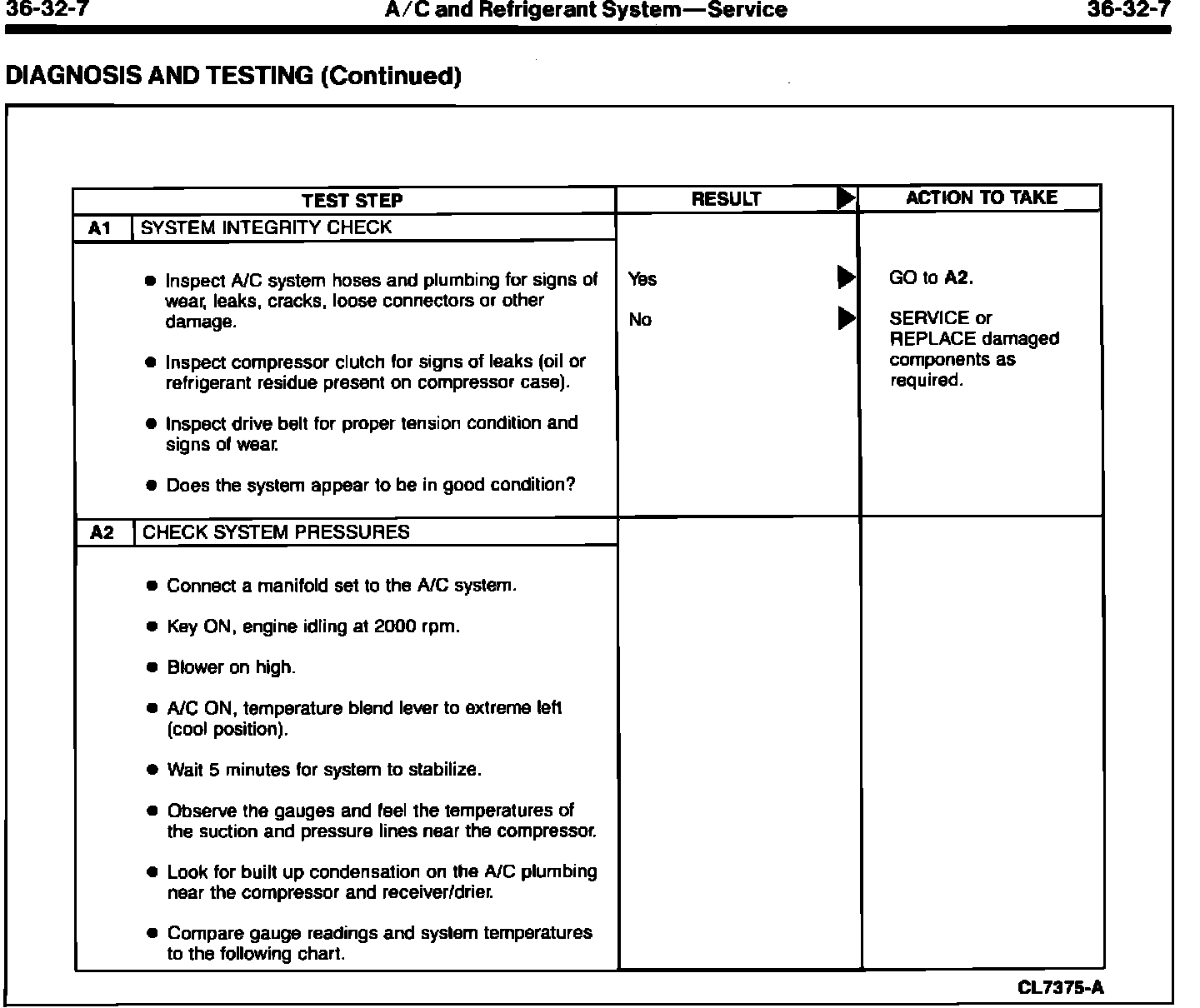

Page 36-32-7 System Integrity Check Page # Change Only

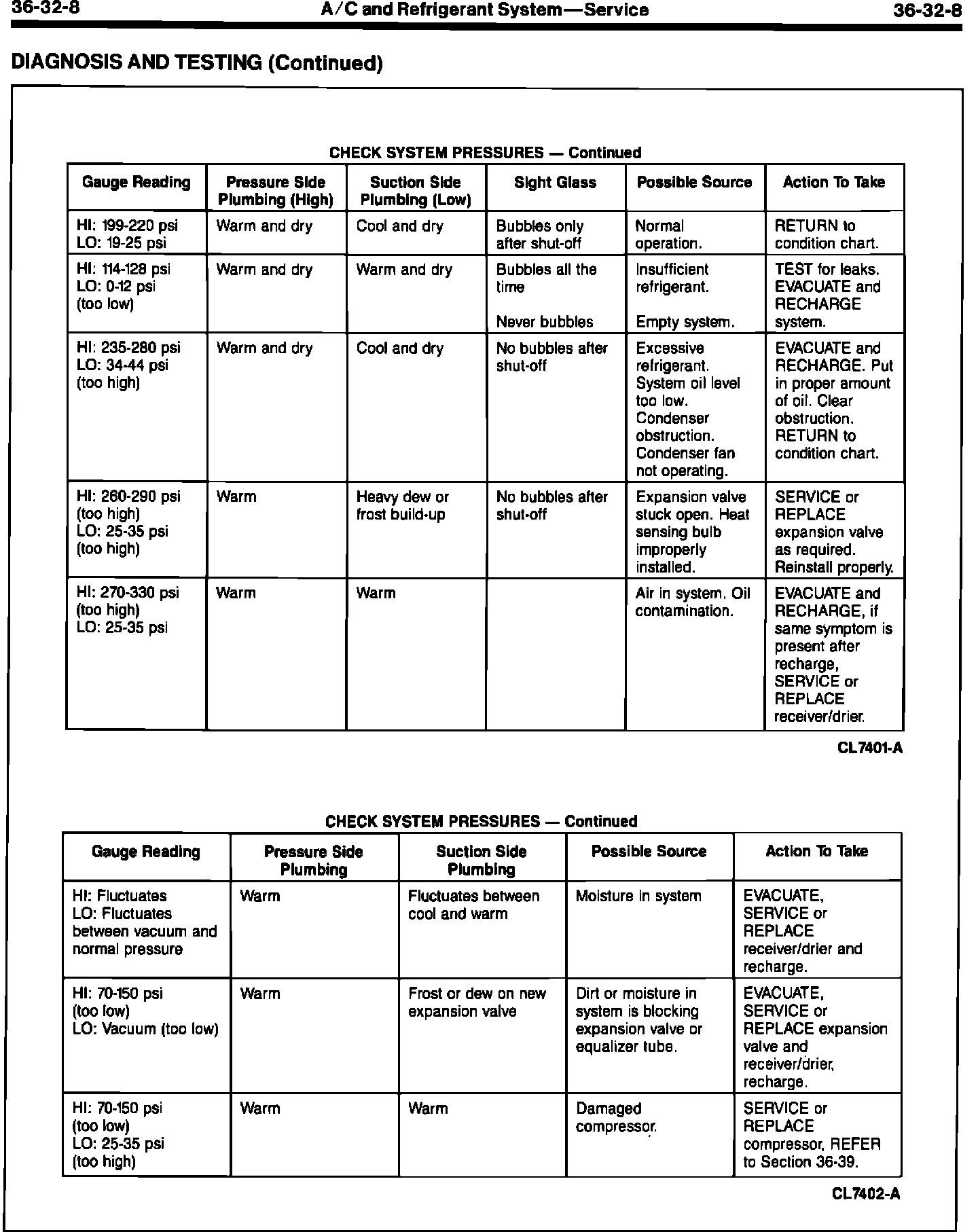

Page 36-32-8 System Pressure Check Page # Change Only

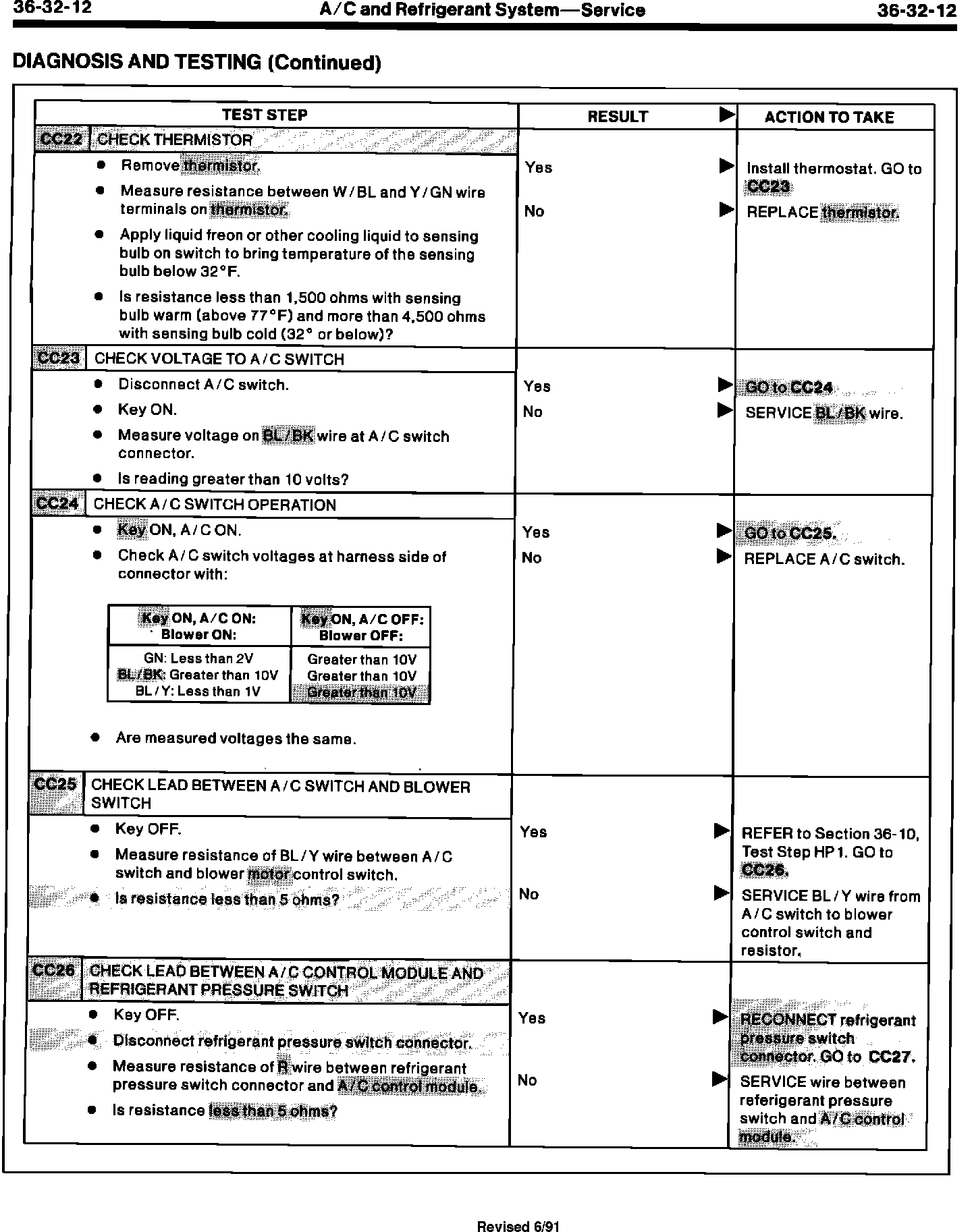

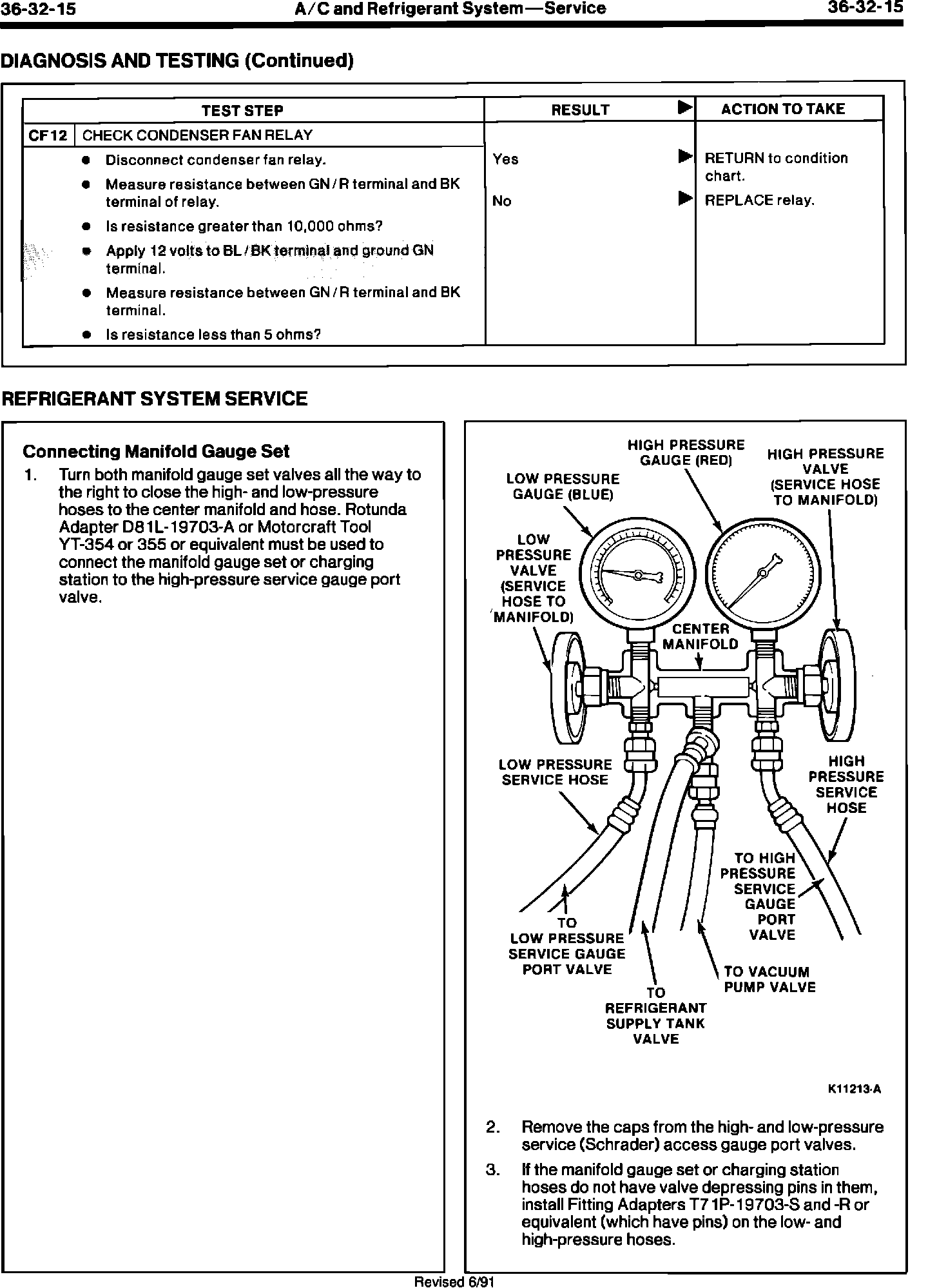

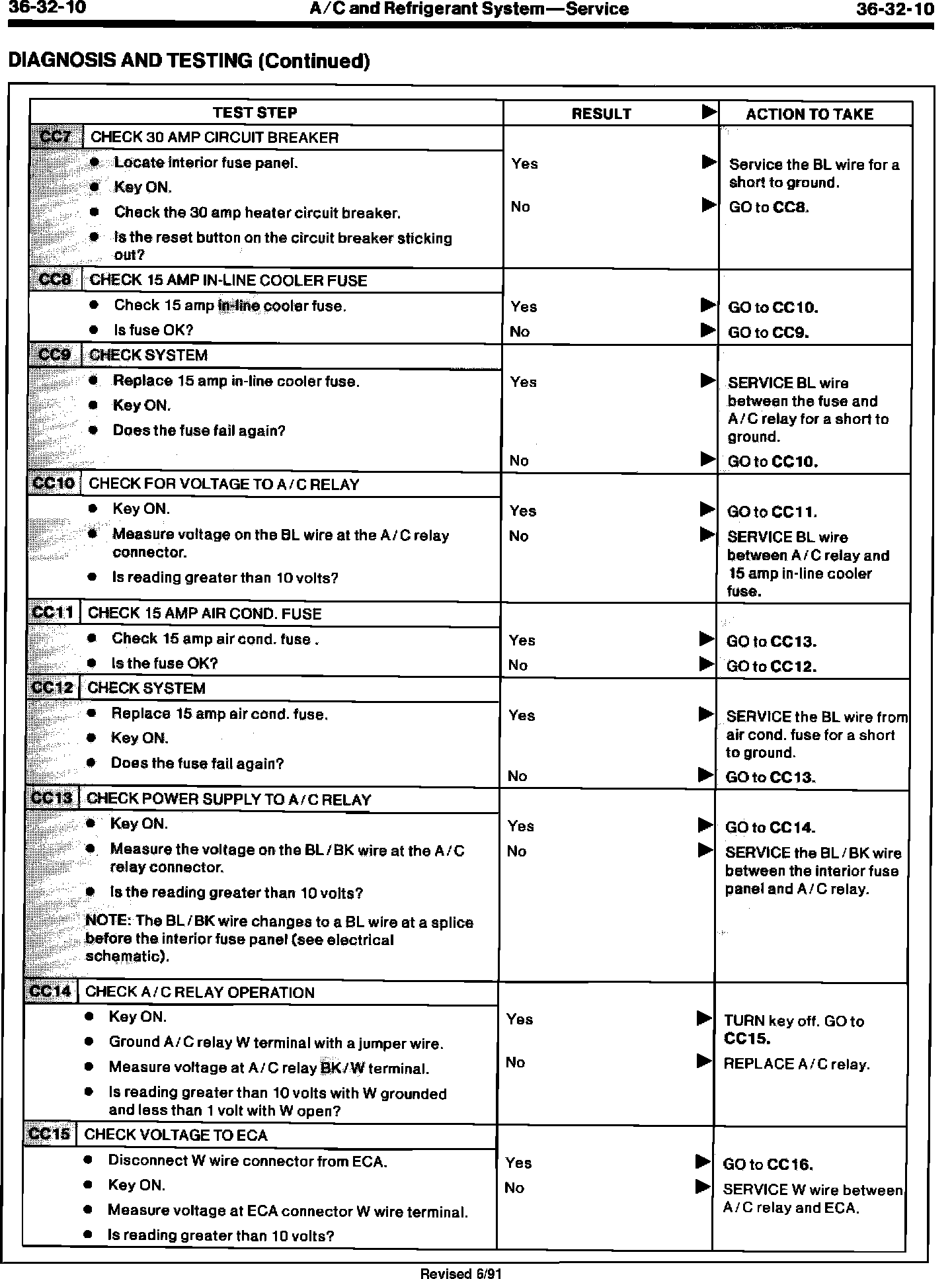

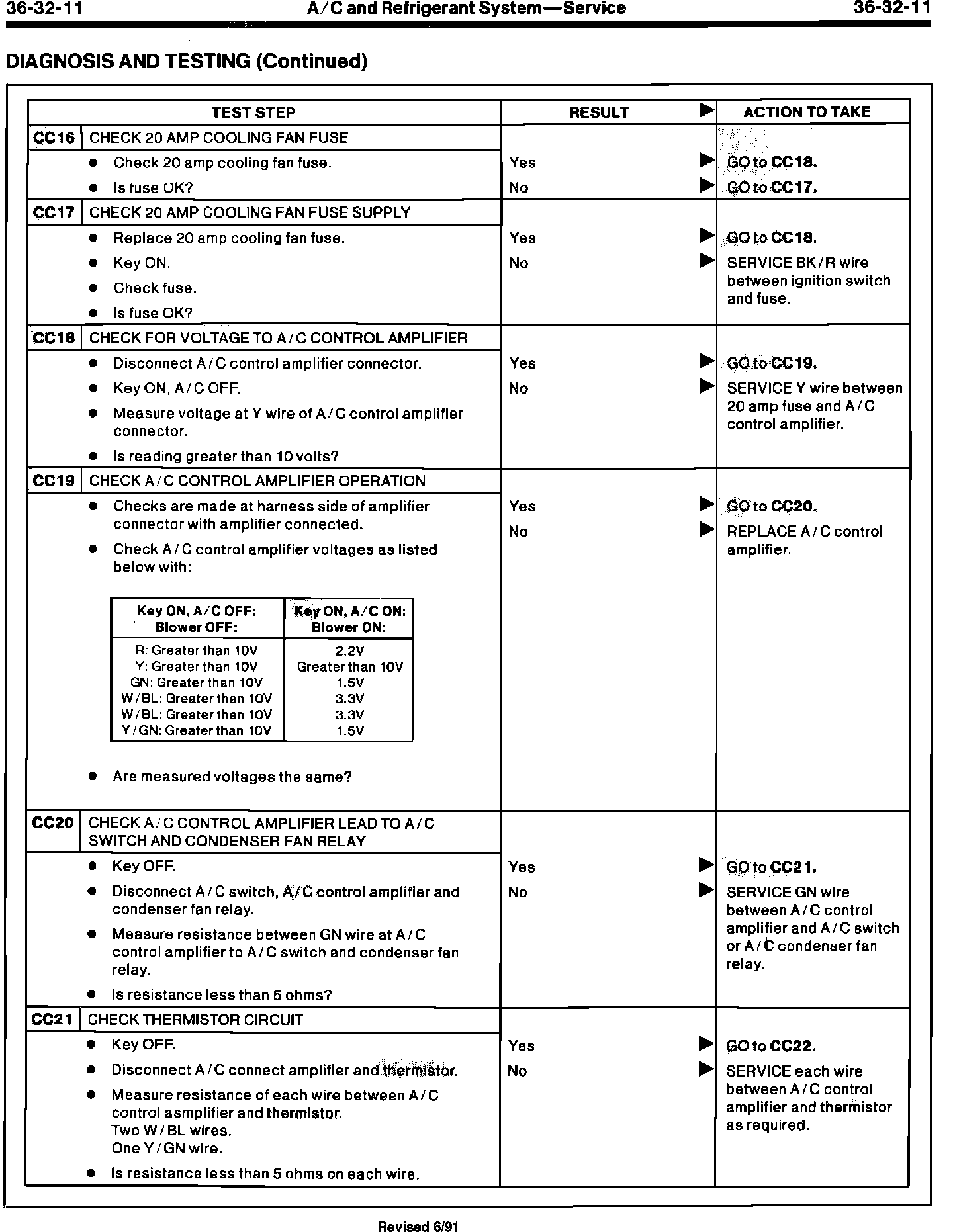

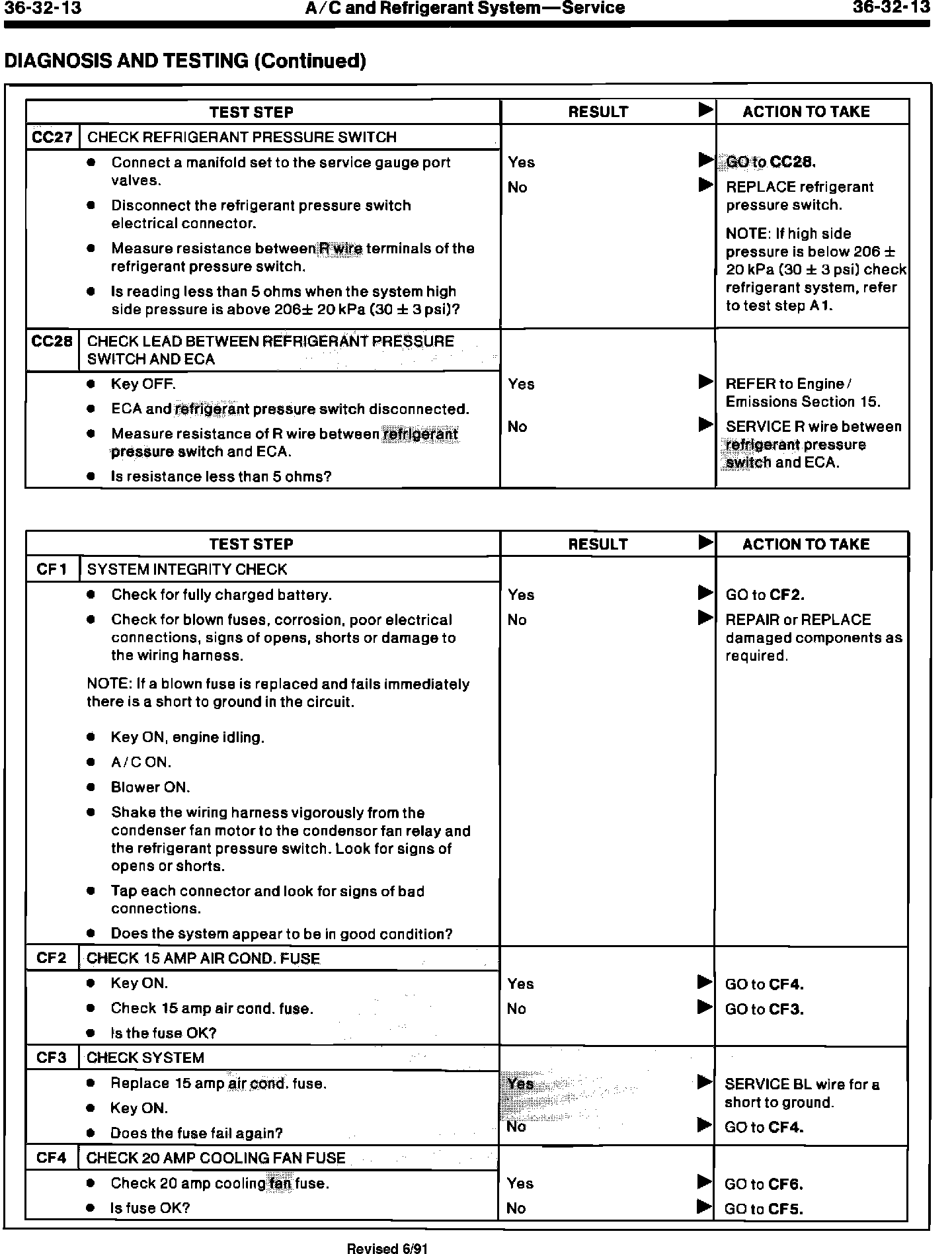

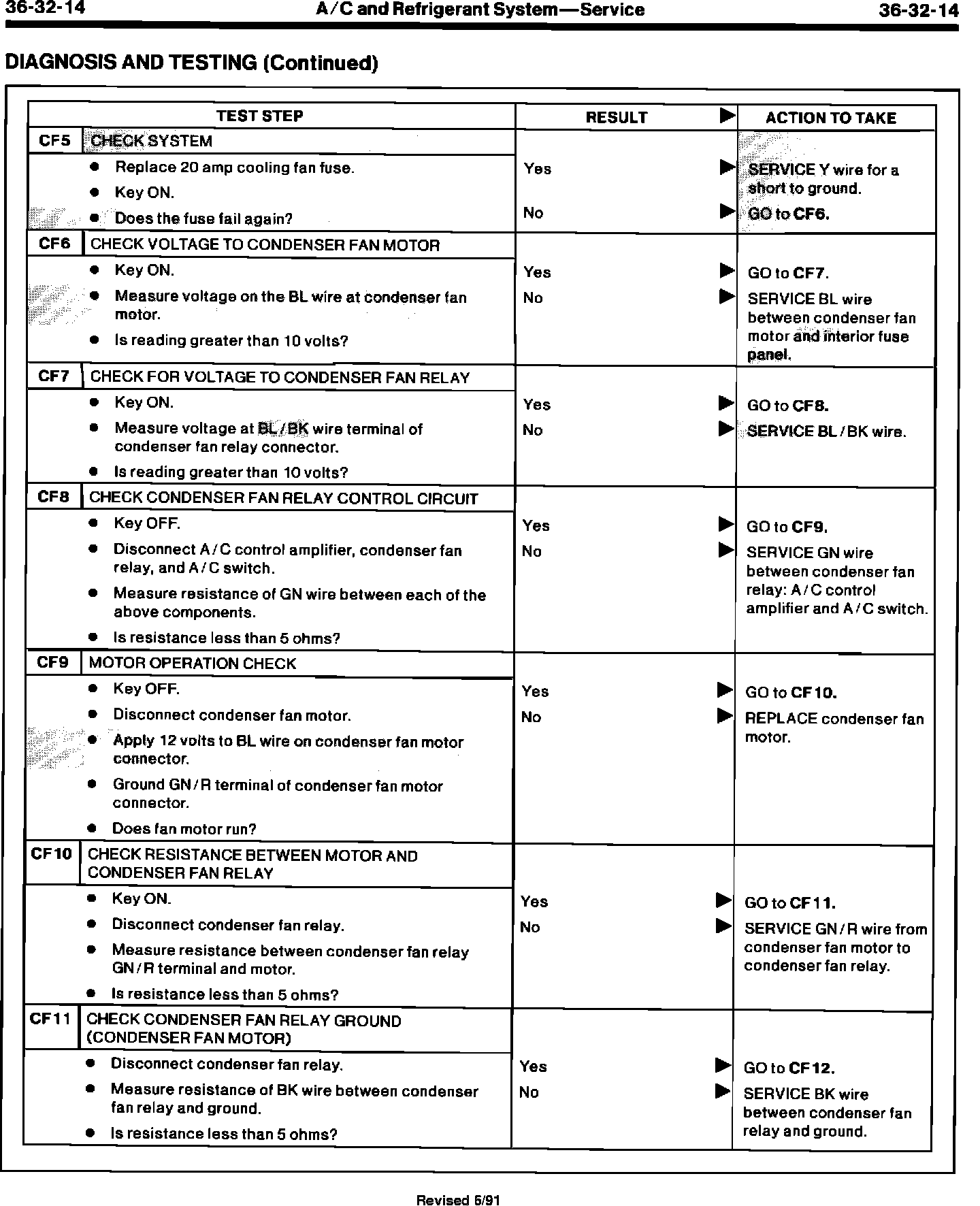

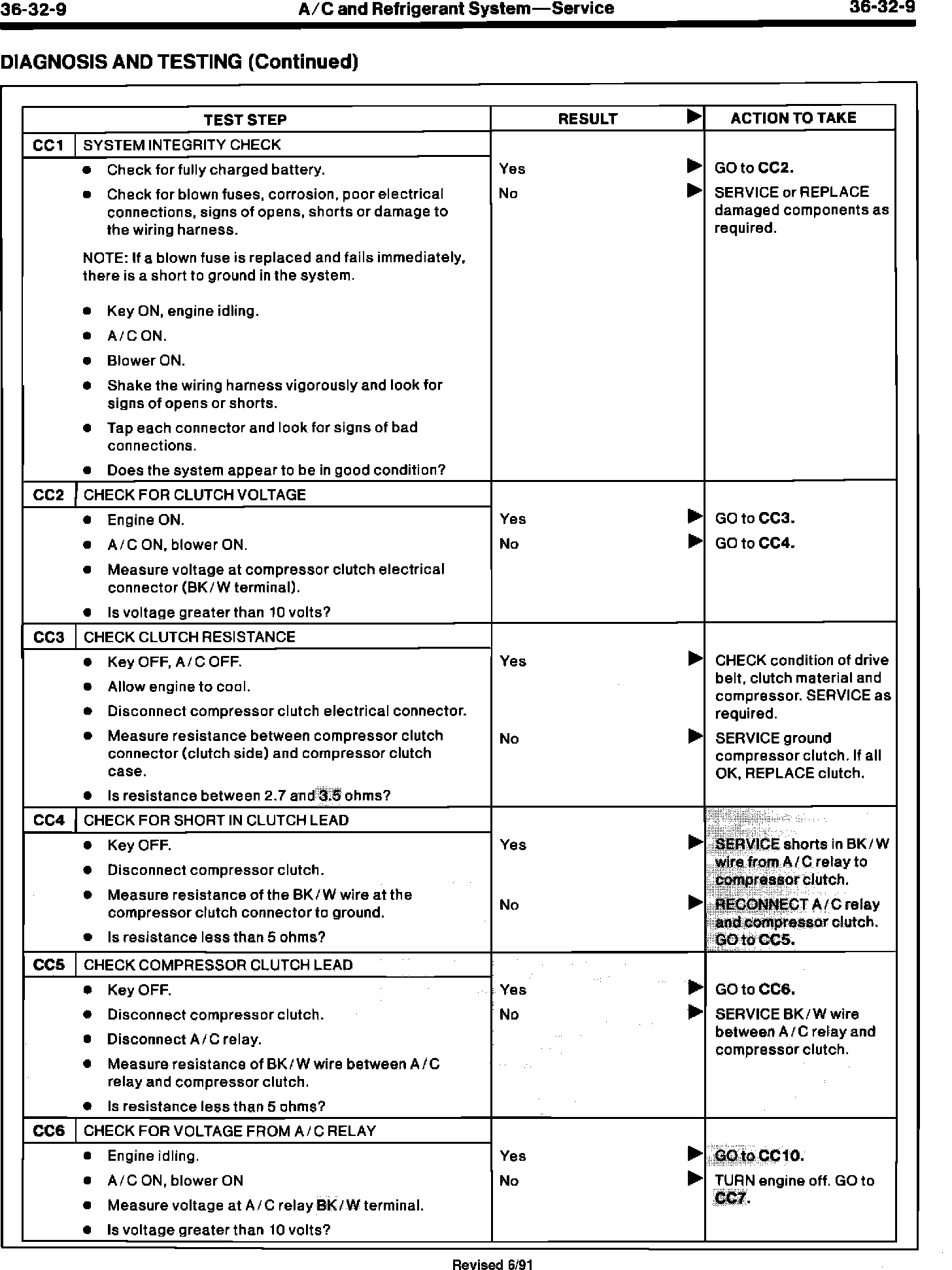

Page 36-32-9 thru 15 System Diagnosis Revised

ACTION:
Refer to the pages in this TSB article for the updated information.

NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000
