Blower Motor Switch: Testing and Inspection

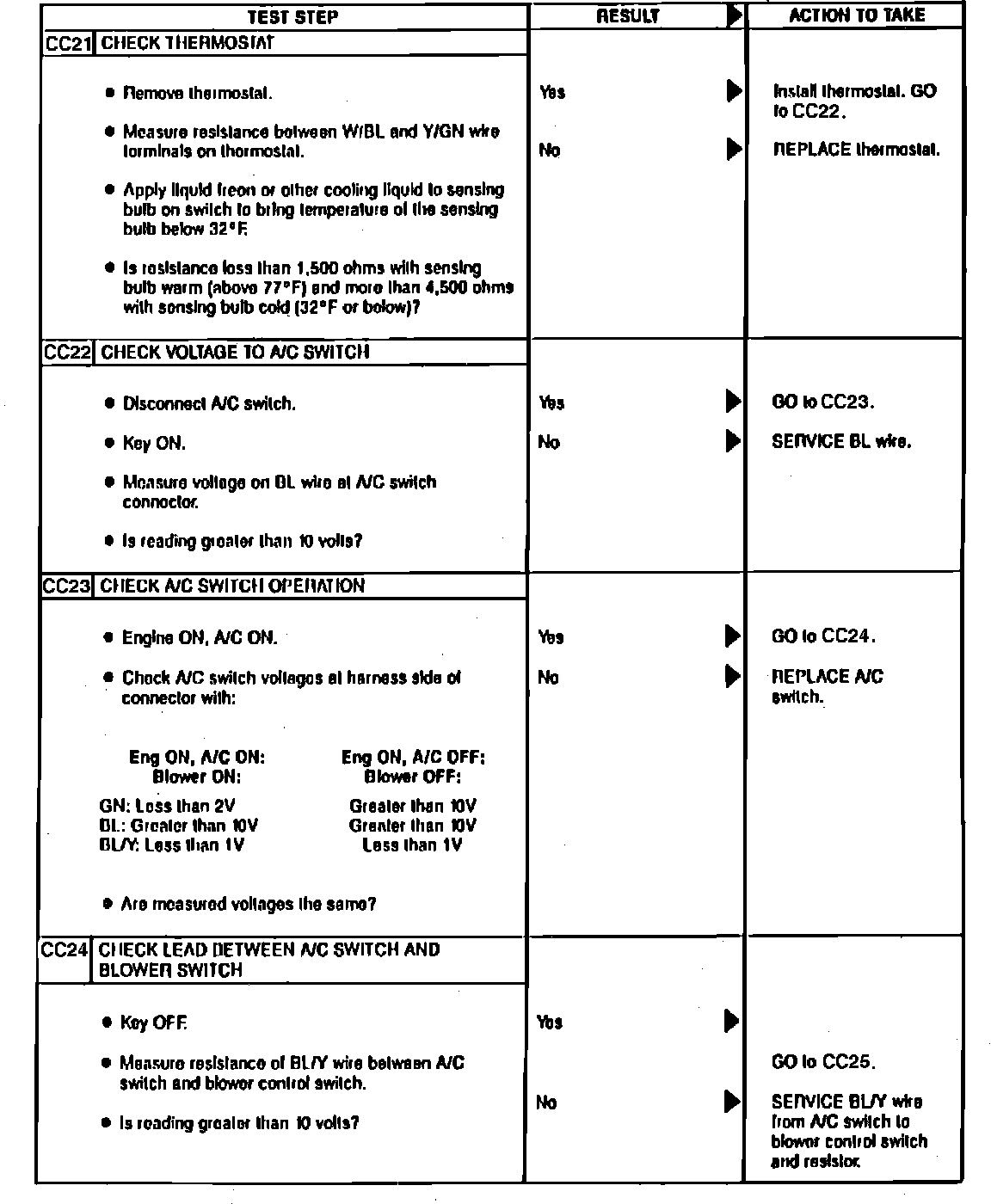

Fig. 32 Compressor clutch diagnosis (Tests CC21, CC22, CC23 & CC24):
