Air Door Cable: Adjustments

Function Selector Cable
1. Position function lever in DEFROST position.
2. Remove driver sound insulation panel.
3. Release cable located on left side of heater case from cable housing brace.

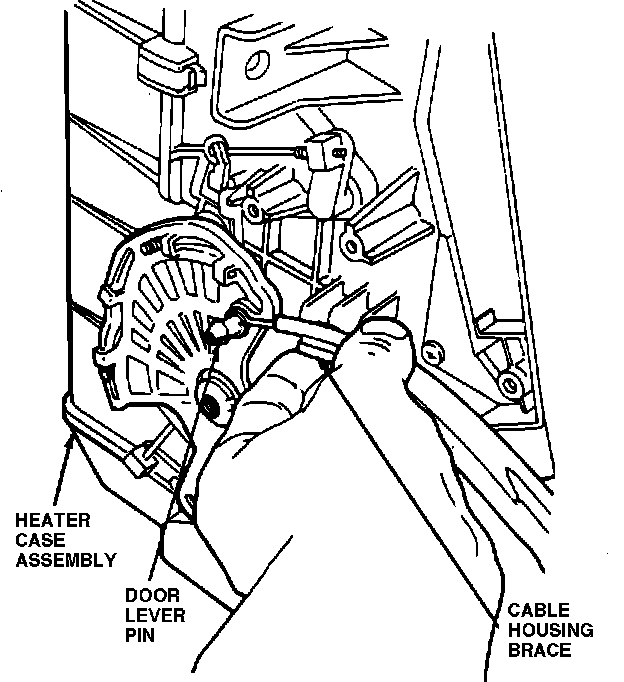

Fig. 48 Function selector cable adjust:

4. With cable end on door lever pin, push door lever down to extreme stop as shown in Fig. 48.
5. Secure cable into cable housing brace.

Temperature Control Cable
1. Position temperature control lever in MAX-WARM position.
2. Remove passenger sound insulator panel.
3. Remove cable located on right side of heater case from cable housing brace.

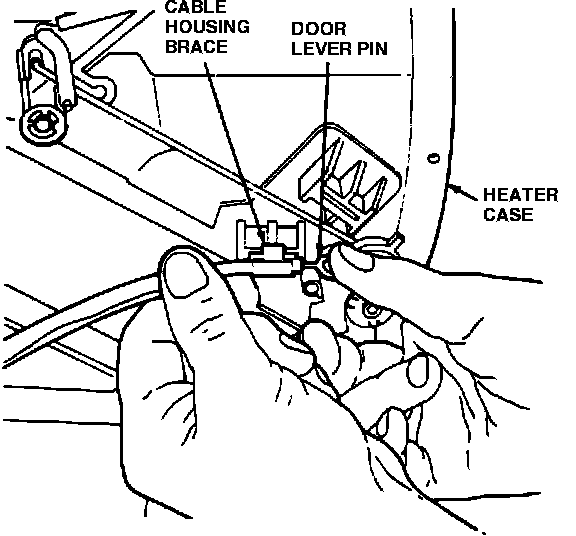

Fig. 49 Temperature control cable adjust:

4. With cable end on door lever pin, push door lever down to extreme stop as shown in Fig. 49.
5. Secure cable into cable housing brace.

REC/FRESH Control Cable
1. Position REC/FRESH control lever in fresh air position.
2. Remove passenger sound insulator panel.
3. Remove cable located on left side of blower case from cable housing brace.

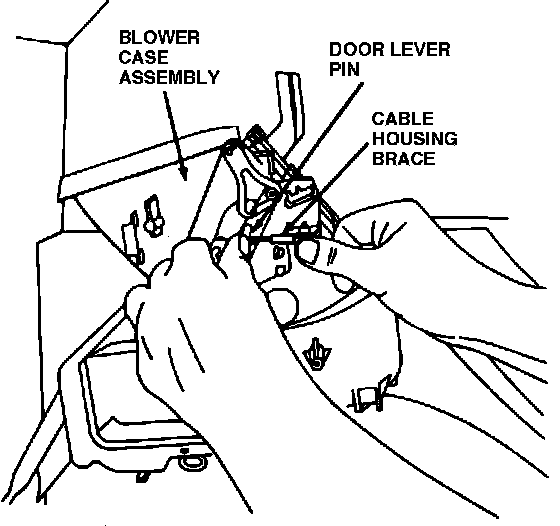

Fig. 50 Rec/Fresh control cable adjust:

4. With cable end on door lever pin, push door lever forward to extreme stop as shown in Fig. 50.
5. Secure cable into cable housing brace.
