EC5 - Check Supply to A/C Relay (A/C Only)
EC5 - Check Supply to A/C Relay (A/C Only)

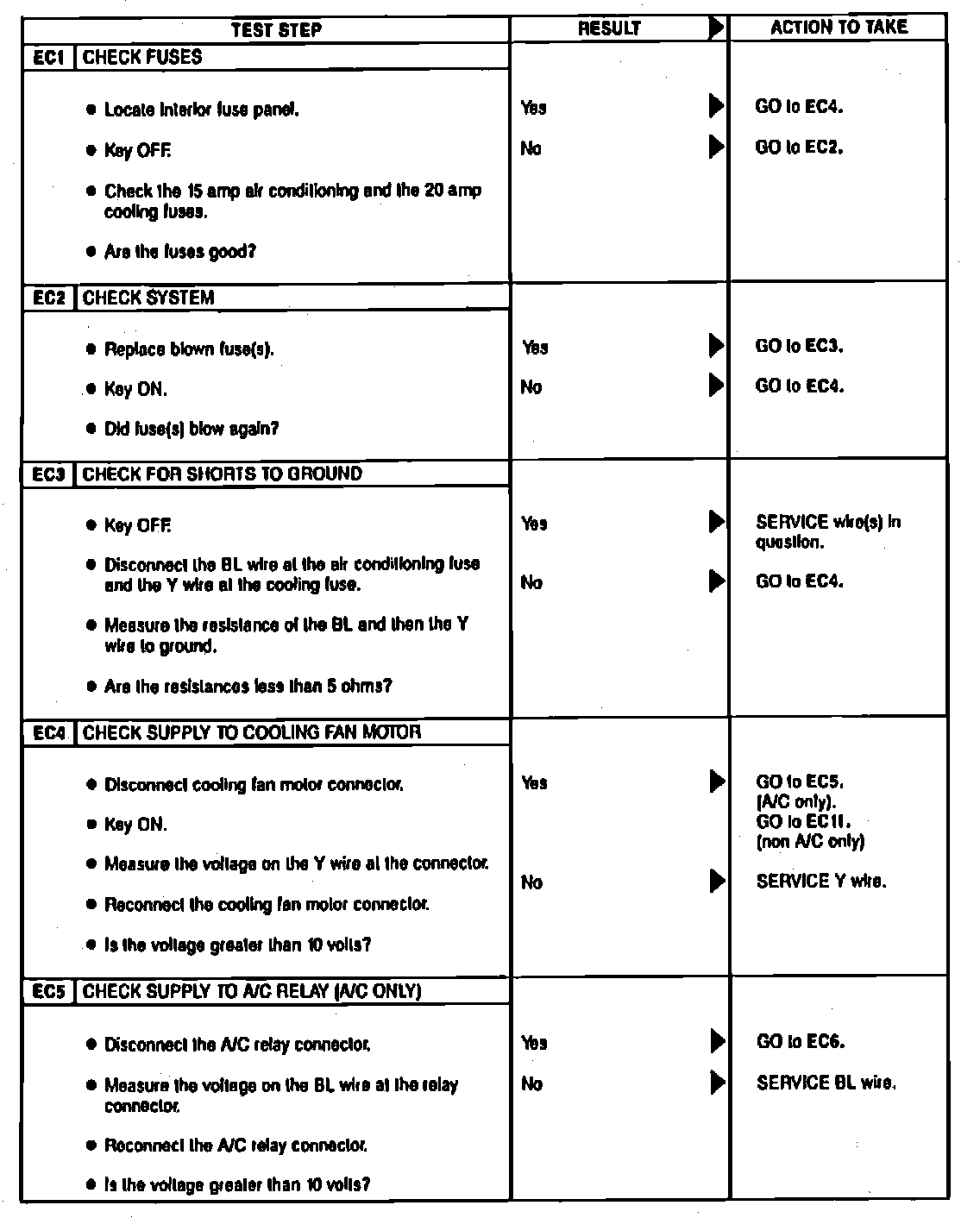

Fig. 2a Diagnostic Test Steps EC1 - EC5:
