EC18 - Check System For Operation When A/C Is Turned On (A/C)
EC18 - Check System For Operation When A/C Is Turned On (A/C)

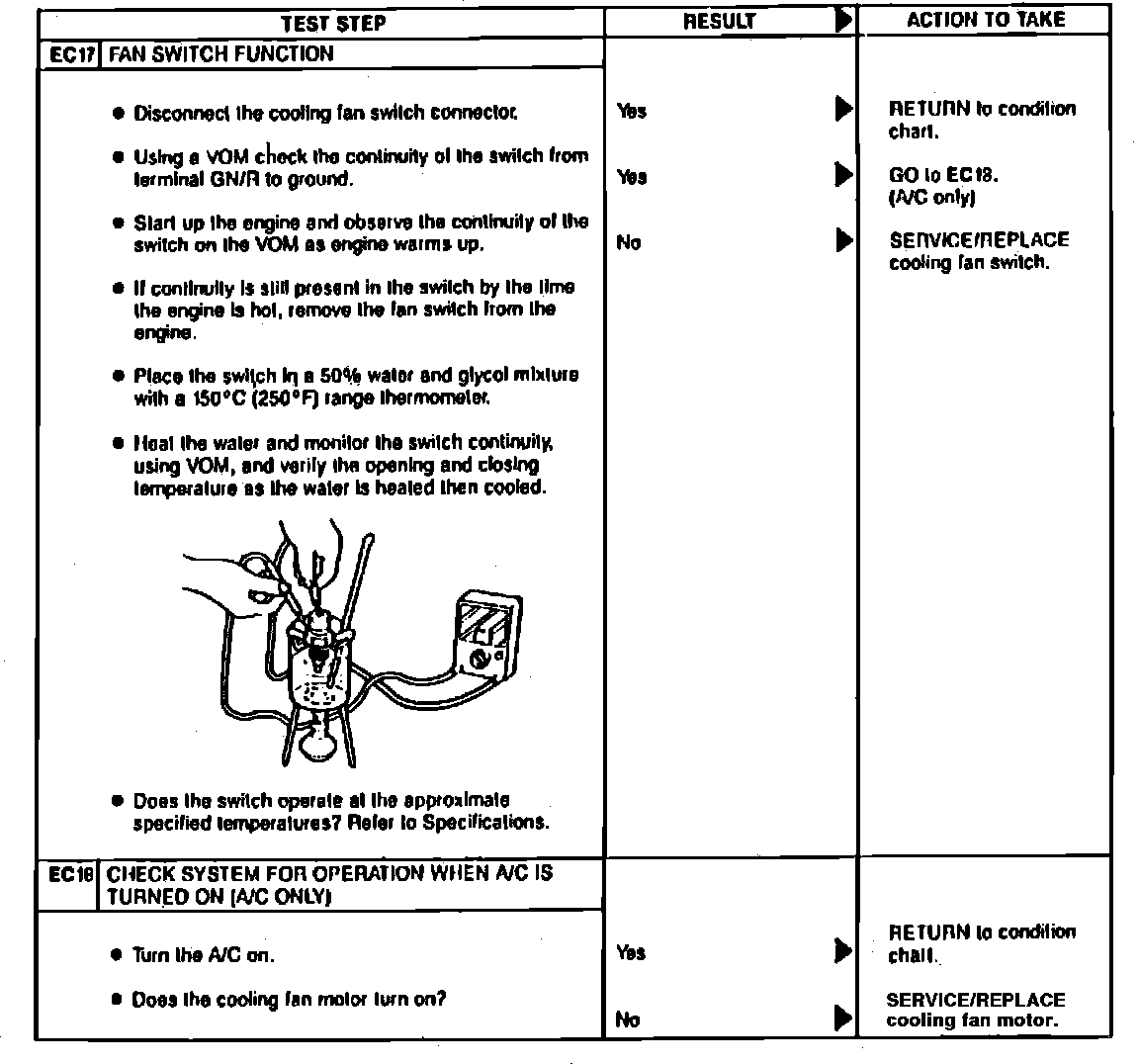

Fig. 2e Diagnostic Test Steps EC17 & EC18:
