FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1991
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
EC16 - Check Lead Between Cooling Relay and Cooling Fan Switch
EC16 - Check Lead Between Cooling Relay and Cooling Fan Switch

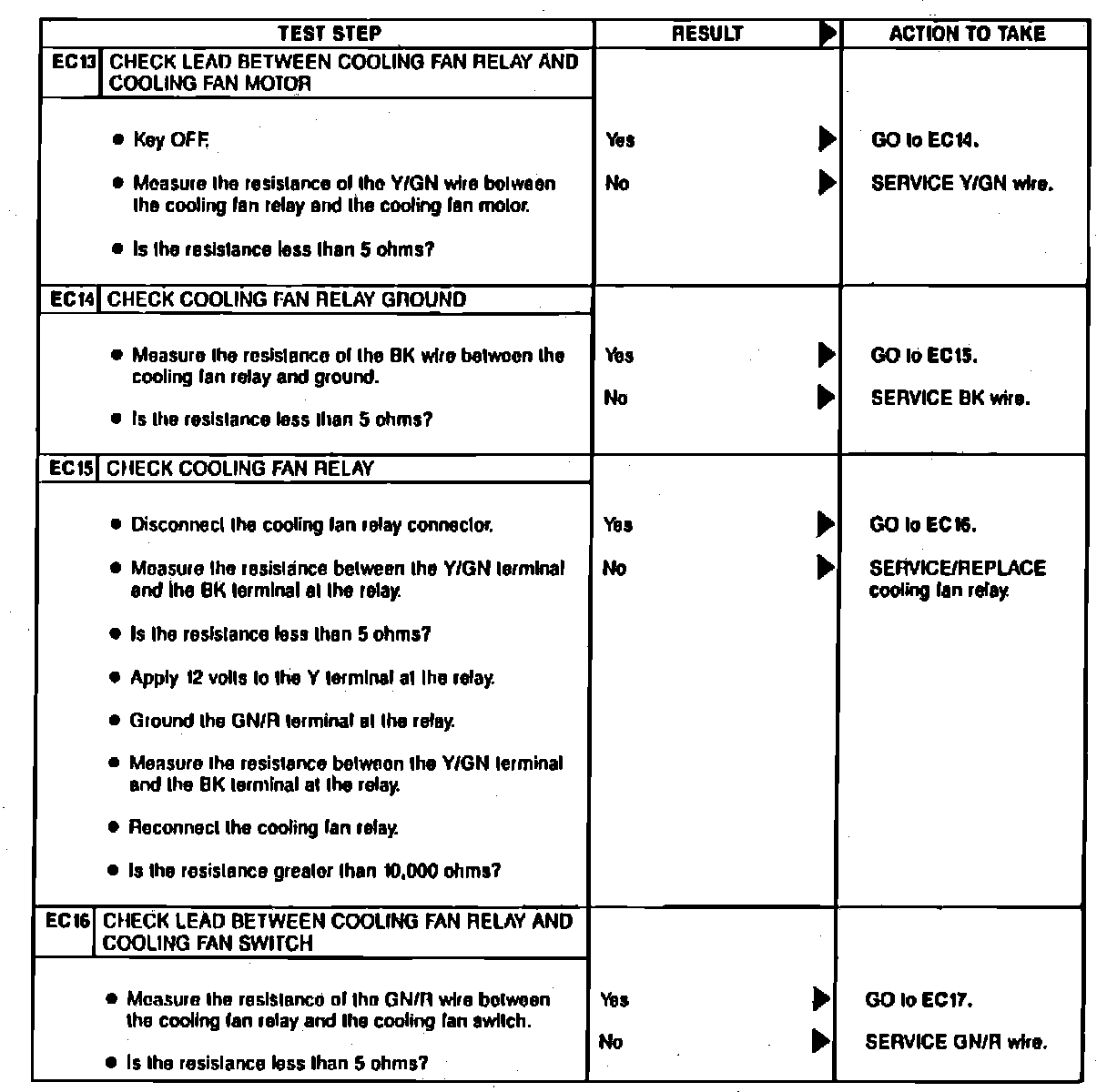

Fig. 2d Diagnostic Test Steps EC13 - EC16:
