Engine Controls

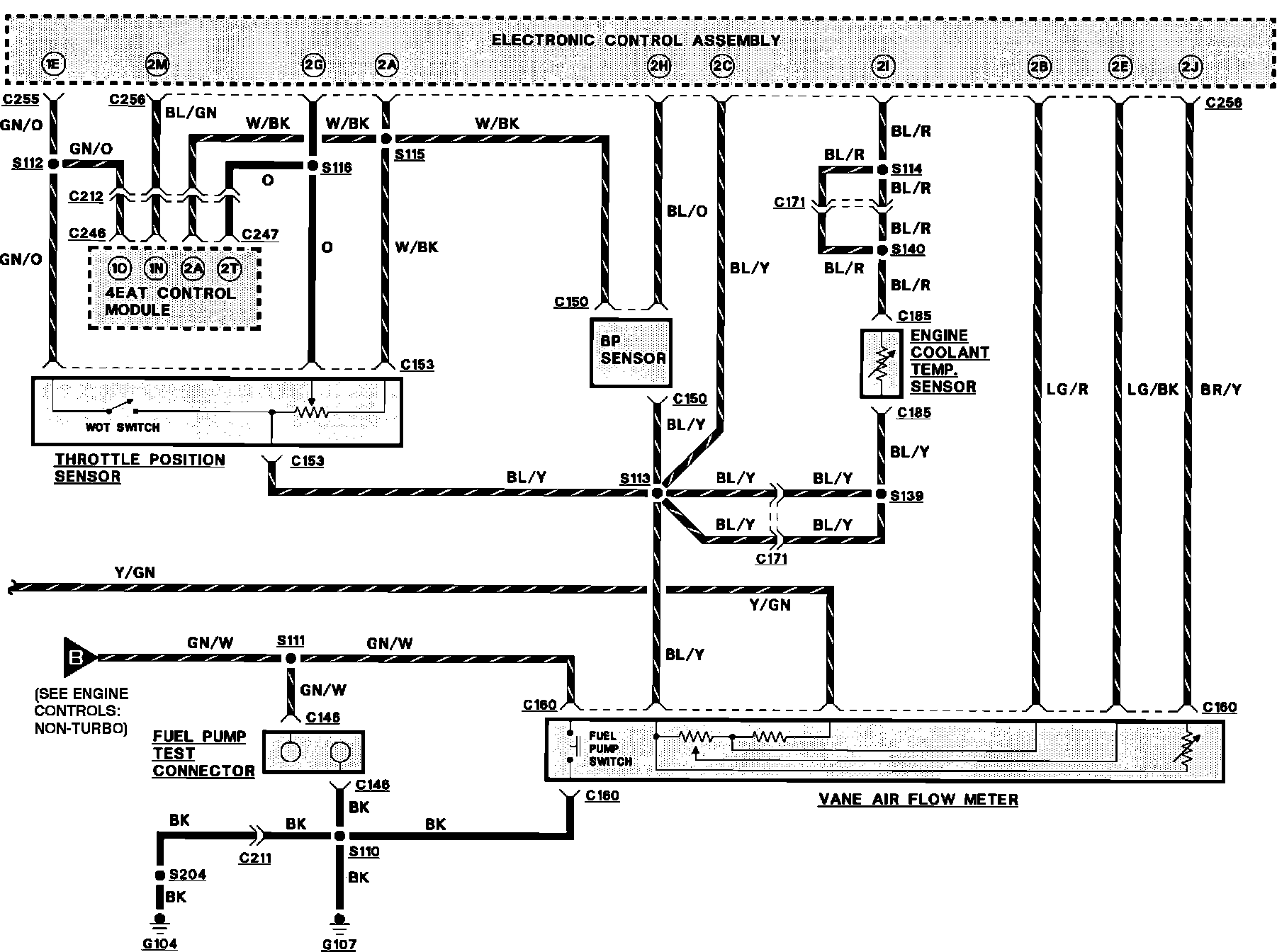

Engine Control. Non-Turbo:

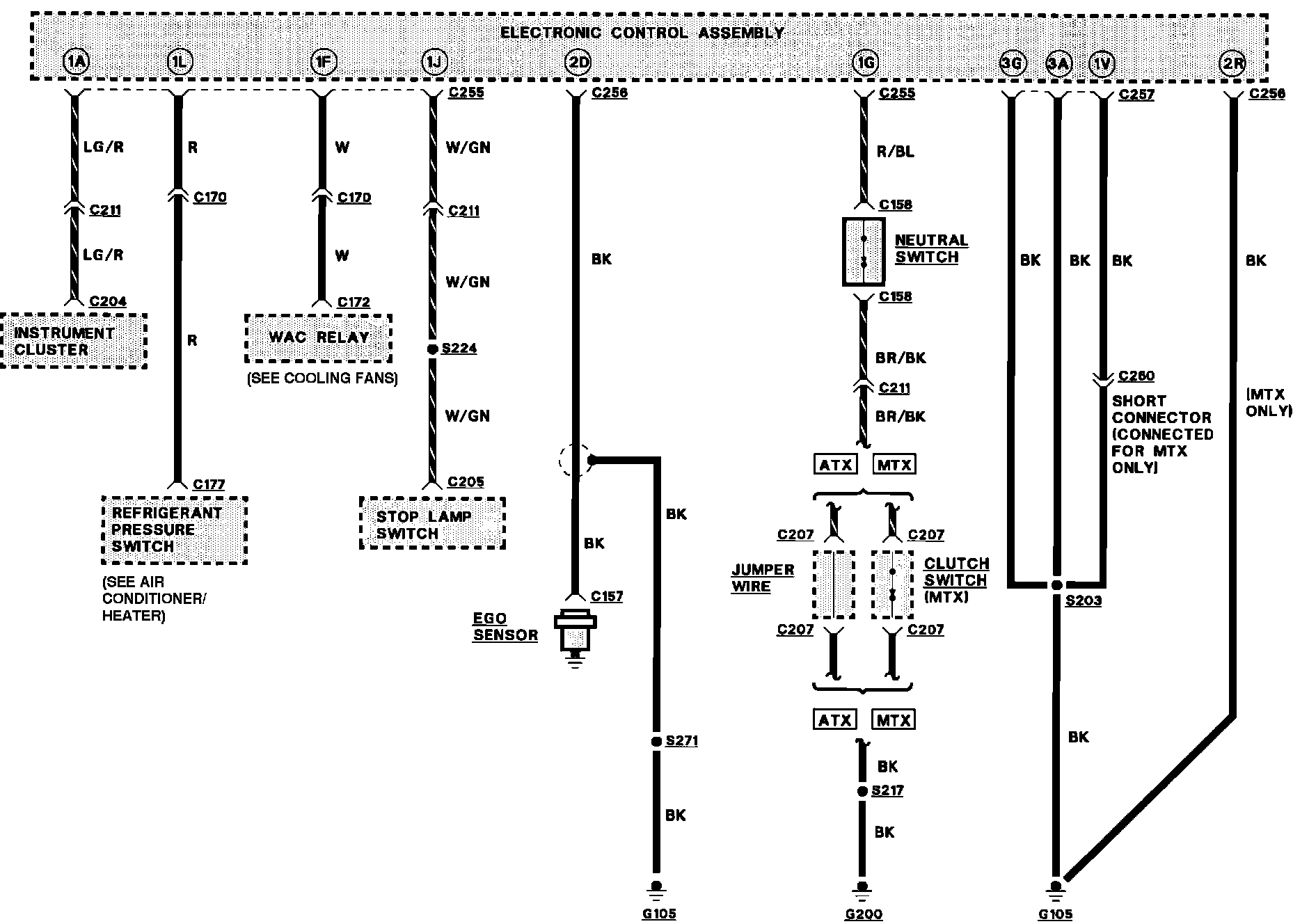

Engine Control. Non-Turbo:

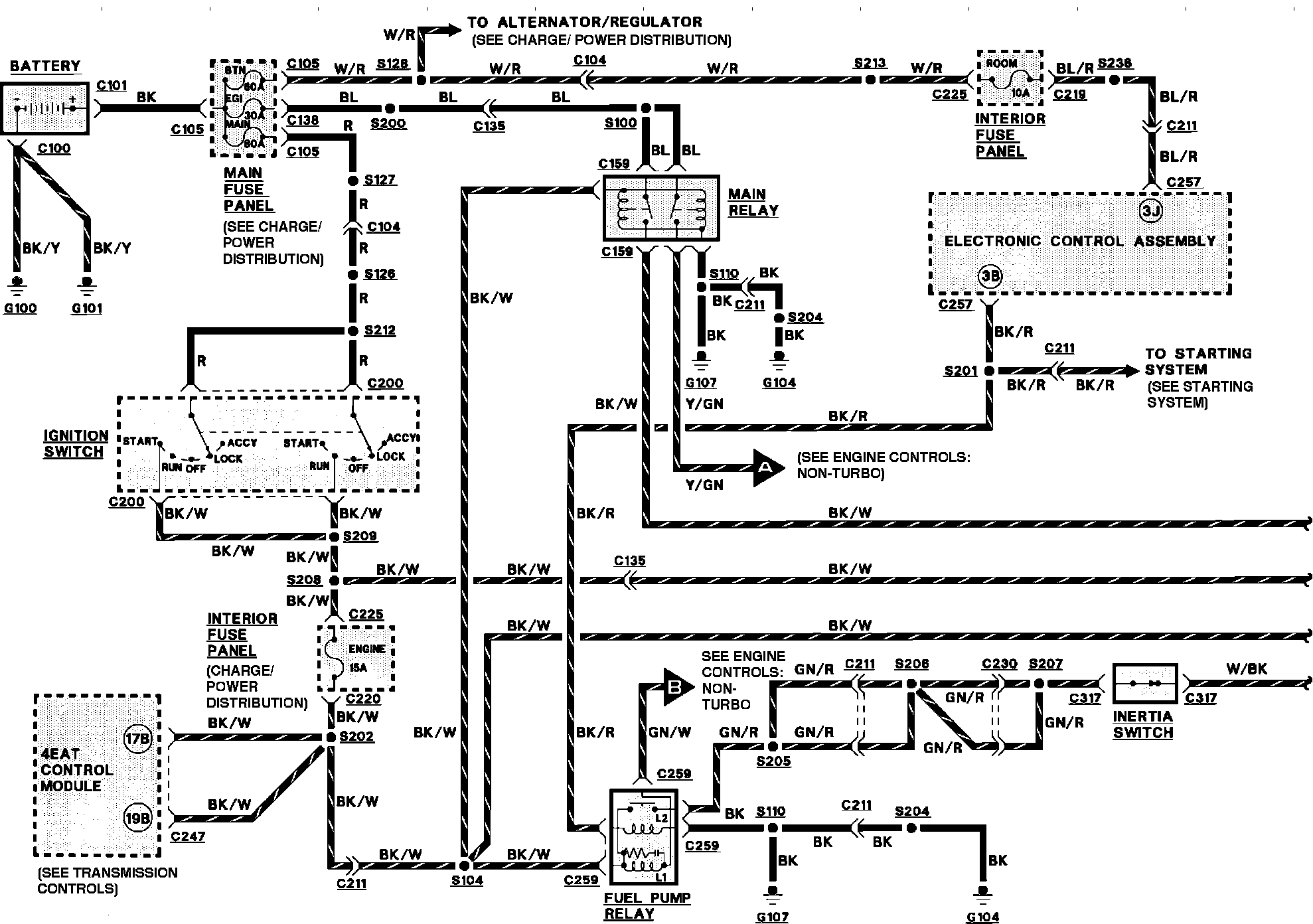

Engine Control. Non-Turbo:

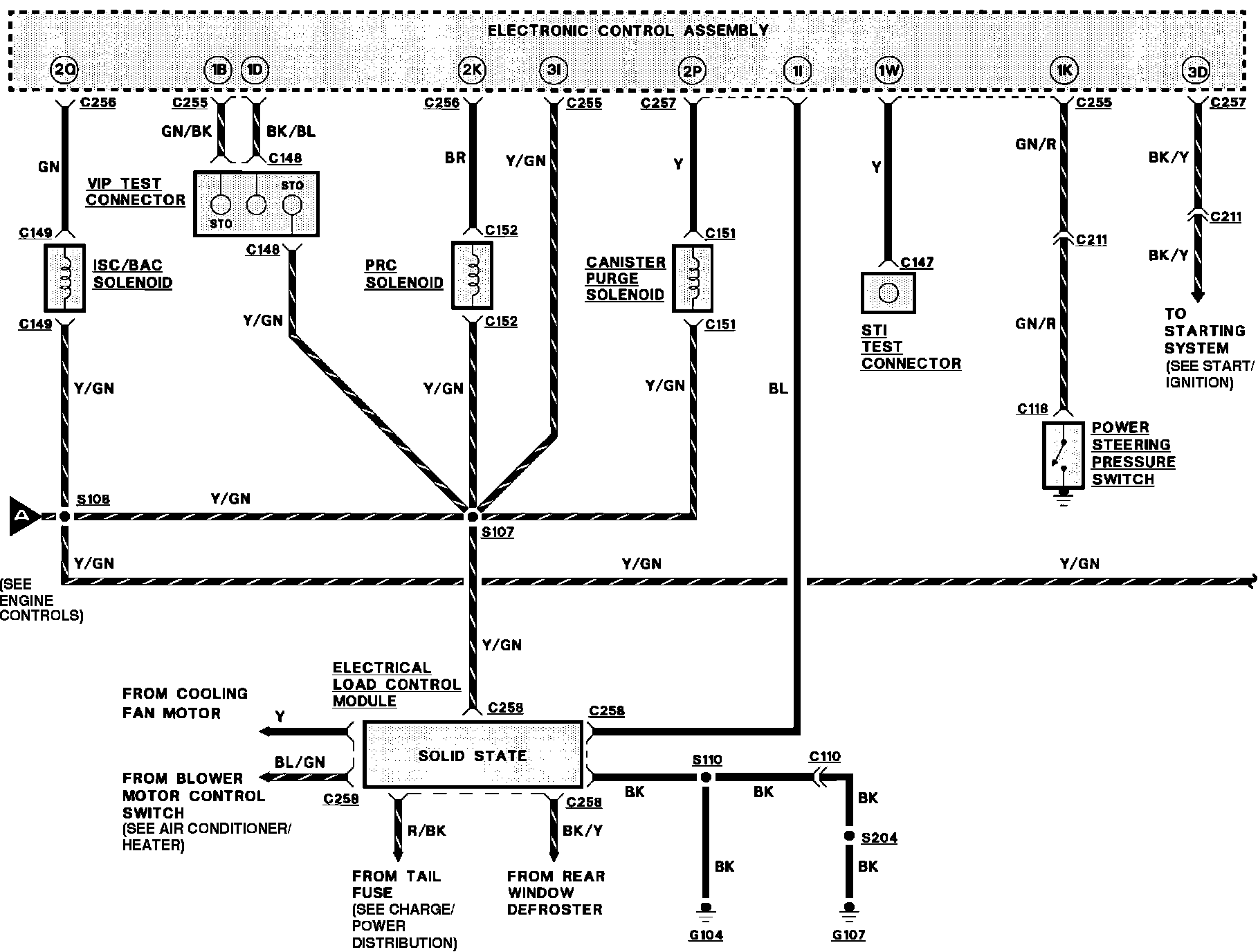

Engine Control. Non-Turbo:






Engine Control. Non-Turbo:
