Warning Chime or Voice Alert Wiring Circuit

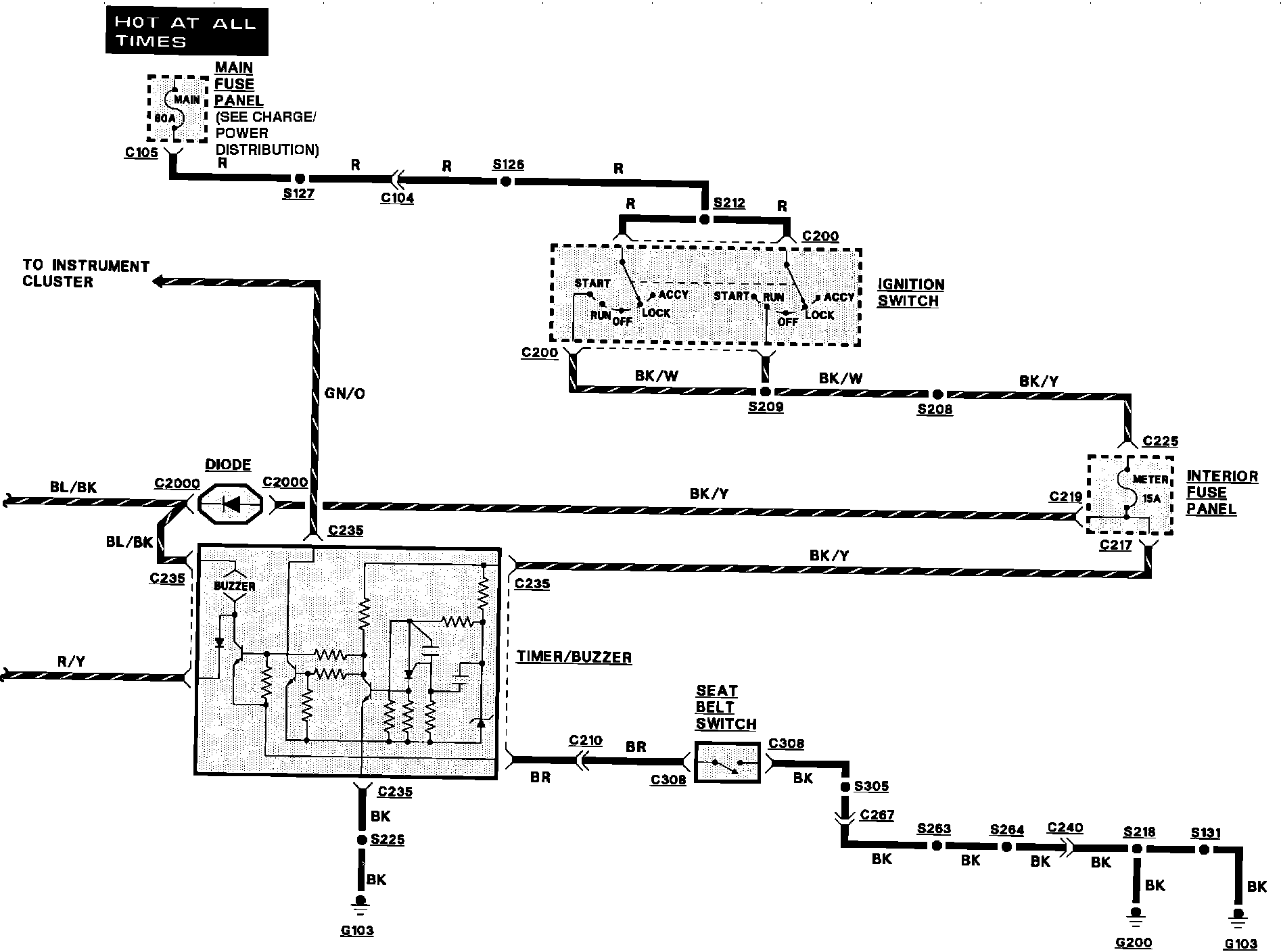

Warning Chimes. Timer/Buzzer:



Warning Chimes. Timer/Buzzer:
