7. Fitment of "B" Pillar Edge Protectors

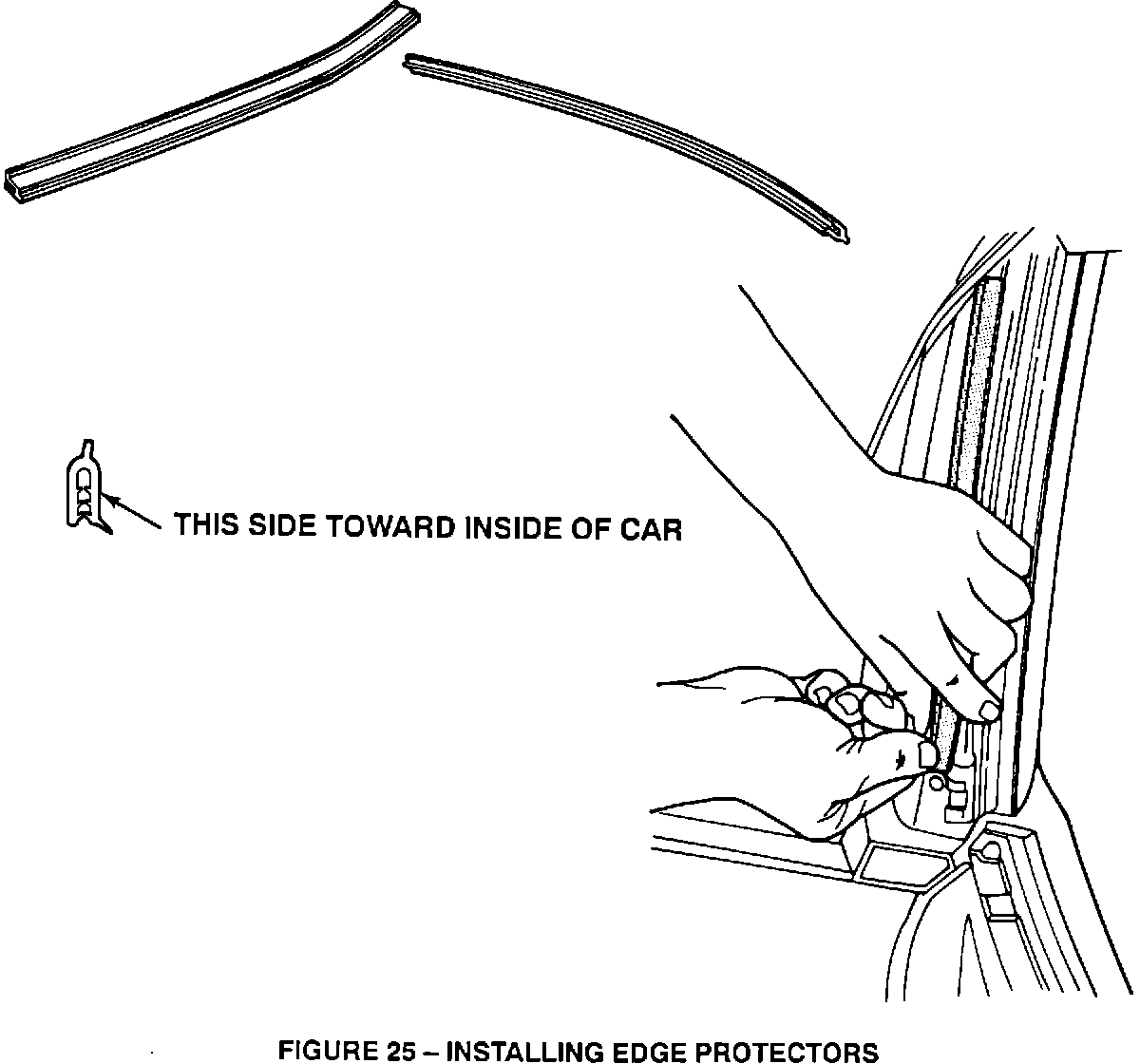

Fit an edge protector to the rear edge of the "B" pillars beginning at the bottom and working upwards. Refer to Figure 25.

NOTE:
"B" pillar edge protectors are a push on fit and self retain.

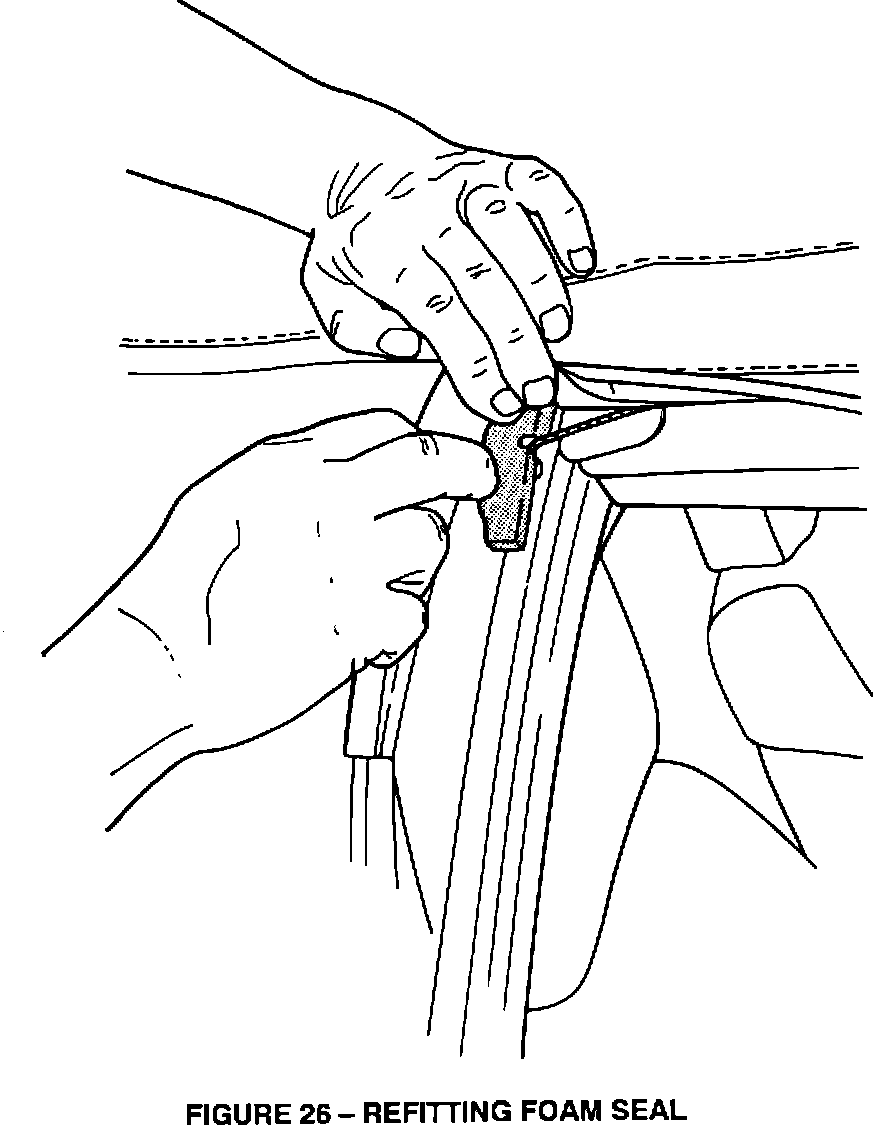

^ Refit new cable guide foam seal. Refer to Figure 26.

NOTE:
Repeat procedure for other side of vehicle. Attachment of the convertible top material is described later at an appropriate point.
