2. Rework of Number 4 Bow Cover and Webbing Retainer

^ Remove the number 4 bow cover from the convertible top.

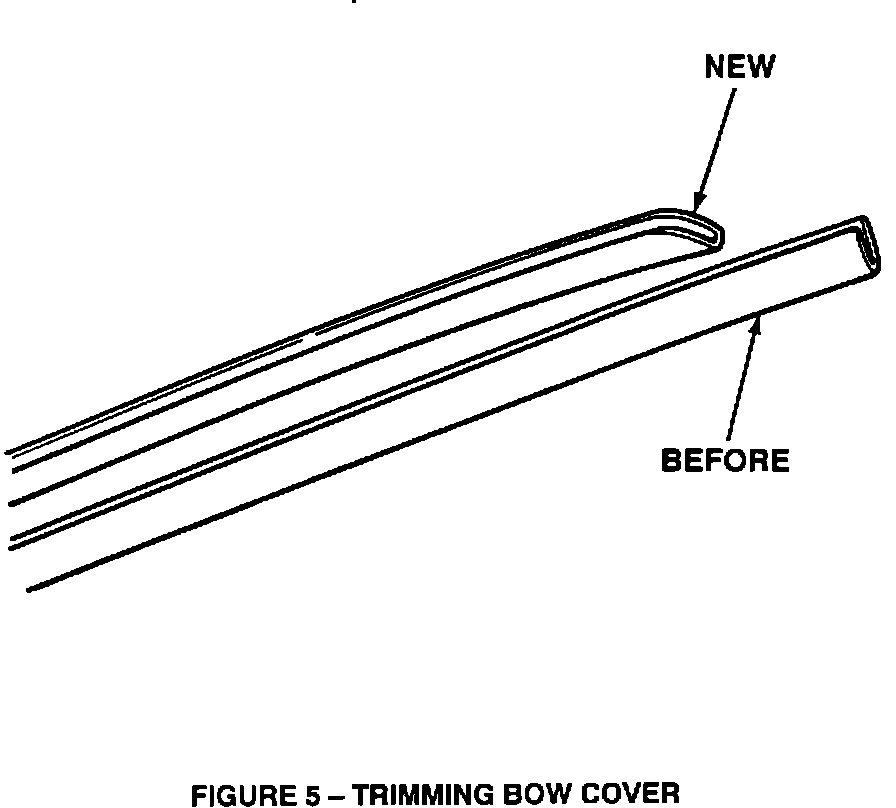

^ With scissors or similar remove 2-1/2 inches (60 mm) of retainer from one end of the bow cover. Refer to Figure 5.

^ Radius all four corners of the bow cover to remove any sharp edges.

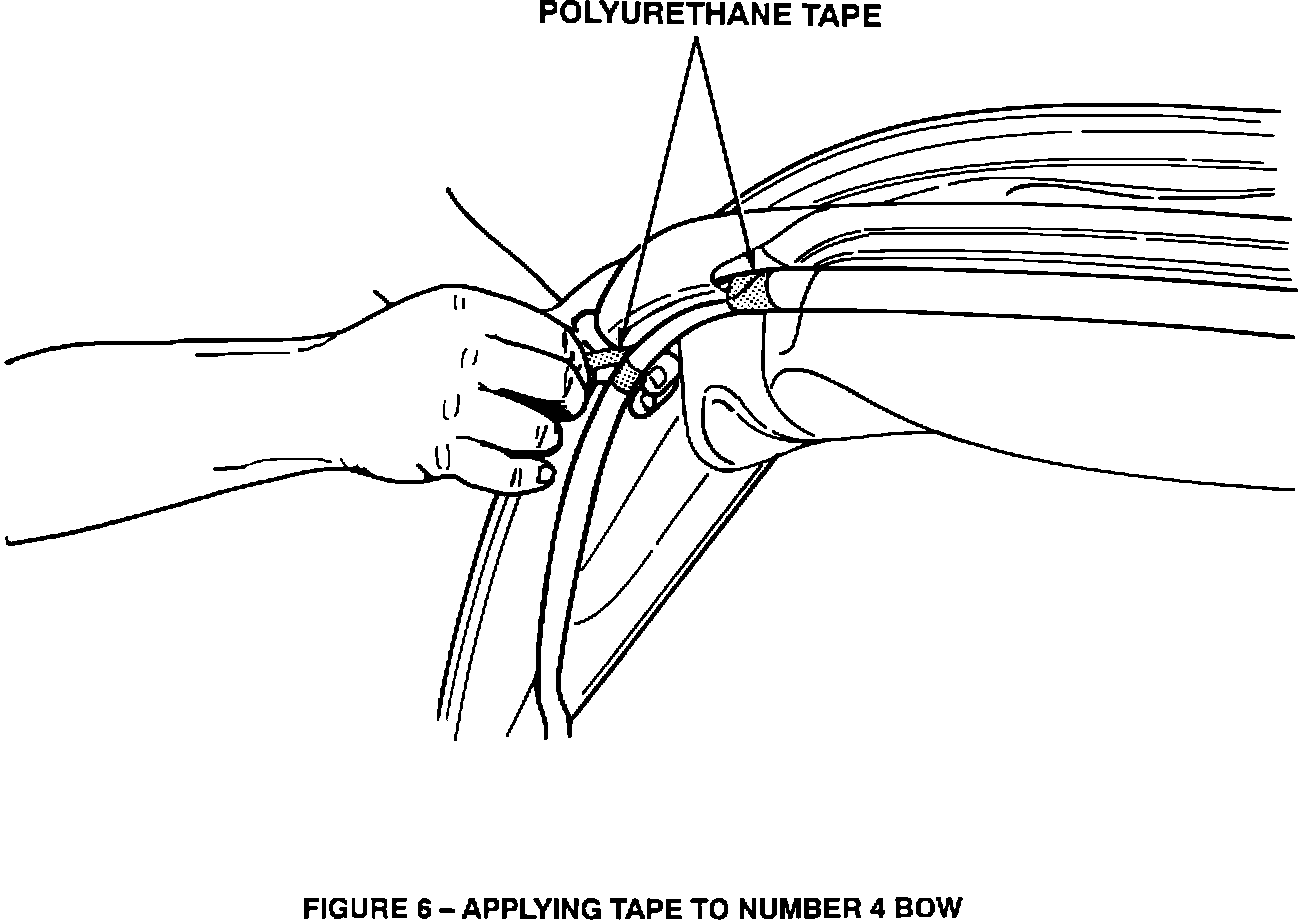

^ While bow cover is removed, apply polyurethane tape (2.25 in x 0.75 in) to cover the edges of the two webbing retainers (one on right side and one on left side of top) by wrapping it around the number 4 bow after removing any foam tape in the area. Refer to Figure 6.

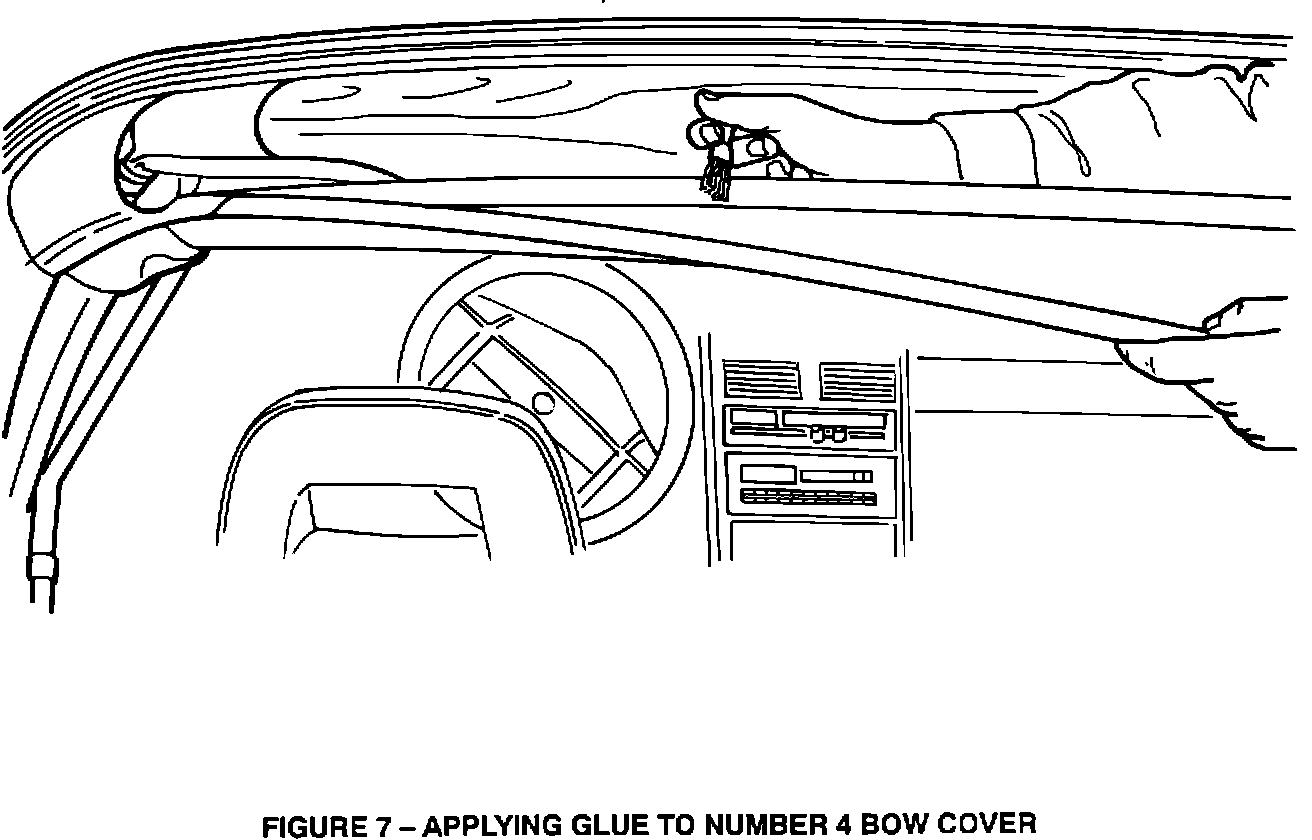

^ Refit the number 4 bow cover applying glue to retain. Refer to Figure 7.
