Softtop Shingle Adjustment

^ Raise the convertible top.

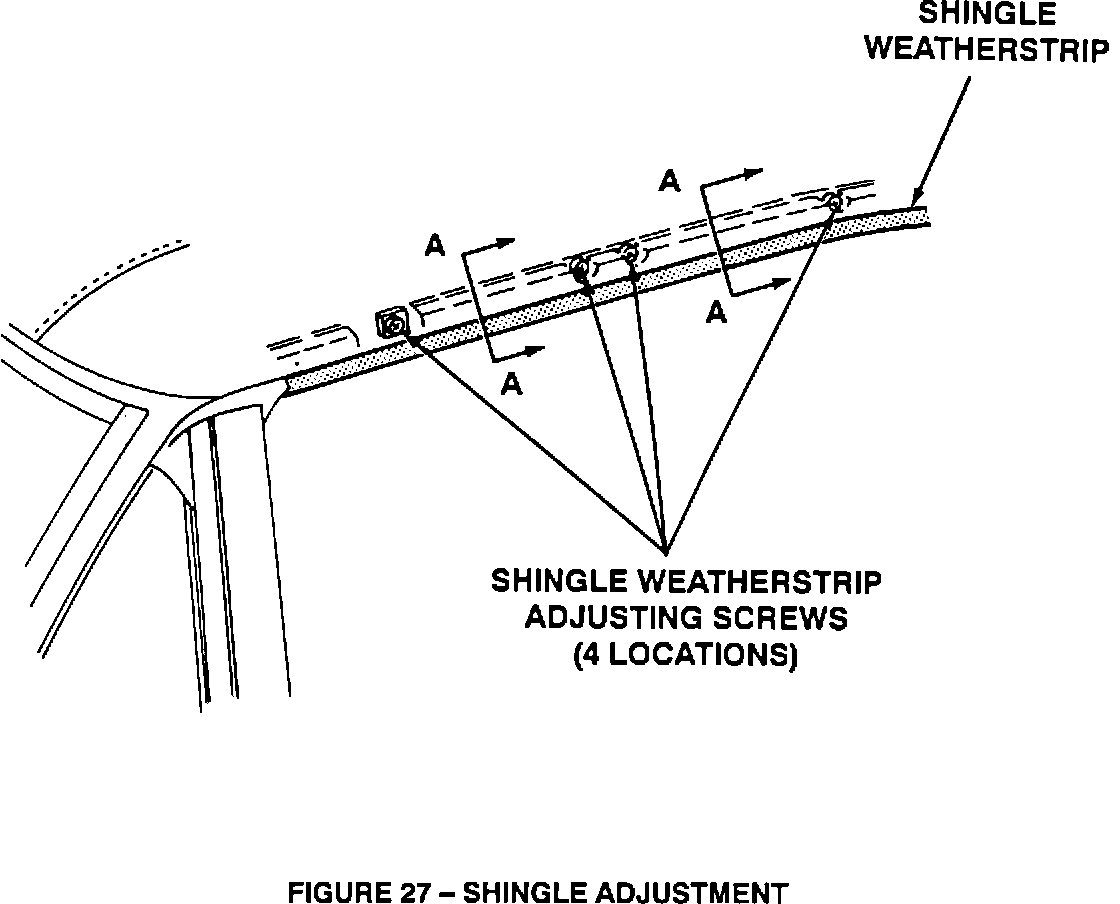

^ Refer to Figure 27. The shingle is adjustable in the vertical plane. A correctly located shingle is set as low as possible but will not contact the sliding window glass after the window has been raised and the door opened and closed.

To adjust -

^ Loosen the four retaining screws and position the shingle as required.

^ Tighten the retaining screws.
