^ CONVERTIBLE TOP - "RATTLES" & "SQUEAKS" FROM "B" PILLAR

^ NOISE - "RATTLES" & "SQUEAKS" FROM "B" PILLAR
Article No. 90-24-5
LINCOLN-MERCURY: 1991 CAPRI


ISSUE: "Rattles" and "squeaks" may come from the "B" pillar at the convertible top side tension wire attaching points. This is caused by movement of the "Z" link inside the pivot retainer.

ACTION: Apply silicone rubber over the side tension wire "Z" link to stop it from moving inside the pivot retainer. Refer to the following procedure for service details.

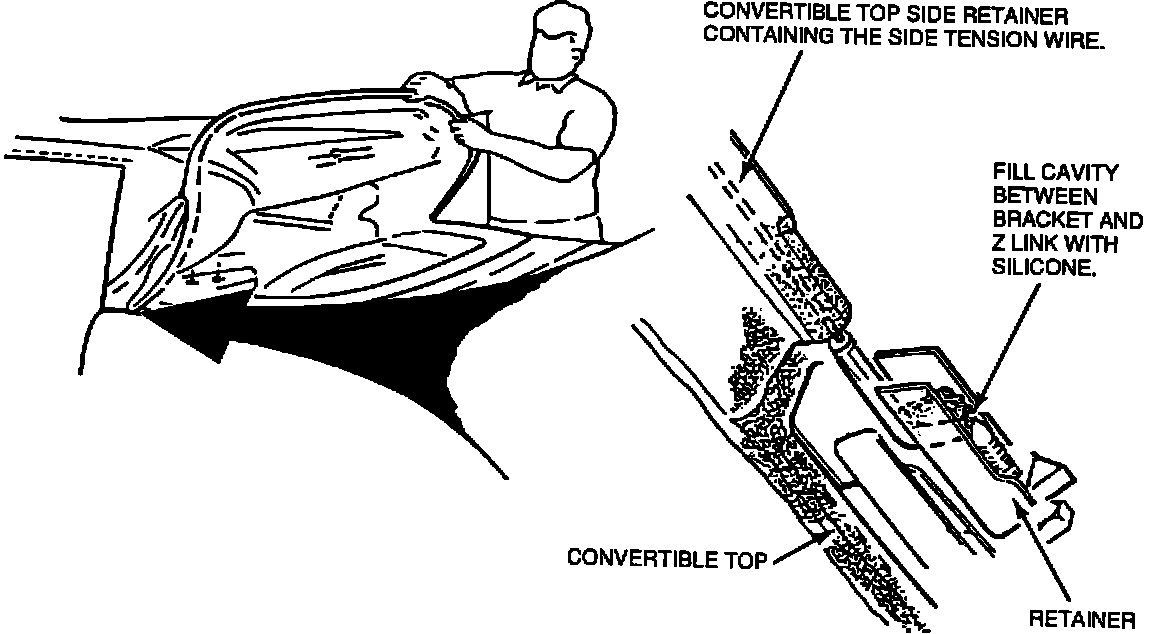

Figure 1:

1. Unhook the convertible top from the rear retainer and fold the rear section forward, Figure 1.
2. Fold back the convertible top side fabric to access the side tension wire "Z" link and pivot retainer.

3. Apply black silicone rubber over the "Z" link, Figure 1. Repeat this operation for the opposite side of the convertible top.

4. Attach the convertible top to the rear retainer.

5. Latch the convertible top, allowing the silicone rubber to cure with the side tension wires tight.

PART NUMBER PART NAME CLASS

D6AZ-19562-BA Silicone Rubber B
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: Eligible Under Basic Warranty Coverage
OPERATION DESCRIPTION TIME
902405A Apply Silicone Rubber - 0.4 Hr.
Both Sides
DEALER CODING
BASIC PART NO. CONDITION CODE
7041834 56
OASIS CODES: 105000, 702000
